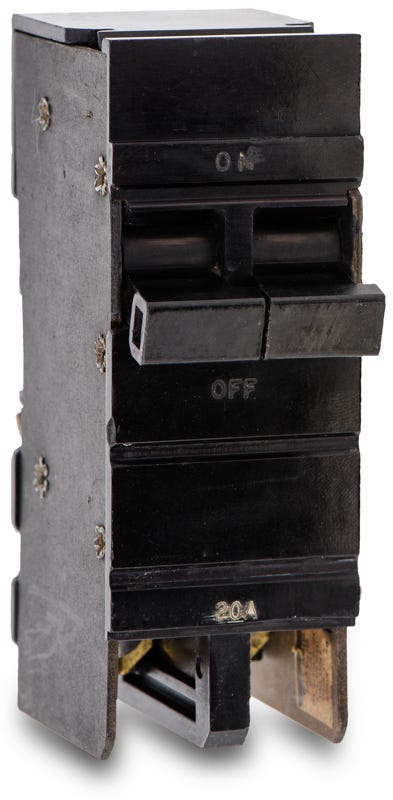

Square D XO220 Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Quantity
Square D XO220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D XO220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | XO220 |
| Series | XO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | XO |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D XO Load Centers, Cutler-Hammer XO Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Quantity
Square D XO220 - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | XO220-R |
| Series | XO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | XO |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D XO Load Centers, Cutler-Hammer XO Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Description
Designed to support existing electrical infrastructure, the Square D XO220 miniature circuit breaker delivers reliable thermal-magnetic protection for residential branch circuits. Engineered for seamless compatibility, it installs into obsolete Square D and Cutler-Hammer XO load centers. The classic plug-on mounting style allows for quick replacement of failing components. It features a 10kAIC interrupt rating at 120/240VAC and a common trip mechanism for safety.Specifications
| Brand | Square D |
|---|---|
| Part Number | XO220 |
| Series | XO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | XO |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D XO Load Centers, Cutler-Hammer XO Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhat load centers accept the XO220 circuit breaker?
The XO220 is engineered specifically for legacy Square D XO and Cutler-Hammer XO load centers. It will not fit modern QO or Homeline panels, as the XO frame utilizes a unique plug-on mounting configuration.
Can the Square D XO220 replace a Cutler-Hammer XO breaker?
Yes. Square D originally developed the XO series in the 1950s and later sold the manufacturing rights to Cutler-Hammer. As a result, XO breakers from both brands share the same physical footprint and are fully interchangeable in XO load centers.
Can the XO220 be used for dedicated 120V single-pole circuits?
No, the XO220 is a 2-pole breaker designed for 240V or 120/240V applications. For dedicated 120V single-pole circuits, a 1-pole breaker like the XO120 is required.
What type of trip mechanism does the XO220 use?
It utilizes a fixed thermal magnetic trip unit with long-time and instantaneous (LI) functions. This provides standard overload and short-circuit protection for 120/240VAC branch circuits up to its 10kAIC rating.
What wire gauges are compatible with the XO220 terminals?
The screw and clamp terminals on this 20A breaker accept wire sizes ranging from 14 AWG to 8 AWG.
Is the XO220 part of an active product line?
No, the XO frame is an obsolete legacy series. The XO220 is used strictly as a direct replacement component to service and maintain existing XO electrical panels, preventing the immediate need for a complete panelboard retrofit.
