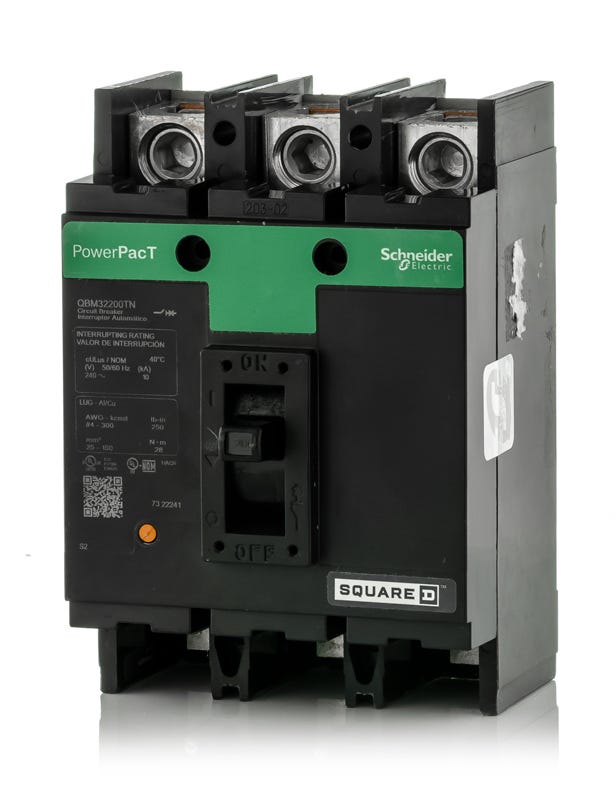

Square D QBM32200TN Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
QBM32200TN
Molded Case Circuit Breaker
Brand
Square D
SKU
QBM32200TN
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBM32200TN - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
A robust solution for commercial facilities, the Square D QBM32200TN is a 200A, 3-pole molded case circuit breaker offering dependable thermal-magnetic (LI) protection for 240VAC networks. This unit-mount breaker is compatible with NQ panelboards, switchboards, and individual enclosures. It effectively replaces the discontinued Q23200 model. It includes line-side lugs and a terminal nut kit. Rated at 10kAIC, the breaker features a common trip mechanism and a visual trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBM32200TN |
| Series | QBM |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBM |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | NQ Panelboards, NQOD Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line Side Lugs Included, Terminal Nut Kit |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
6 answersWhich panelboards are compatible with the QBM32200TN circuit breaker?
This Q-Frame breaker is designed for installation in Square D NQ and NQOD panelboards, as well as compatible switchboards and individual enclosures.
Which legacy Square D breaker does the QBM32200TN replace?
This PowerPacT Q-Frame breaker serves as a direct replacement for the discontinued Square D Q23200 circuit breaker, allowing for seamless upgrades in existing systems.
What does the TN suffix indicate on this Q-Frame breaker?
The TN suffix specifies the terminal configuration, indicating that the breaker is equipped with factory-installed studs on the load side (OFF end) for specialized connections.
How is the QBM32200TN mounted in a panelboard?
This is a unit-mount, bolt-on circuit breaker. It secures directly to the buswork of NQ or NQOD panelboards using bolted connections for a reliable, vibration-resistant installation.
Are the trip settings adjustable on the QBM32200TN?
No, this breaker features a fixed thermal-magnetic trip unit. The Long-Time and Instantaneous (LI) protection settings are factory-set and cannot be adjusted in the field.
Does the QBM32200TN include a visual trip indicator?
Yes, this breaker features a visual trip indicator that provides clear confirmation when the breaker has tripped, allowing for faster troubleshooting and safer maintenance.
