Square D IK36200G GFEP Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Quantity

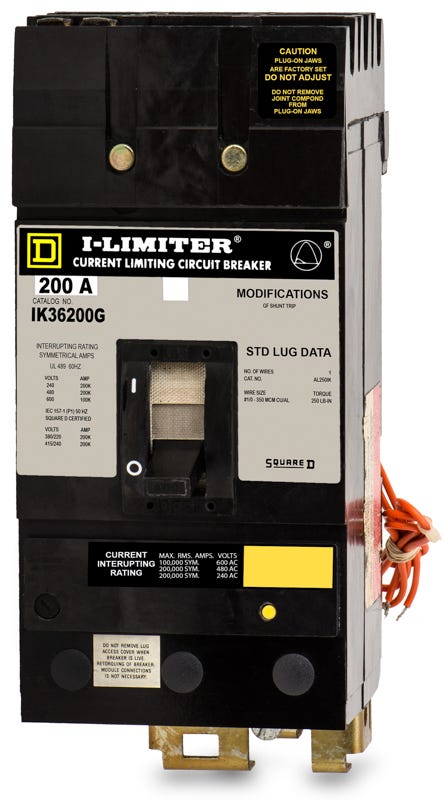

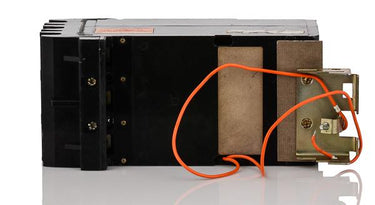

Square D IK36200G - 200A GFEP Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered for industrial applications, the Square D IK36200G is a 3-pole, 200A molded case circuit breaker providing long-time, instantaneous, and ground fault protection (LI+G). This K-Frame MCCB features an I-Line mounting style for installation into Square D I-Line panelboards. It is officially superseded by the KI36200G. Delivering a robust 200 kAIC at 480VAC, this current-limiting breaker handles severe faults and includes an adjustable magnetic trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | IK36200G-R |
| Series | IK |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
| Accessories | Load Side Lugs Included, Ground Fault Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Visual Trip Indicator |
| Special Features | Current Limiting |
Product FAQs
7 answersWhat type of panelboards are compatible with the IK36200G?

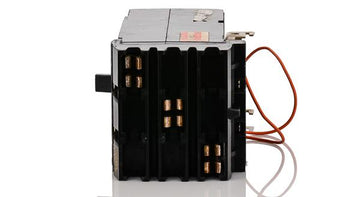

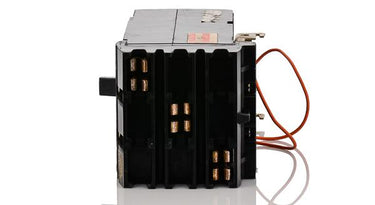

This breaker is specifically designed for Square D I-Line panelboards and switchboards. It features a plug-on line-side connection that mounts directly to the I-Line bus stack.
What does the G suffix mean in the IK36200G catalog number?
The G designates Ground Fault Equipment Protection (GFEP). In addition to standard thermal-magnetic protection, it includes an integrated ground fault module to detect and clear low-level arcing faults, protecting equipment from damage.
Is the Square D IK36200G considered a current-limiting breaker?
Yes, the IK series is a current-limiting K-Frame circuit breaker. It is engineered to clear severe short circuits extremely fast, offering a high interrupting capacity of 200kA at 240V and 480V, and 100kA at 600V.

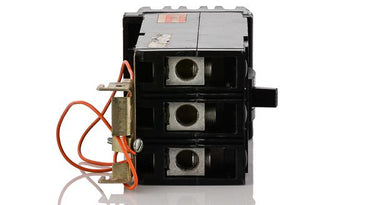

What wire sizes are supported by the load lugs on the IK36200G?
The factory-installed load lugs accept either copper or aluminum conductors ranging from 4 AWG to 350 kcmil. Ensure proper torque specifications are followed during installation.
Has the IK36200G been superseded by a newer model?
Yes, the IK36200G has been officially superseded by the KI36200G. The KI model provides the same 200A capacity, I-Line mounting, and current-limiting performance for your existing panelboard.
How is the IK36200G installed into the electrical system?
It uses an I-Line style plug-in connection. The line side of the breaker pushes directly onto the panel bus assembly, eliminating the need for line-side cables, while the load side connects via traditional mechanical lugs.
Are the trip settings adjustable on this 200A breaker?
The thermal (Long-Time) protection is fixed at 200 amps, but the magnetic (Instantaneous) trip function is adjustable. This allows electricians to fine-tune the short-circuit response based on the specific load requirements.
