Square D KA26200BC Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Quantity

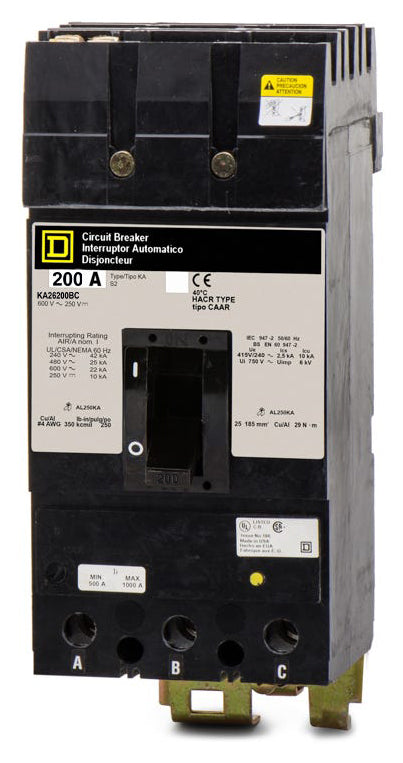

Square D KA26200BC - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KA26200BC - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26200BC-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D KA26200BC - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KA26200BC-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Designed with a B-C phase configuration, this thermal-magnetic breaker delivers reliable overcurrent protection. It features an adjustable magnetic trip and handles up to 600VAC, providing a 25kAIC interrupting capacity at 480VAC for demanding industrial environments. The plug-on unit installs into Square D I-Line panelboards and switchboards. It is a discontinued K-Frame model used to maintain existing infrastructure. For modern replacements, use the PowerPact J-Frame JGA262004.Specifications
| Brand | Square D |
|---|---|
| Part Number | KA26200BC-R |
| Series | KA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat type of panelboards is the KA26200BC compatible with?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on line connection and lug load terminals.
What does the BC suffix indicate on the KA26200BC?
The BC suffix indicates that this 2-pole breaker is factory configured for a B-C phase connection on the I-Line bus.
Is the KA26200BC still manufactured, or is there a modern replacement?
The KA frame is a discontinued legacy series. The direct modern replacement is the Square D PowerPact J-Frame, specifically catalog number JGA262004 for the 200A, 2-pole, B-C phase configuration.
Is the trip unit on the KA26200BC adjustable?
Yes. It features a thermal magnetic trip unit with a fixed thermal element for long-time protection and an adjustable magnetic element for instantaneous short circuit protection.
What wire sizes are accepted by the load lugs on this breaker?
The factory lugs accept aluminum or copper wire ranging from 4 AWG to 350 kcmil.
Can the KA26200BC be used in DC applications?
Yes, this breaker is rated for use in DC systems up to 250VDC, with an interrupting capacity of 10kAIC.
