Square D BJL36035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Square D
BJL36035
Molded Case Circuit Breaker
Brand
Square D
SKU
BJL36035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

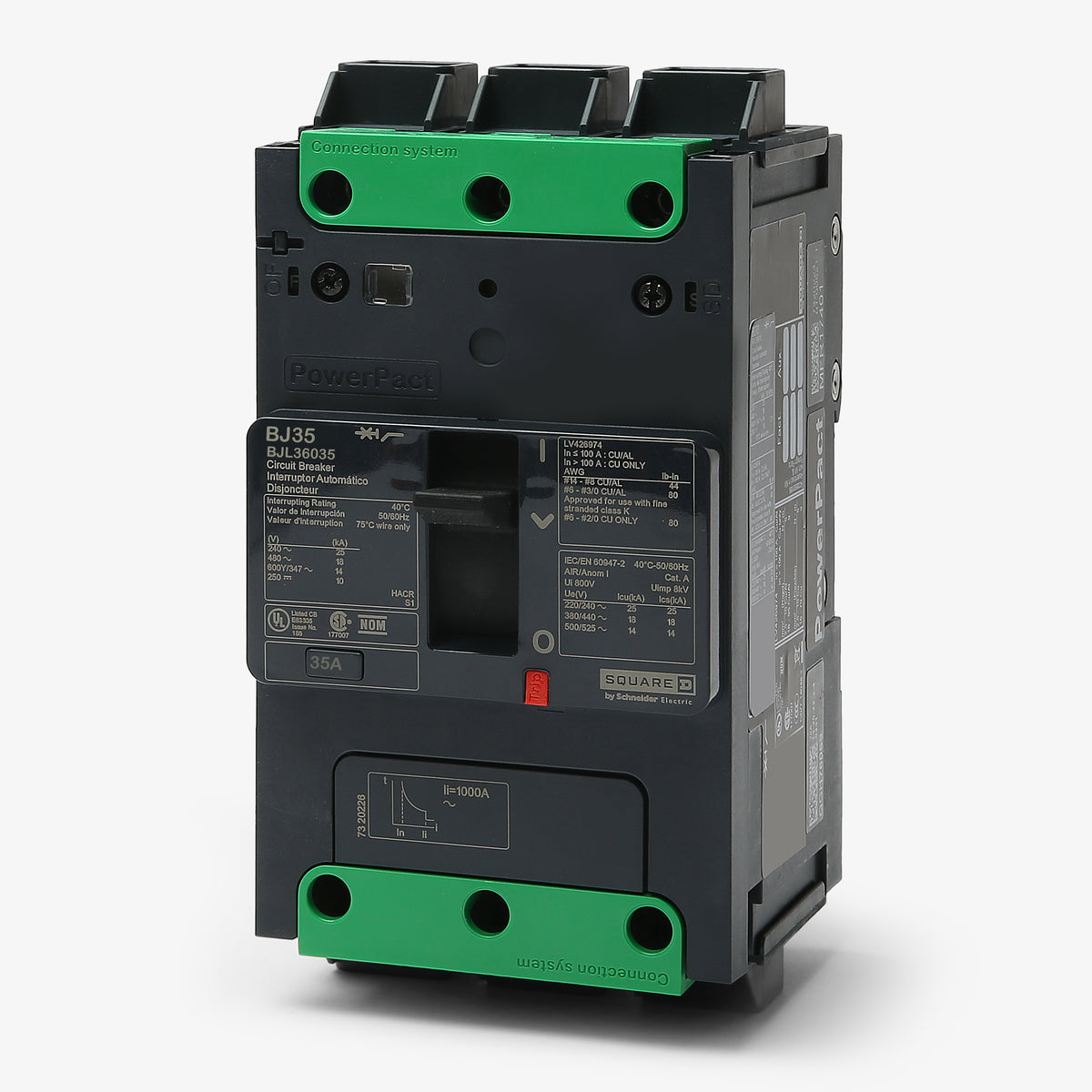

Square D BJL36035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
A modern solution for commercial applications, this 35A Square D MCCB brings advanced thermal-magnetic protection to industrial enclosures. It features a versatile unit-mount design that accommodates both traditional back pan and DIN rail installations, serving as an exact replacement for FCL36035 and FHL36035 breakers. Capable of handling 65 kAIC at 480V, the breaker incorporates EverLink lug technology to prevent thermal cycling from loosening bare cable terminations.Specifications
| Brand | Square D |
|---|---|
| Series | BJL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | BJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Enclosures, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | EverLink Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, 80% Rated, Mercury Free, PVC Free, RoHS Compliant, Double-Break Rotary Contact Structure |
Product FAQs

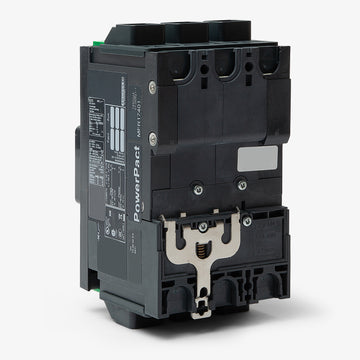

6 answersCan the BJL36035 be mounted on a DIN rail?
Yes, this unit-mount PowerPacT B-Frame breaker features integrated DIN rail mounting capability for standard 35mm rails, in addition to traditional back pan mounting with screws.
Which legacy Square D breakers does the BJL36035 replace?
The BJL36035 is a modern PowerPacT B-Frame replacement for discontinued legacy F-Frame breakers, specifically serving as a direct upgrade for the FCL36035 and FHL36035 models.

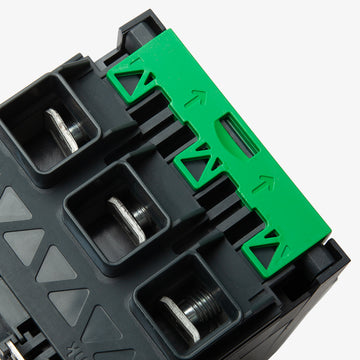

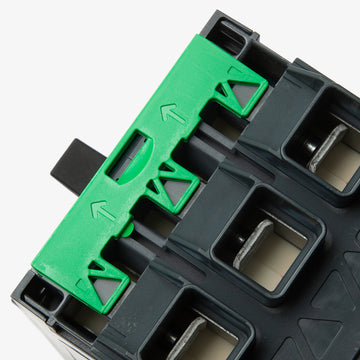

What is the advantage of the EverLink lugs on the BJL36035?
The patented EverLink lugs on both the line and load sides are designed to compensate for wire creep and thermal cycling. This ensures a tight, secure connection over time without the need for periodic retorquing.
Can the BJL36035 be installed in a Square D I-Line panelboard?
No, the BJL36035 is a unit-mount breaker with lugs on both the line and load ends. It does not have the plug-on jaw connections required for I-Line panelboards and switchboards.
What does the J in the BJL36035 catalog number signify?
The J indicates the breaker's specific interrupting rating tier within the PowerPacT B-Frame family, distinguishing it from the lower-rated D or G tiers. It delivers a breaking capacity of up to 100 kAIC at 240VAC and 65 kAIC at 480VAC.
What does the L in the BJL36035 part number indicate?
In the PowerPacT nomenclature, the L indicates that the breaker is configured with EverLink lugs on both the line and load sides for feed-thru, unit-mount installations.
