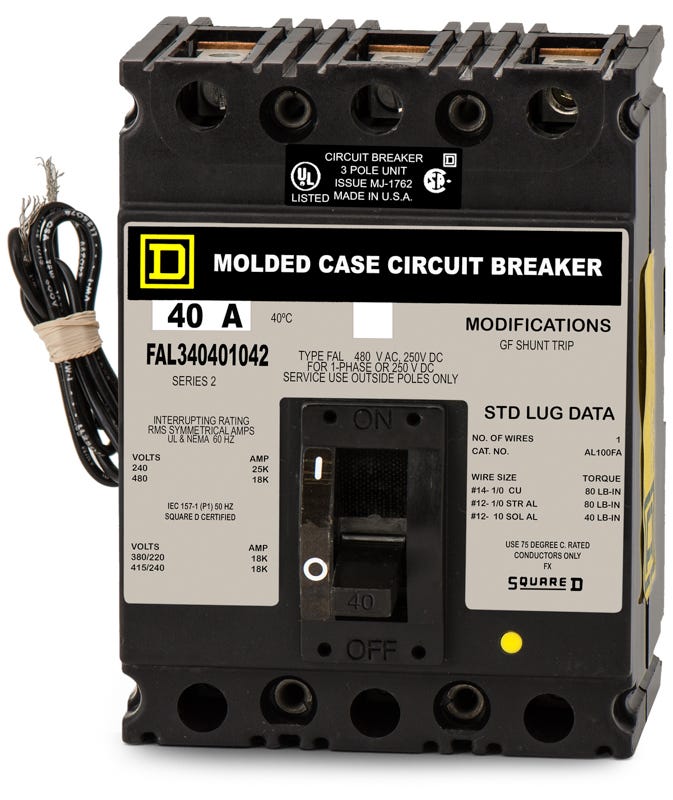

Square D FAL34040-1042 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Unit Mount
Quantity
Square D FAL34040-1042 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for heavy-duty power distribution, this 40A thermal-magnetic MCCB delivers long-time and instantaneous trip functions. It is designed to mount into standard Square D switchboards and industrial enclosures. This specific configuration includes a factory-installed 12-24VAC/DC shunt trip for remote tripping capabilities. While part of the legacy F-Frame family, it can be replaced by the HDL36040 when paired with an S29392 shunt trip accessory. Rated 18kAIC at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL34040-1042 |
| Series | FAL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (12-24VAC/DC), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, HID Rated |
Product FAQs
8 answersWhat does the -1042 suffix indicate on the FAL34040-1042 circuit breaker?
The -1042 suffix means this breaker includes a factory-installed 12V to 24V AC/DC shunt trip. This accessory allows the breaker to be tripped remotely by an external voltage signal, which is commonly used for emergency power-off (EPO) systems.
What is the modern replacement for the legacy FAL34040-1042 circuit breaker?
The FAL series is a legacy F-Frame breaker. The modern equivalent is the Square D PowerPact H-Frame series. You can replace this specific configuration with an HDL36040 circuit breaker paired with an S29392 shunt trip accessory.
Does the FAL34040-1042 plug onto a panelboard bus?
No, this is a unit-mount breaker. It must be individually mounted to a backpan or mounting plate using screws, and wired directly to the line and load side lugs.
Which panels and enclosures are compatible with the FAL34040-1042 breaker?
This unit-mount breaker is designed for use in standard Square D enclosures, switchboards, and industrial panelboards that are configured to accept F-Frame legacy breakers.
What type of protection does the LI trip unit provide?
The LI designation stands for Long-Time and Instantaneous. The fixed thermal element handles long-time overload protection, while the fixed magnetic element responds instantly to high-fault short circuits.
What wire sizes do the lugs on the FAL34040-1042 accept?
The line and load side lugs accept 14 AWG to 1/0 AWG copper wire, or 12 AWG to 1/0 AWG aluminum wire. Ensure proper torque specifications are followed during installation.
Does the FAL34040-1042 provide adequate interrupting capacity for 480V commercial systems?
It provides an 18kA interrupting capacity at 480VAC, which is suitable for many standard commercial applications. If installed on a 240VAC system, the interrupting capacity increases to 25kA.
Can the FAL34040-1042 be used in DC applications?
Yes, this thermal-magnetic breaker is rated for up to 250 VDC and provides a 10kA interrupting capacity at that voltage, making it suitable for specific industrial DC control circuits.
