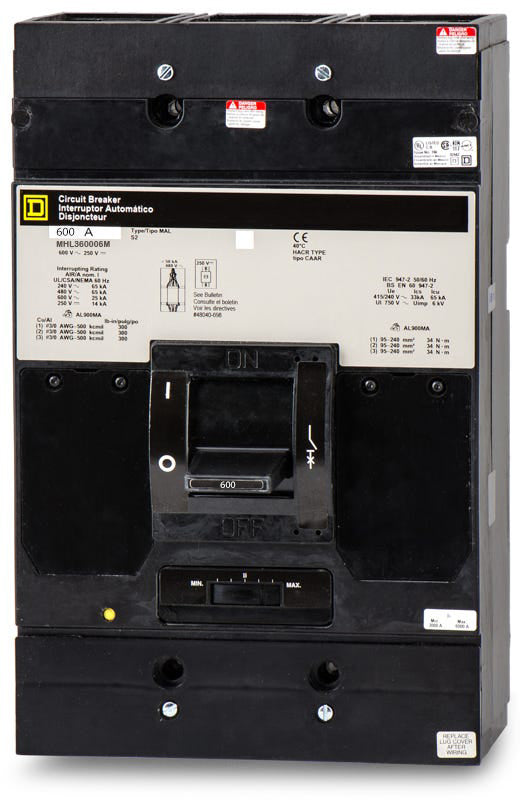

Square D MHL360006M - 600A 3 Pole Molded Case Switch
New
Quantity
Description
Designed for commercial and industrial applications, the MHL360006M is a 600A, 3-pole molded case switch from Square D. As a non-automatic disconnect, it provides manual switching and circuit isolation without thermal-magnetic overcurrent protection. This unit-mount switch installs into Square D switchboards and motor control centers. It serves as a replacement for legacy M-Frame installations and is replaced by the LJL36600U44X. Rated for 600VAC, it features a 65kAIC rating at 480V.Specifications
| Brand | Square D |
|---|---|
| Part Number | MHL360006M |
| Series | MHL |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC |
| Frame Type | MHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Non-Automatic (Disconnect) |
