Schneider Electric / Merlin Gerin 17467 Miniature Circuit Breaker
- 30A
- 3 Pole
- DIN Rail
Quantity

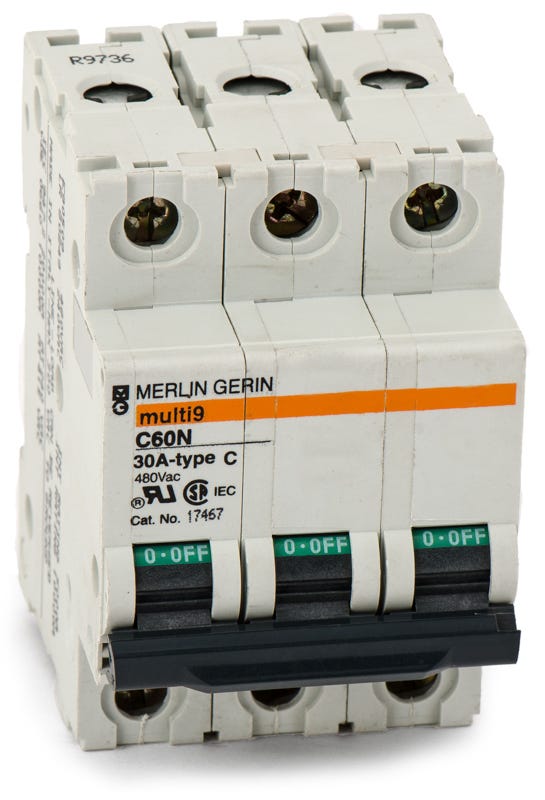

Schneider Electric / Merlin Gerin 17467 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Description
Built for demanding industrial environments, this 30A miniature circuit breaker offers robust overcurrent protection within the Multi 9 family. Designed for DIN rail mounting, the three-pole device integrates easily into modular enclosures and standard panelboards. For modern upgrades, this unit is replaced by the 32A M9F22332 breaker. It utilizes a C-Curve thermal-magnetic trip mechanism and includes a trip-free mechanism to ensure safety even if the handle is held.Specifications
| Brand | Schneider Electric / Merlin Gerin |
|---|---|
| Part Number | 17467 |
| Series | C60 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 480Y/277VAC, 415VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 480Y/277VAC, 10kA @ 415VAC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | DIN Rail Panels, Multi 9 Modular Enclosures |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | C |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077 |
| Approval | CCC, CSA, IEC, UL, UR, VDE |
| Temp Rating | -30C to 70C |
| Construction Features | Current Limiting, Trip-Free Mechanism |
Product FAQs
5 answersWhat is the recommended replacement for the discontinued 17467 circuit breaker?
Schneider Electric designates the M9F22332 (Multi 9 C60SP series) as the direct replacement. The replacement is rated for 32A to align with updated IEC standards, but it maintains the same DIN rail footprint and application suitability.
What trip curve does the 17467 breaker use?
This Multi 9 C60N breaker features a C-curve thermal-magnetic trip profile. It is designed to trip between 5 and 10 times the rated current, making it suitable for general commercial and industrial loads with moderate inrush currents.
What wire sizes are accepted by the terminals on the 17467 breaker?
The screw clamp terminals are designed to accept copper conductors ranging from 14 AWG to 2 AWG. Ensure proper torque specifications are followed during installation in the DIN rail panel.
Is the 17467 breaker compatible with standard residential load centers?
No. This is a DIN rail-mounted miniature circuit breaker designed specifically for Multi 9 modular enclosures and industrial control panels. It is not compatible with standard plug-on or bolt-on residential load centers.
Does the 17467 breaker feature a trip-free mechanism?
Yes, it incorporates a trip-free mechanism. This safety feature ensures the breaker will open the circuit during an overcurrent or short-circuit fault, even if the handle is physically held or locked in the ON position.
