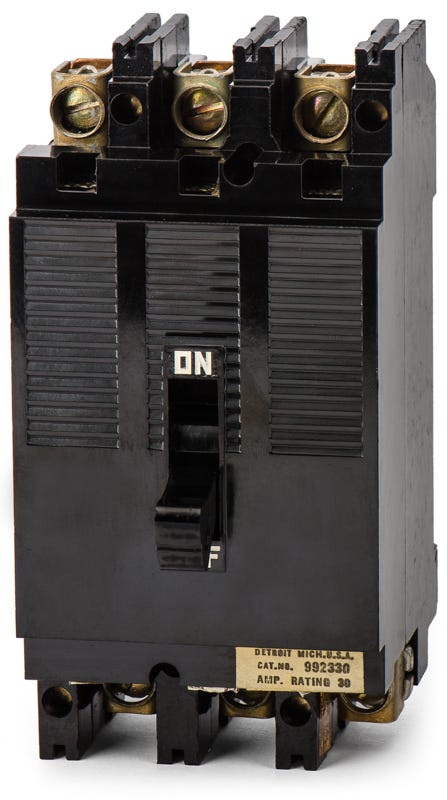

Square D 992330 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Quantity
Square D 992330 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered for commercial and industrial power distribution, the Square D 992330 is a 3-pole, 30-amp molded case circuit breaker from the 99 Series. It provides robust overcurrent protection for demanding electrical systems. This bolt-on MCCB installs into Square D Type ML panelboards, serving as an exact replacement for aging or failing ML Series components.Specifications
| Brand | Square D |
|---|---|
| Part Number | 992330-R |
| Series | 99 Series |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Type ML Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL, CSA |
| Temp Rating | 40°C |
| Construction Features | Type 992 |
Product FAQs
4 answersWhat panelboards are compatible with the Square D 992330?
This breaker is designed exclusively for legacy Square D Type ML panelboards. It provides an exact fit for facilities replacing discontinued ML Series components, allowing you to maintain existing infrastructure without a complete panel upgrade.
Can I install the 992330 in a Square D I-Line panelboard?
No. The 992330 utilizes a specific bolt-on mounting configuration for older Type ML panelboards. It is not compatible with I-Line plug-on systems, which largely replaced the ML series in industrial applications.
Is the Square D 992330 a current production model?
No, the 992330 is part of the obsolete 99 Series. It is typically sourced as a replacement part to service existing Type ML electrical panels that have been out of production for several decades.
What frame designation applies to the 992330 breaker?
The 992330 is built on the Square D Type 992 frame. This specific frame size and bolt-on configuration is required to properly align with the busbars in legacy Type ML panelboards.
