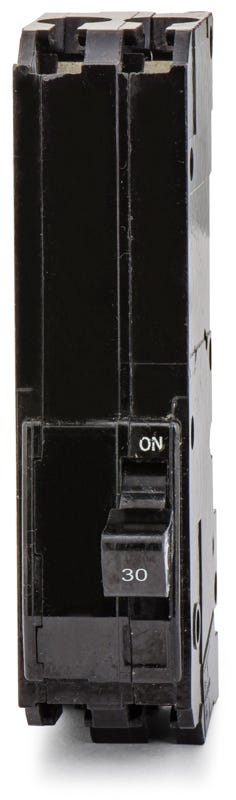

Square D A1B230 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Quantity
Square D A1B230 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the legacy A1B series, this 30A, 2-pole molded case circuit breaker delivers reliable thermal-magnetic protection for commercial environments. It is designed to handle 240VAC loads with a 10kAIC interrupting rating. This bolt-on unit installs into discontinued Square D NA1B panelboards. For modern upgrades, it can be replaced by a standard QOB230 breaker when paired with a retrofit kit. The breaker features fixed long-time and instantaneous trip functions, plus a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | A1B230-R |
| Series | A1B |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | A1B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NA1B Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Long Body |
Product FAQs
4 answersWhich panelboards are compatible with the A1B230 circuit breaker?
The A1B230 is a legacy breaker designed specifically for older Square D NA1B panelboards. It features a long body and foot bolt design to match the bus configuration of these discontinued enclosures.
Is there a modern replacement for the discontinued A1B230 breaker?
Yes. You can substitute this legacy breaker with a standard Square D QOB230 breaker by utilizing a specialized retrofit kit. This allows you to safely install the newer breaker while maintaining your current NA1B enclosure.
How does the A1B230 mount into the panelboard?
It utilizes a bolt-on connection featuring a long body and foot bolt design to securely attach to the panelboard bus.
Does the A1B230 include a visual trip indicator?
Yes, this breaker features a Visi-Trip indicator, allowing you to quickly identify a tripped condition visually within the panelboard.
