Square D ECB24030G3 Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Quantity

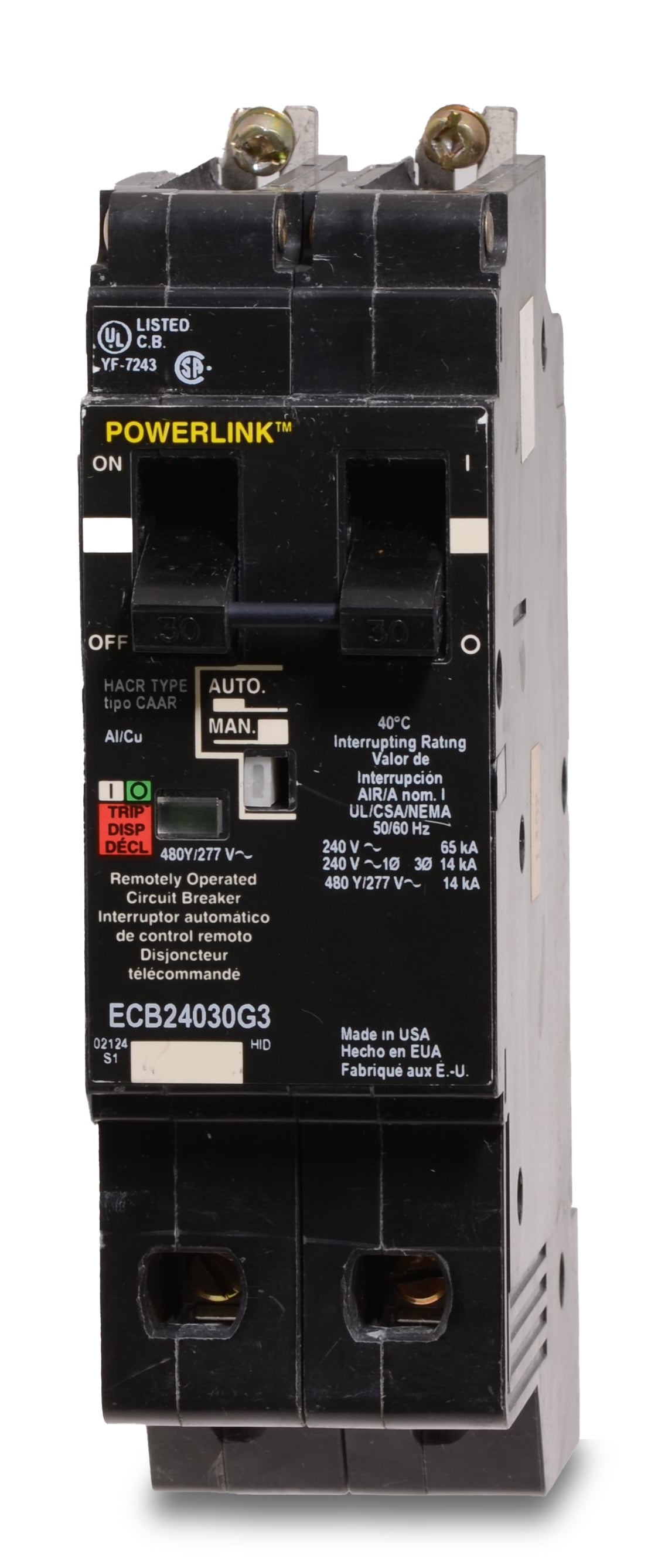

Square D ECB24030G3 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D ECB24030G3 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | ECB24030G3 |
| Series | ECB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | ECB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Powerlink G3 Lighting Control System |
| Wire Gauge | 12-8 AWG (Al), 10-8 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 12 AWG (Al), 10 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Remotely Operated, HACR Rated, HID Rated, Visual Trip Indicator |
Quantity
Square D ECB24030G3 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | ECB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | ECB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Powerlink G3 Lighting Control System |
| Wire Gauge | 12-8 AWG (Al), 10-8 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 12 AWG (Al), 10 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Remotely Operated, HACR Rated, HID Rated, Visual Trip Indicator |
Description
Designed for automated facility management, the Square D ECB24030G3 is a 30A, two-pole miniature circuit breaker. It features a built-in motor operator that allows for remote switching of commercial lighting circuits. The bolt-on breaker installs into Square D NF panelboards and Powerlink G3 systems. It features load side lugs that accommodate 12-8 AWG aluminum or 10-8 AWG copper wiring. Delivering a 14 kAIC rating at 480Y/277VAC, this unit is HACR and HID rated for specialized loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | ECB24030G3 |
| Series | ECB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Frame Type | ECB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Powerlink G3 Lighting Control System |
| Wire Gauge | 12-8 AWG (Al), 10-8 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 12 AWG (Al), 10 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Remotely Operated, HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the Square D ECB24030G3?
This breaker is designed for installation in Square D NF panelboards and Powerlink G3 lighting control systems. To utilize its remote switching capabilities, the panelboard must be equipped with a control bus strip.
How does the remote switching feature work on the ECB24030G3?
As a Powerlink G3 controllable circuit breaker, it includes a built-in motor operator. This allows it to combine the thermal-magnetic overcurrent protection of a standard breaker with the remote switching functions of a contactor or relay for automated facility management.
Is the ECB24030G3 suitable for commercial lighting and HVAC loads?
Yes, this breaker is both HID (High-Intensity Discharge) rated for commercial lighting circuits and HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does the ECB24030G3 require a special mounting configuration?
It utilizes a standard bolt-on connection for the power circuit in Square D NF panelboards, but it also requires a plug-in connection to the panel's control bus strip to enable its automated Powerlink G3 switching functions.
What is the UPC for the Square D ECB24030G3 circuit breaker?
The UPC for this Powerlink G3 controllable circuit breaker is 00785901437536.
