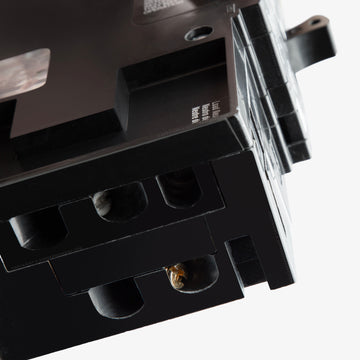

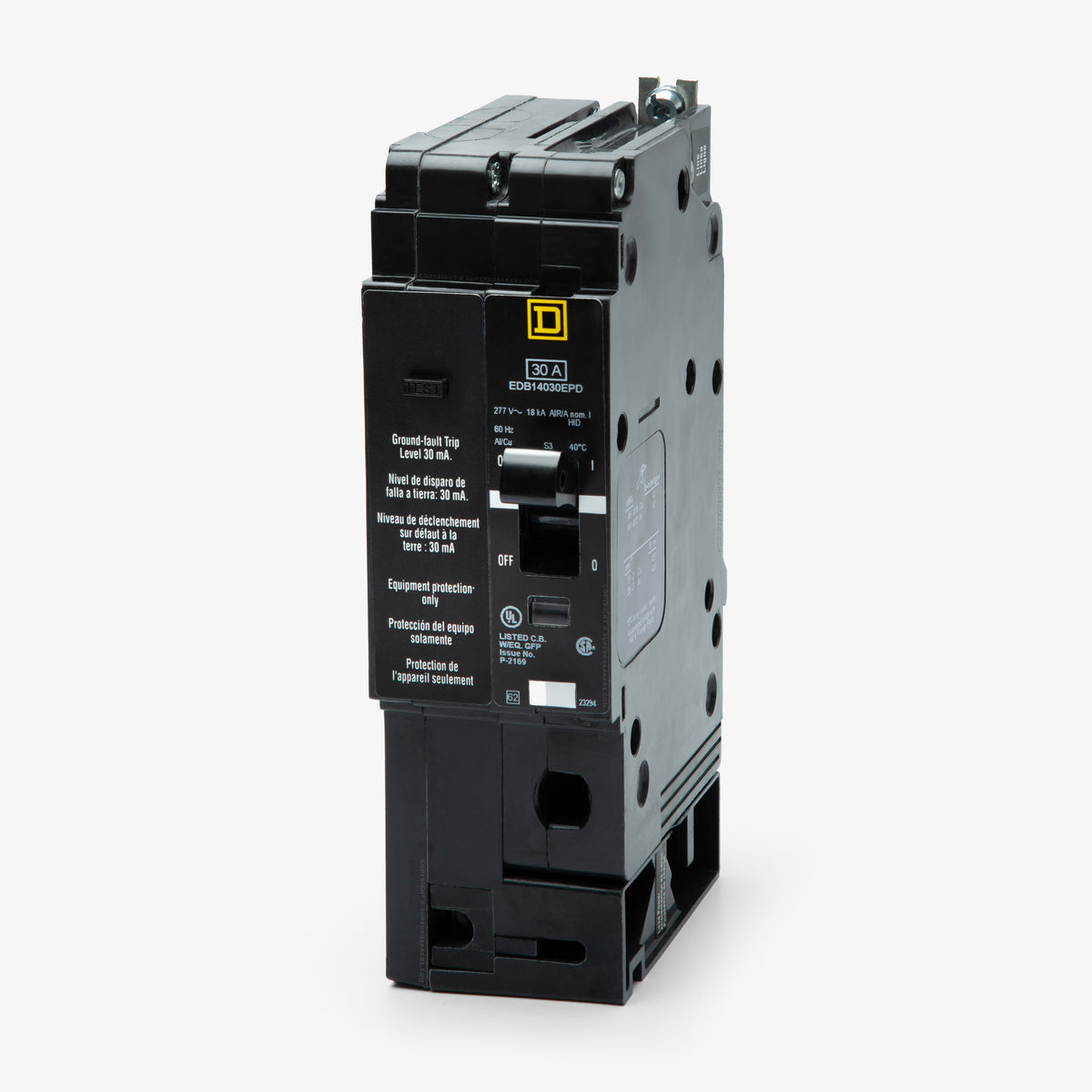

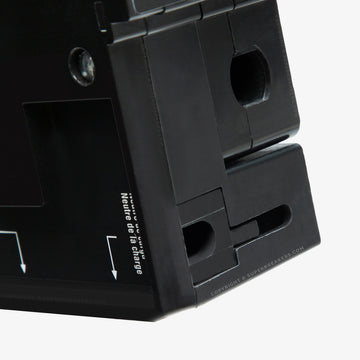

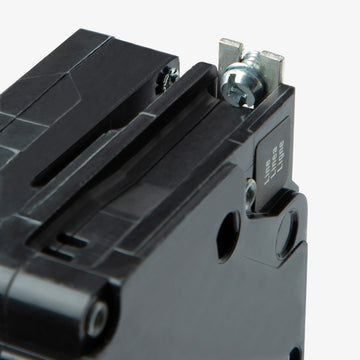

Square D EDB14030EPD GFEP Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Quantity
Square D EDB14030EPD - 30A GFEP Miniature Circuit Breaker
New
Quantity
Description
Rated for 30 amps at 277VAC, the EDB14030EPD provides specialized 30mA ground fault protection for commercial equipment. This single-pole breaker installs into Square D NF series panelboards using a reliable bolt-on mounting system. By utilizing a higher 30mA threshold rather than a 5mA personnel limit, it effectively mitigates nuisance trips on industrial motors and heating loads. The integrated Visi-Trip feature simplifies troubleshooting during maintenance checks.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB14030EPD |
| Series | EDB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 240VAC, 18kA @ 277VAC, 18kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Equipment Protection Device (30mA Ground Fault) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489, UL 1053 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
4 answersWhat is the ground fault trip sensitivity of the EDB14030EPD?
This Equipment Protection Device (EPD) features a 30mA ground fault trip threshold designed to protect machinery and prevent equipment damage.
Can the EDB14030EPD be used for personnel GFCI protection?
No. This breaker is rated strictly for equipment protection with a 30mA trip threshold. Personnel life safety requires a Class A GFCI breaker featuring a highly sensitive 5mA trip limit.
How is the neutral referenced for the EDB14030EPD ground fault circuitry?
The breaker is equipped with a factory-installed pigtail neutral. This wire must be properly landed on the panelboard neutral bar to complete the circuit for the internal ground fault detection system.
Can this E-frame breaker be installed in NQ or I-Line panelboards?
No. The EDB14030EPD bolt-on breaker is designed exclusively for Square D NF series panelboards. It is not physically compatible with NQ, QO, or I-Line chassis configurations.
