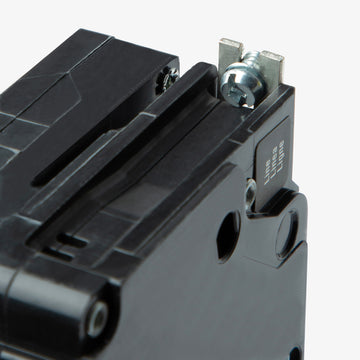

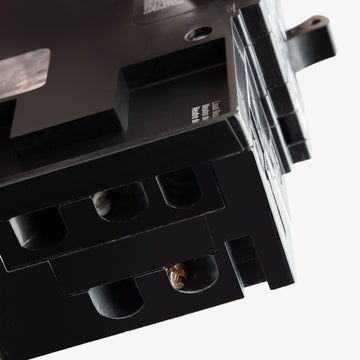

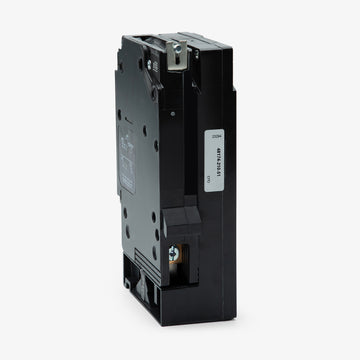

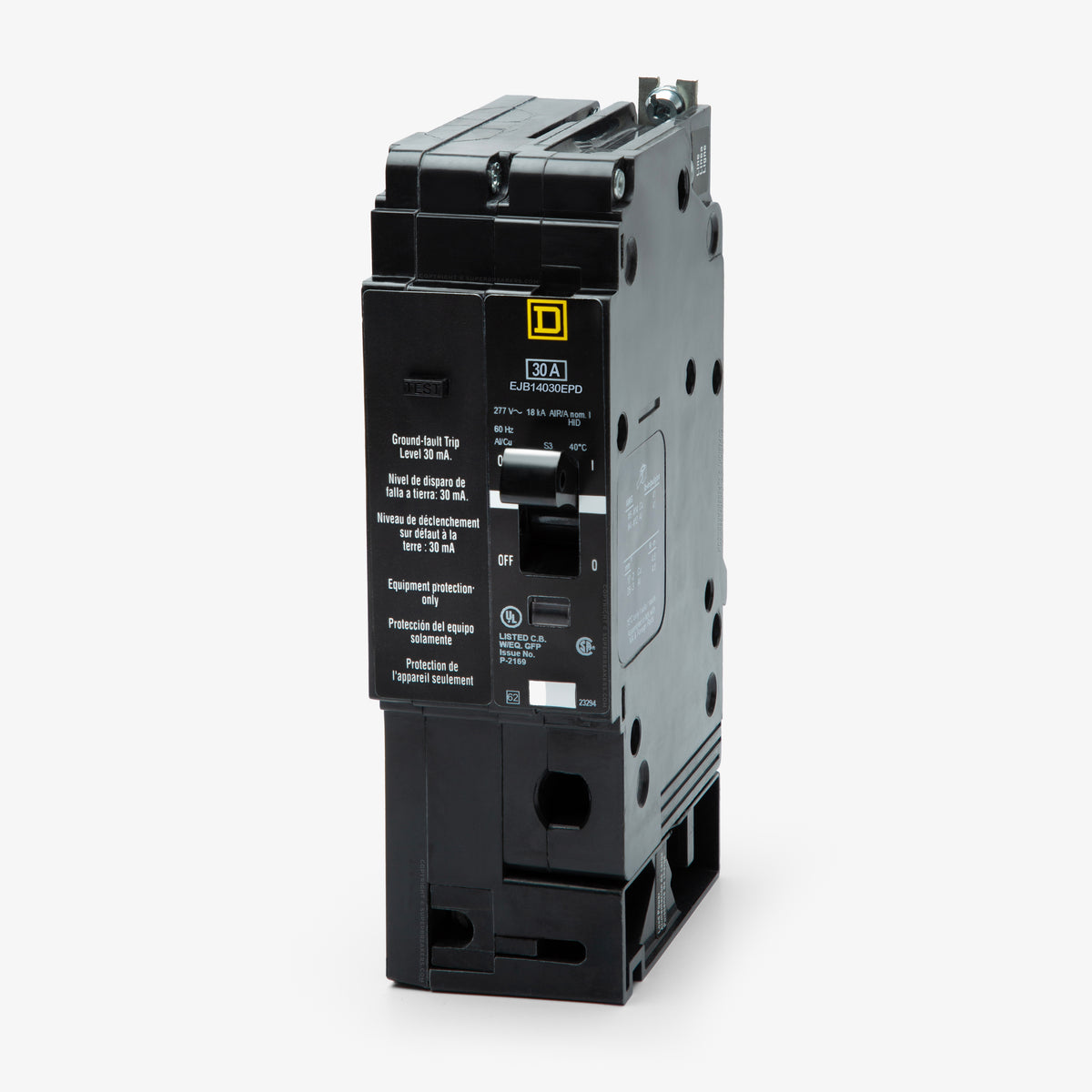

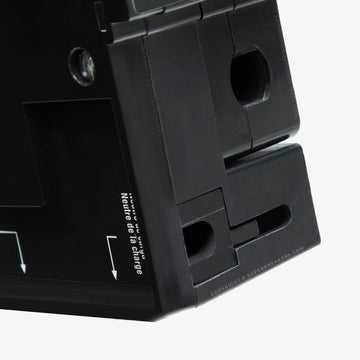

Square D EJB14030EPD GFEP Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Quantity
Square D EJB14030EPD - 30A GFEP Miniature Circuit Breaker
New
Quantity
Description
Engineered for commercial facilities, the Square D EJB14030EPD provides specialized 30mA ground fault equipment protection. This 30A, 1-pole breaker prevents electrical damage to industrial machinery by detecting low-level leakage currents. The device mounts into Square D NF panelboards using a secure bolt-on configuration. With an impressive 100kAIC rating at 120VAC, it handles severe fault conditions reliably. The breaker incorporates a Visi-Trip indicator and is HACR and HID rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB14030EPD |
| Series | EJB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, NEMA AB 1, UL 1053, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersHow much panel space does the EJB14030EPD require?
Although it is a 1-pole circuit breaker, it requires two pole spaces (1.96 inches wide) in the panelboard to accommodate the internal ground-fault circuitry.
What is the difference between this EPD breaker and a Class A GFCI?
This EPD (Equipment Protection Device) has a 30mA ground-fault trip threshold designed to protect equipment, such as heat trace cables, from damage. Class A GFCI breakers feature a highly sensitive 5mA threshold specifically required for personnel protection.
Which panelboards accept this E-frame breaker?
The bolt-on EJB14030EPD is engineered exclusively for use in Square D NF series panelboards.
How does the EJB frame compare to EDB and EGB breakers?
EJB models provide the highest interrupting ratings in the Square D E-frame family. They deliver 100kA at 120VAC and 65kA at 277VAC, whereas EDB and EGB breakers have lower fault-current withstand limits but share the exact same physical footprint.
How is the neutral connection handled on this breaker?
It is equipped with a pigtail neutral wire that must be tied directly to the panelboard neutral bar to power the internal ground-fault sensing equipment.
Can the EJB14030EPD replace lower-rated E-frame EPD breakers?
Yes. Because it utilizes the identical mounting footprint, this high-interrupting breaker can directly replace EDB14030EPD or EGB14030EPD breakers in applications requiring upgraded short-circuit ratings.
