Square D FAL22030-1021 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Unit Mount
Quantity

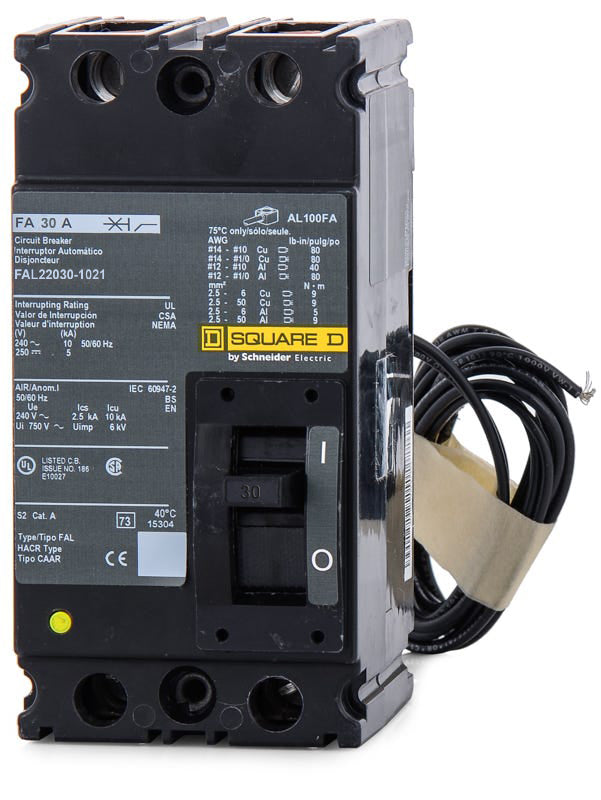

Square D FAL22030-1021 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the legacy F-frame series, the Square D FAL22030-1021 is a 2-pole, 30A molded case circuit breaker for commercial power distribution. This unit-mount breaker installs into Square D enclosures and switchboards. It is replaced by the newer PowerPact BDL26030 (requires shunt trip). Rated 10kAIC at 240VAC, it features fixed thermal-magnetic trip units. The "-1021" suffix denotes a factory-installed 120-240VAC shunt trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL22030-1021 |
| Series | FAL |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat does the -1021 suffix indicate on the FAL22030-1021 circuit breaker?
The -1021 suffix designates a factory-installed 120/240VAC shunt trip. This allows the breaker to be opened remotely via a control signal, which is commonly used for emergency stops or automated load shedding.
Can the FAL22030-1021 be installed in a Square D I-Line panelboard?
No. The FAL series features a unit-mount, lug-to-lug design intended for individual enclosures, switchboards, and control panels. It lacks the plug-on jaw connections required for I-Line bus systems.
How is the shunt trip wired on the FAL22030-1021?
The factory-installed shunt trip requires a separate 120VAC or 240VAC control power source. When the control circuit is energized, it activates the internal coil to mechanically trip the breaker.
How does the FAL22030-1021 indicate a tripped condition?
It features a Visi-Trip indicator. When the breaker trips due to an overcurrent or a shunt trip signal, the handle moves to a center position and a high-visibility red indicator appears in the window.
What enclosures are compatible with the FAL22030-1021?
This F-frame breaker is compatible with standard Square D circuit breaker enclosures designed for unit-mount F-frame breakers, as well as custom control panels and switchboards that support feed-thru lug mounting.
