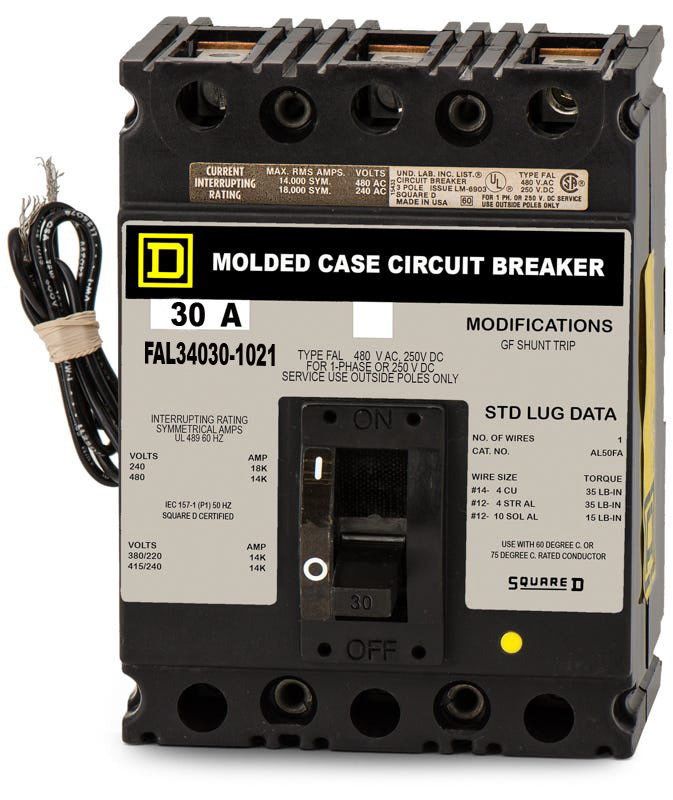

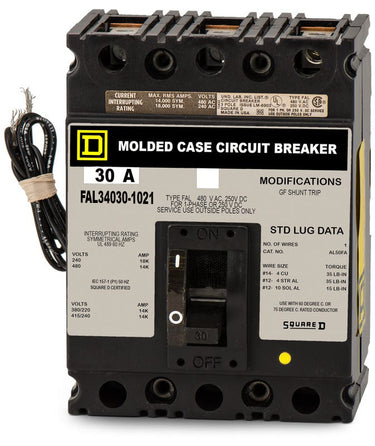

Square D FAL34030-1021 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
Quantity
Square D FAL34030-1021 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL34030-1021 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL34030-1021 |
| Series | FAL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL34030-1021 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL34030-1021-R |
| Series | FAL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Belonging to the legacy F-frame family, this 30-amp, 3-pole molded case circuit breaker delivers reliable thermal-magnetic protection for industrial facilities. The unit mounts into compatible Square D enclosures, switchboards, and motor control centers. For modern upgrades, it is replaced by the HDL34030. A factory-installed 120-240VAC shunt trip allows for remote tripping capabilities. It features an 18kAIC rating at 480VAC and includes standard line and load lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL34030-1021 |
| Series | FAL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC), Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the -1021 suffix indicate on the FAL34030-1021?
The -1021 suffix designates a factory-installed 120/240VAC shunt trip. This internal accessory allows the breaker to be tripped remotely using an external voltage signal.
Can I install the FAL34030-1021 in a Square D I-Line panelboard?
No. This is a unit-mount breaker designed to be hardwired into standard enclosures, switchboards, and motor control centers. It lacks the plug-on jaw connections required for I-Line distribution panels.
What is the modern replacement for the legacy FAL34030-1021?
The FAL series is a legacy F-Frame breaker. For modern panel upgrades, it is typically replaced by the PowerPact H-Frame HDL34030. If you migrate to the PowerPact series, you will need to add a compatible shunt trip accessory to replicate the -1021 functionality.
Are the line and load lugs included with this breaker?
Yes, this feed-thru breaker comes standard with lugs on both the line and load sides. The terminals accept 14 to 4 AWG copper or 12 to 4 AWG aluminum conductors.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the FAL34030-1021 features fixed thermal and fixed magnetic trip settings. The long-time and instantaneous trip points cannot be modified in the field.
Does the FAL34030-1021 provide ground fault equipment protection?
No. This breaker features standard thermal-magnetic trip units with long-time and instantaneous (LI) functions for overload and short-circuit protection. It does not provide ground fault or arc fault protection.
