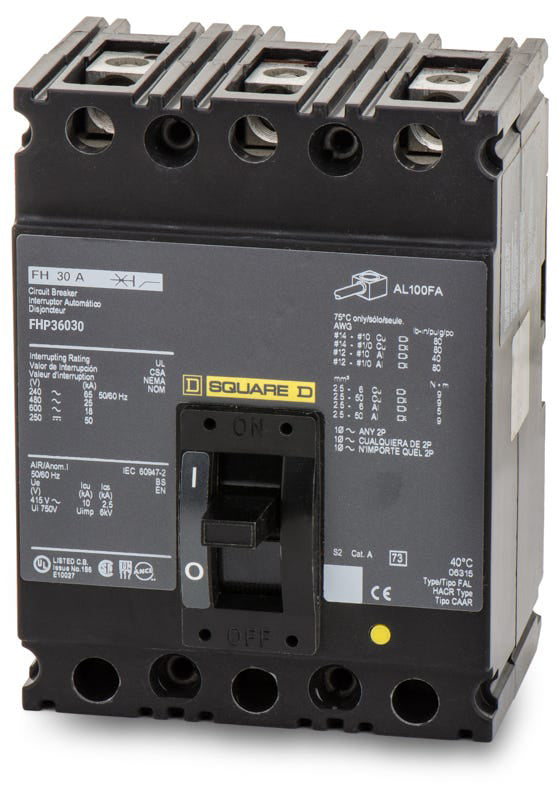

Square D FHP36030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Quantity
Square D FHP36030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FHP36030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHP36030 |
| Series | FHP |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Panelboards, Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Quantity
Square D FHP36030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | FHP |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Panelboards, Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Description
Designed for heavy-duty commercial applications, this 30A three-phase molded case circuit breaker features fixed thermal and magnetic trip elements. It fastens into legacy Square D panelboards and switchboards to provide reliable 600VAC and 250VDC circuit protection. The unit boasts a strong 65kA interrupting rating at 240V, making it suitable for high-fault environments. For modernizing older systems, this legacy F-frame component is officially replaced by the newer HGL36030 model.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHP36030 |
| Series | FHP |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Panelboards, Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhat panels are compatible with the Square D FHP36030?
This bolt-on circuit breaker is designed for legacy Square D panelboards, switchboards, and individual enclosures that accept F-frame unit-mount breakers. It is not compatible with I-Line panelboards.
Is the Square D FHP36030 obsolete?
Yes, the FHP series is a legacy F-frame breaker and is no longer manufactured. For modernizing older systems, it is officially replaced by the newer PowerPact H-frame series, specifically the HGL36030.
What is the difference between the FHP and FAL series breakers?
The FHP series features a higher interrupting rating than the standard FAL series. While the standard FAL36030 is rated for 14kA at 600VAC, the FHP36030 provides up to 18kA at 600VAC and 65kA at 240VAC for high-fault environments.
Are the trip settings on the FHP36030 adjustable?
No, this breaker features a fixed thermal magnetic trip unit. Both the long-time overload protection and instantaneous short-circuit protection points are factory set and cannot be adjusted in the field.
Can I install the FHP36030 in an I-Line panelboard?
No, the FHP36030 is a unit-mount, bolt-on circuit breaker. It lacks the plug-on jaw connections required for Square D I-Line panelboards.
