Square D HLL36030M71 Motor Circuit Protector
- 30A
- 3 Pole
- Unit Mount
Quantity

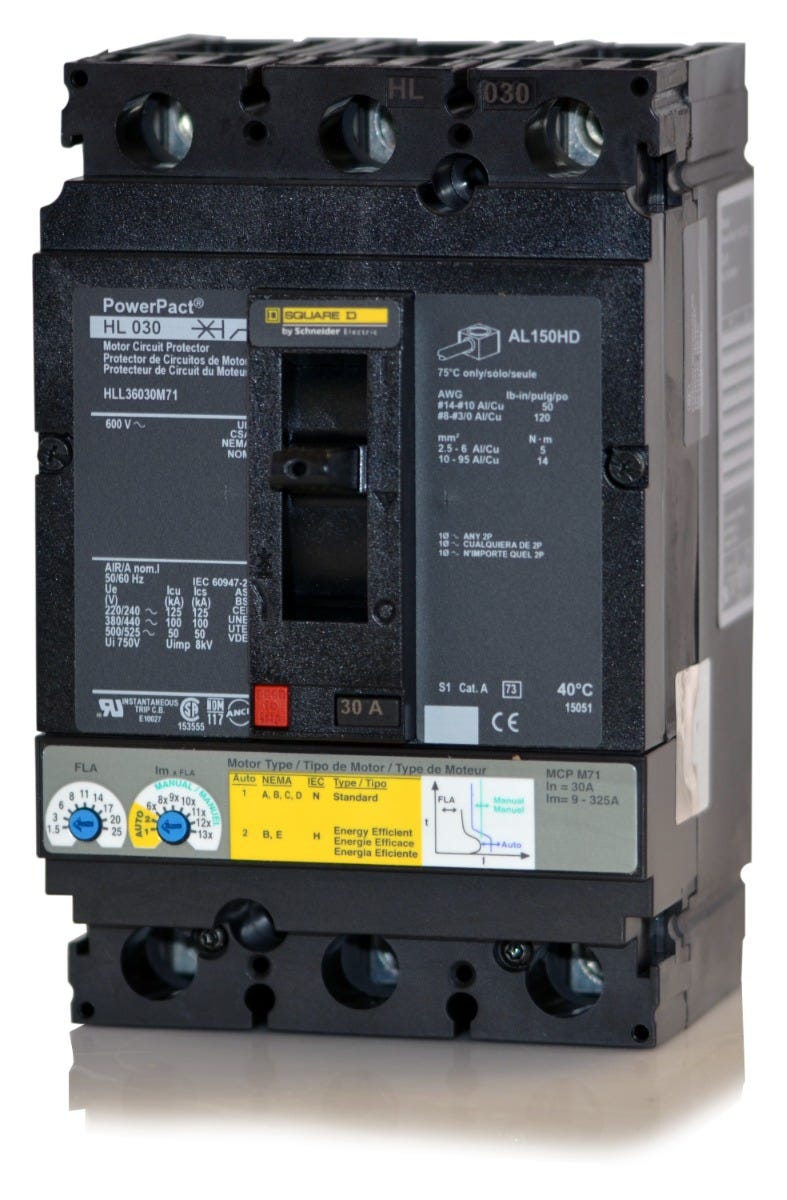

Square D HLL36030M71 - 30A 3 Pole Motor Circuit Protector
New
Quantity
Description
Built for demanding industrial environments, the HLL36030M71 provides 30A of magnetic-only protection for motor branch circuits. This PowerPacT H-Frame device focuses entirely on instantaneous short-circuit defense, coordinating seamlessly with external overload relays. Equipped with standard line and load lugs, this unit-mount protector integrates easily into motor starters and control centers. It boasts a high interrupting capacity of 100 kAIC at 480VAC and features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | HLL36030M71 |
| Series | HLL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC, 50kA @ 500VDC |
| Amperage Range | 9-325A |
|---|
| Frame Type | HLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Starters, Motor Control Centers |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Motor Circuit Protector, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
