Square D NC030 Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Quantity

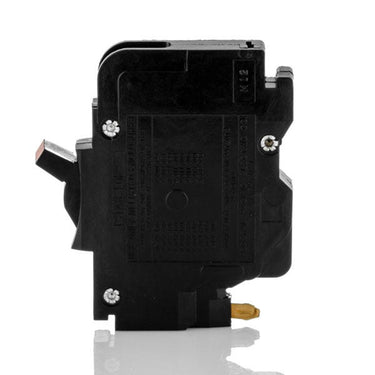

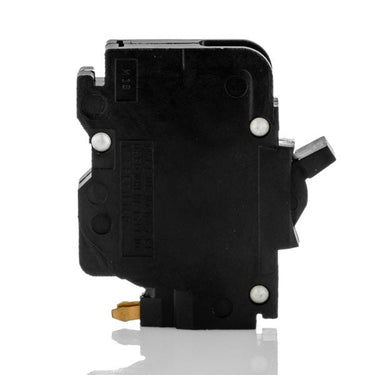

Square D NC030 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D NC030 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | NC030 |
| Series | NC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-lok Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | NC030-R |
|---|---|
| Standards | CSA C22.2 No. 5 |
| Approval | CSA |
| Temp Rating | 40C |
| Construction Features | Color Coded Handle (Green), Stab-lok System |
Quantity
Square D NC030 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | NC030-R |
| Series | NC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-lok Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | NC030-R |
|---|---|
| Standards | CSA C22.2 No. 5 |
| Approval | CSA |
| Temp Rating | 40C |
| Construction Features | Color Coded Handle (Green), Stab-lok System |
Description
A drop-in replacement for discontinued Federal Pacific Electric (FPE) and Federal Pioneer panels, the NC030 delivers modern overcurrent protection for older residential systems. This 30-amp, single-pole miniature circuit breaker features a 10kAIC interrupt rating at 120VAC and utilizes a standard thermal-magnetic trip mechanism. Manufactured by Schneider Electric/Square D, it installs into NC frame Stab-Lok load centers. The 1/2-inch thick plug-on design includes a green color-coded handle.Specifications
| Brand | Square D |
|---|---|
| Part Number | NC030 |
| Series | NC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-lok Load Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | NC030-R |
|---|---|
| Standards | CSA C22.2 No. 5 |
| Approval | CSA |
| Temp Rating | 40C |
| Construction Features | Color Coded Handle (Green), Stab-lok System |
Product FAQs
4 answersWhat panels accept the Square D NC030 circuit breaker?
The NC030 is a direct replacement breaker designed exclusively for Federal Pacific Electric (FPE) and Federal Pioneer Stab-Lok load centers. Despite being manufactured by Square D, it will not fit standard Square D QO or Homeline panels.
How much panel space does the NC030 require?
This is a thin-style NC frame breaker that occupies one half-inch of space on the bus bar. The half-inch plug-on design allows for higher circuit density in compatible Stab-Lok load centers compared to standard one-inch breakers.
Can I use the NC030 to replace an original FPE single-pole breaker?
Yes, the Square D NC030 serves as a direct replacement for original Federal Pacific Electric 30A single-pole breakers. It provides updated overcurrent protection for aging Stab-Lok systems requiring an NC frame replacement.
How does the NC030 protect circuits in legacy Stab-Lok panels?
Manufactured by Schneider Electric, the NC030 provides reliable, modern thermal-magnetic trip mechanisms for aging Federal Pacific enclosures. It delivers fixed long-time and instantaneous trip functions to ensure proper overcurrent and short-circuit protection.
