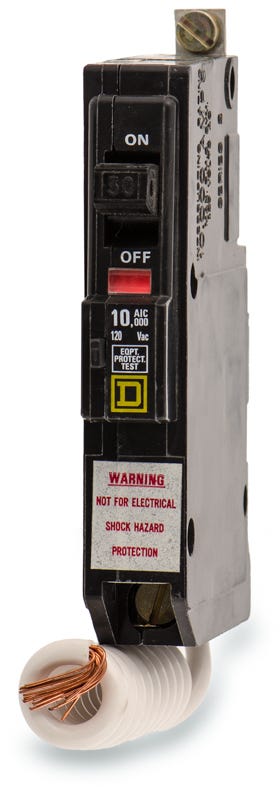

Square D QOB130EPD GFEP Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Square D
QOB130EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QOB130EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB130EPD - 30A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFEP Miniature Circuit Breaker
30A GFEP Miniature Circuit Breaker
30A GFEP Miniature Circuit Breaker
Description
Rated for 30A circuits, the Square D QOB130EPD provides 30mA ground fault equipment protection. This 1-pole breaker suits industrial loads needing a higher fault threshold than 5mA personnel devices. The bolt-on mechanism installs into Square D NQ and NQOD distribution panels. It accommodates 14-8 AWG copper or 12-8 AWG aluminum wire. Operating at 120VAC with a 10kAIC capacity, it utilizes thermal-magnetic trip technology. The Visi-Trip feature highlights tripped circuits instantly.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB130EPD |
| Series | QOB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 12-8 AWG (Al), 14-8 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersCan I install the QOB130EPD in a standard QO load center?
No. The QOB130EPD features a bolt-on connection designed specifically for NQ and NQOD panelboards. Standard QO load centers require plug-on breakers like the QO130EPD.
What is the ground fault trip threshold for this EPD breaker?
The EPD designation indicates it is an Equipment Protection Device with a 30mA ground fault trip threshold. This is designed to protect equipment like heat tracing cables, unlike Class A GFI breakers which trip at 5mA for personnel protection.
How is the neutral connection configured on the QOB130EPD?
This breaker utilizes a pigtail neutral. The coiled white pigtail wire must be connected directly to the panelboard neutral bus, and the load neutral must terminate on the breaker to allow the ground fault circuitry to monitor current imbalance.
What is the plug-on equivalent for the QOB130EPD?
If your installation requires a plug-on connection for a standard QO load center rather than a bolt-on panelboard, the correct catalog number is QO130EPD.
Can this breaker be used in a Square D NF series panelboard?
No. Square D NF panelboards are designed for E-frame breakers like the EDB series. The QOB130EPD is only compatible with NQ and legacy NQOD panelboards.
