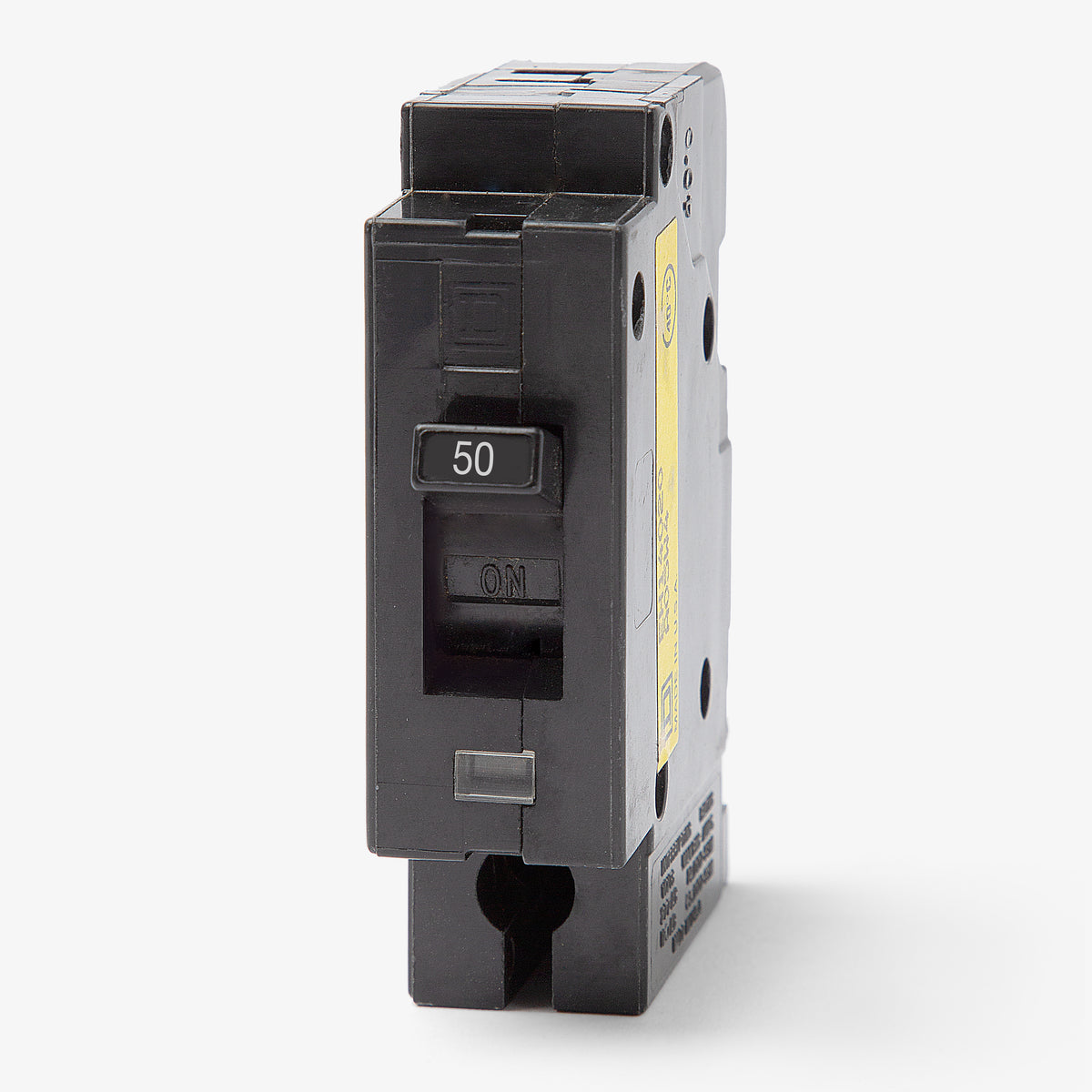

Square D EH14050 Molded Case Circuit Breaker
- 50A
- 1 Pole

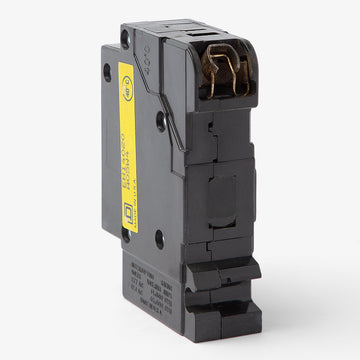

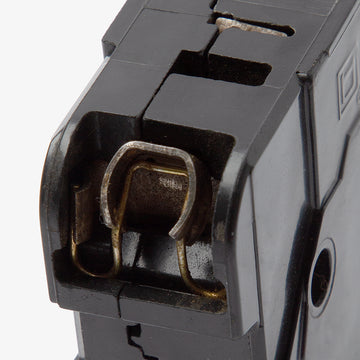

- Plug-On
Quantity
Square D EH14050 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
A drop-in solution for aging electrical systems, this 50A thermal-magnetic breaker provides essential overload and short-circuit protection. It is specifically engineered to mount into Square D NEHB panelboards using a standard plug-on configuration. For facilities upgrading their hardware, this legacy unit can be substituted with the EHB14050. It features a 65 kAIC interrupt rating at 120VAC and includes the signature Visi-Trip mechanism for rapid identification of tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EH14050 |
| Series | EH |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panelboards are compatible with the EH14050 circuit breaker?
The EH14050 is designed exclusively for use in legacy Square D NEHB panelboards. It will not fit in newer NF or NQ series panelboards.
Is there a direct replacement for the legacy EH14050 breaker?
Yes, the EHB14050 is a direct substitute for this unit. It shares the same physical dimensions and mounts into the exact same NEHB panelboard configuration.

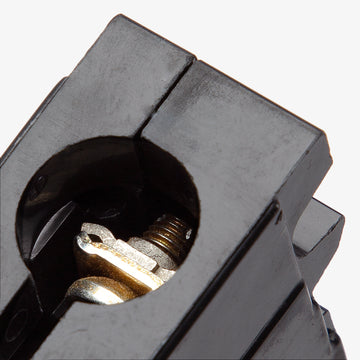

What type of wire and gauge range is supported by the EH14050 terminals?
The factory-installed lugs accept either copper or aluminum conductors. The supported wire range is 14 AWG to 2 AWG for copper, and 12 AWG to 2 AWG for aluminum.
What do the LI trip functions indicate on this breaker?
The LI designation means this thermal magnetic breaker provides Long-Time overload protection and Instantaneous short-circuit protection.
Can this 1-pole breaker be used in 277V lighting circuits?
Yes, the EH14050 is rated for 277VAC applications with a 14kA interrupting capacity. This makes it suitable for commercial 277V lighting and single-phase loads.
Does the EH14050 feature a tripped circuit indicator?
Yes, this breaker includes the Square D Visi-Trip mechanism. When the breaker trips, a highly visible red indicator appears to help quickly identify the faulted circuit in the panelboard.
