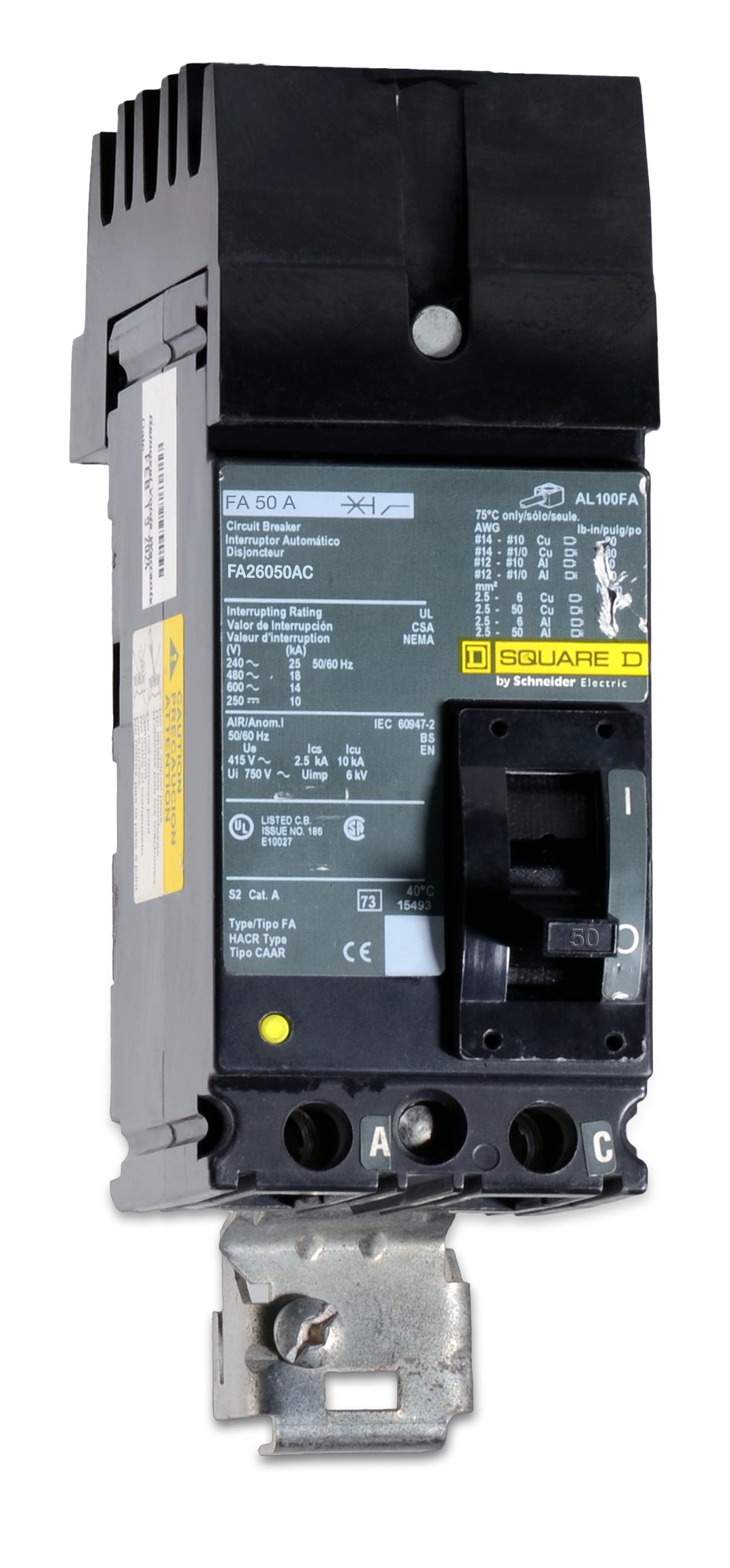

Square D FA26050AC Molded Case Circuit Breaker
- 50A
- 2 Pole
- I-Line
Square D
FA26050AC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA26050AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA26050AC - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D FA26050AC - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26050AC |
| Series | FA |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
Square D FA26050AC - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26050AC-R |
| Series | FA |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
45A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial applications, the FA26050AC provides robust thermal-magnetic protection for 600V electrical systems. It features fixed long-time and instantaneous (LI) trip functions to prevent overloads and short circuits. Equipped with factory-installed AC phase jaws, this F-Frame MCCB plugs into Square D I-Line panelboards. It serves as a drop-in replacement for older systems, though Square D now offers the HDA260502 as its modern PowerPact equivalent. Features 18kAIC at 480V.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA26050AC |
| Series | FA |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Phase AC Jaws |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
5 answersHow does the FA26050AC connect to the panelboard bus?
It utilizes an I-Line plug-on connection, which allows the breaker to snap directly onto the busbar of Square D I-Line panelboards without the need for bolt-on hardware. The blow-on type connectors are designed to grasp the bus bars tighter during a short circuit.
What does the "AC" suffix mean in the FA26050AC catalog number?
The "AC" suffix indicates the factory-installed I-Line phase connection jaws are configured for the A and C phases of the panelboard bus.
Can the FA26050AC be installed in a standard residential load center?
No, the FA26050AC features an I-Line plug-on connection and is exclusively designed for Square D I-Line panelboards and switchboards. It is not compatible with standard QO or Homeline residential load centers.
Is the FA26050AC still manufactured, or is there a modern replacement?
The FA series is a legacy F-frame breaker. Square D (Schneider Electric) now offers the PowerPact H-frame series as the modern equivalent. The direct replacement is the HDA260502, which matches the 50A rating, 2-pole AC phase configuration, and I-Line mounting.
Does the FA26050AC feature a push-to-trip button for testing?
Yes, Square D FA frame breakers include a push-to-trip button on the face of the breaker. This allows users to manually trip the breaker to verify the mechanical operation of the tripping mechanism without exposure to live parts.
