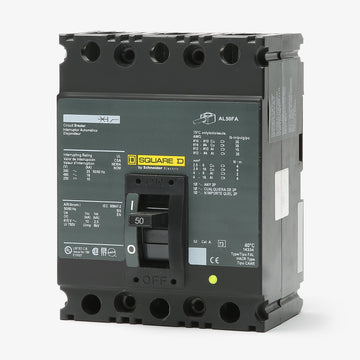

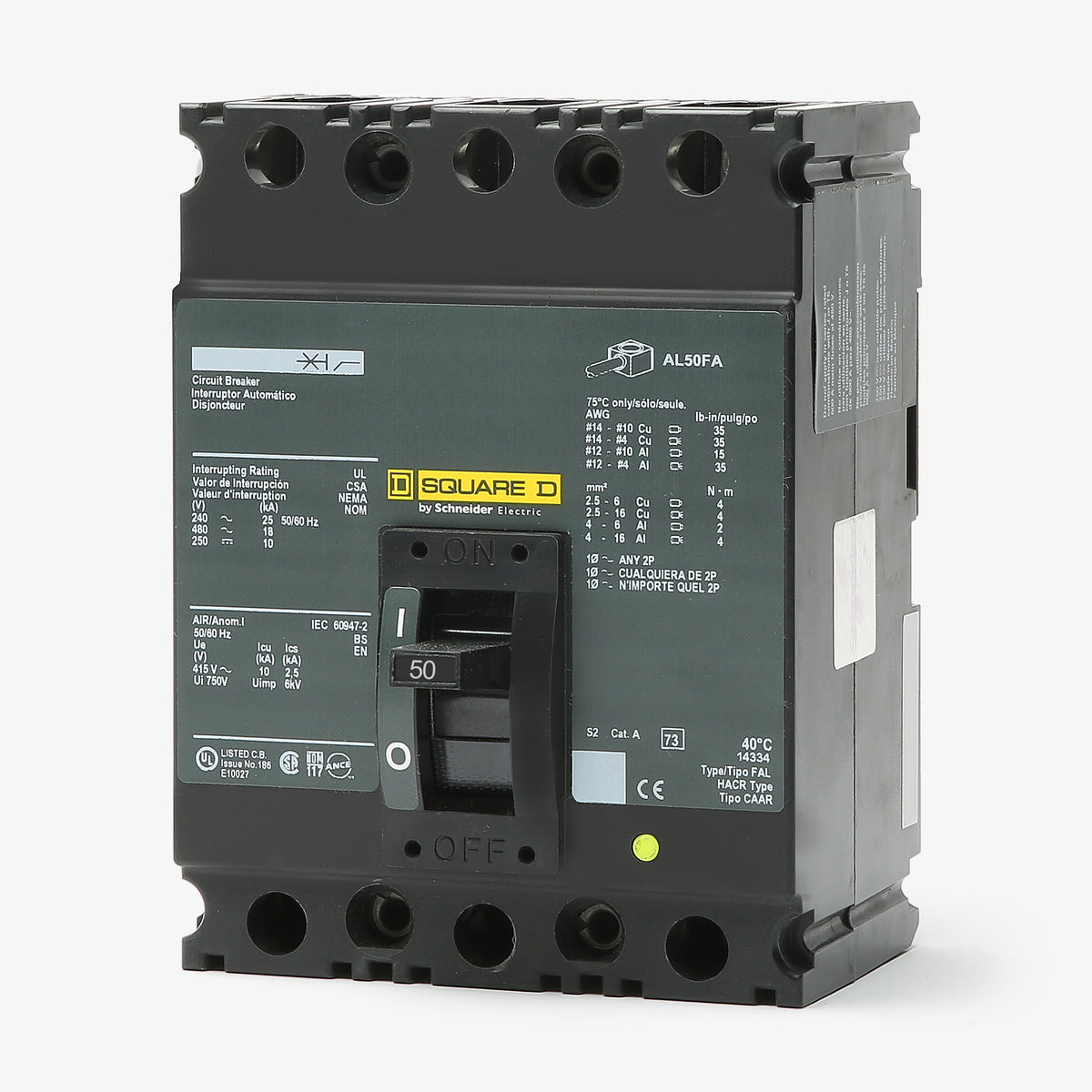

Square D FAL32050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Unit Mount
Square D
FAL32050
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL32050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL32050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FAL32050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32050 |
| Series | FAL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL32050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32050-R |
| Series | FAL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Built specifically for heavy-duty commercial environments, this 50A molded case circuit breaker offers fixed long-time and instantaneous trip functions. It integrates smoothly into standard Square D control panels and enclosures using a traditional unit mount configuration. As a trusted component of the legacy F-Frame family, it provides an exact fit for older installations. When modernizing entire systems, engineers typically transition to the newer BDL36050 PowerPacT B-Frame equivalent.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL32050 |
| Series | FAL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersIs the Square D FAL32050 still manufactured?
The FAL32050 is a legacy F-frame molded case circuit breaker that has been discontinued by Schneider Electric. For new installations, Schneider Electric recommends crossing this to the newer PowerPact B-frame series, such as the BDL36050, though mounting modifications may be required.
Can I install the FAL32050 in an I-Line panelboard?
No. The FAL32050 is a unit-mount breaker designed to bolt directly to a backpan in enclosures and control panels. If you need a breaker for an I-Line panelboard, you must use the FA32050, which features the I-Line plug-on connection.
What standalone enclosures are compatible with the FAL32050?
The FAL32050 can be installed in Square D FA100 series enclosures, such as the FA100F for flush mounting, the FA100S for surface mounting, or the FA100X NEMA 7 cast aluminum enclosure. These enclosures accommodate 15A to 100A F-frame breakers.
What is the difference between Square D FAL and FHL circuit breakers?
The primary difference is their interrupting capacity. FAL breakers are standard-interrupting, rated at 10kAIC at 240V. FHL breakers are high-interrupting versions designed to safely clear higher fault currents, rated up to 65kAIC at 240V. Both share the same physical F-frame dimensions.
Does the FAL32050 provide adjustable trip settings?
No. The FAL32050 features a standard thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. It does not offer field-adjustable trip dials.

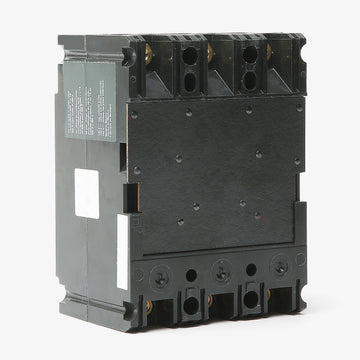

How does the FAL32050 mount inside a panel?
This is a unit-mount, or bolt-on, circuit breaker. It does not plug onto a busbar. Instead, it bolts directly to the mounting surface or backpan in compatible Square D enclosures, switchboards, and control panels.

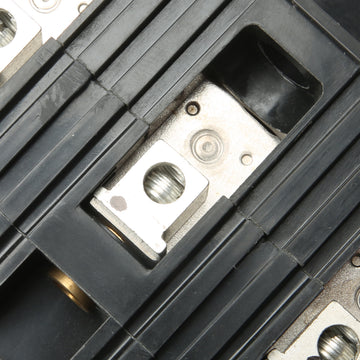

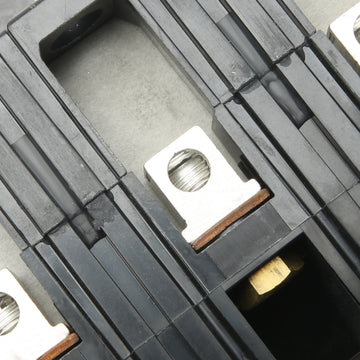

Are the line and load lugs included with the FAL32050?
Yes, the FAL32050 comes standard with factory-installed mechanical lugs on both the line and load sides. If replacement lugs are needed, the AL100FA lug kit is compatible with this frame.
