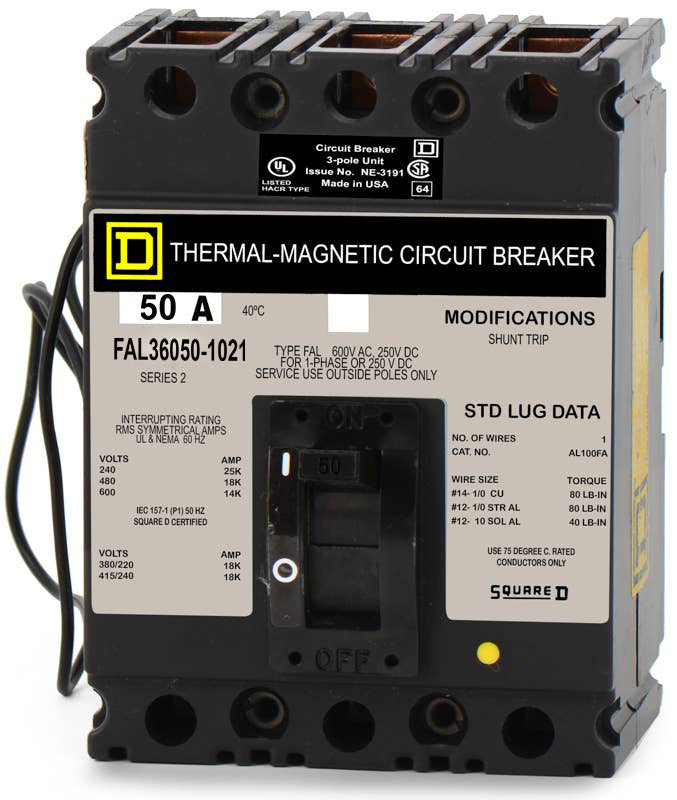

Square D FAL36050-1021 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Unit Mount
Quantity
Square D FAL36050-1021 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Part of the legacy F-frame series, the Square D FAL36050-1021 is a 3-pole, 50A MCCB built for industrial power distribution. It features a factory-installed 120-240VAC shunt trip, allowing the breaker to be opened remotely via an external signal. This unit mounts into standard Square D enclosures and switchboards. It is replaced by the HDL36050, which requires a compatible shunt trip accessory. Delivering reliable thermal-magnetic protection, it provides 18kAIC at 480VAC and includes lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL36050-1021 |
| Series | FAL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the -1021 suffix mean on the FAL36050-1021?
The -1021 suffix indicates that this breaker includes a factory-installed 120-240VAC shunt trip accessory. This allows the breaker to be tripped remotely using an external control signal.
What is the modern replacement for the legacy FAL36050-1021?
The FAL series is a legacy F-frame breaker. The modern equivalent is the PowerPact H-frame series, specifically the HDL36050. To replicate the -1021 functionality, you must also install a compatible 120-240VAC shunt trip accessory in the new PowerPact breaker.
Can I adjust the trip settings on the FAL36050-1021?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides long-time and instantaneous protection, but the trip thresholds cannot be adjusted in the field.
How does the factory-installed shunt trip improve safety?
The 120-240VAC shunt trip allows for remote tripping of the breaker. When voltage is applied to the shunt trip coil from an external source, such as an emergency stop button or fire alarm relay, it mechanically trips the breaker to safely disconnect power.
Is the FAL36050-1021 compatible with I-Line panelboards?
No, this is a unit mount, feed-thru circuit breaker designed to be bolted to a backpan in standard enclosures, switchboards, or motor control centers. It does not have the plug-on jaw connections required for Square D I-Line bus systems.
Are the lugs on the FAL36050-1021 rated for aluminum wire?
Yes, the standard factory lugs are dual-rated for both copper and aluminum conductors. They accept 14 to 1/0 AWG copper wire or 12 to 1/0 AWG aluminum wire.
