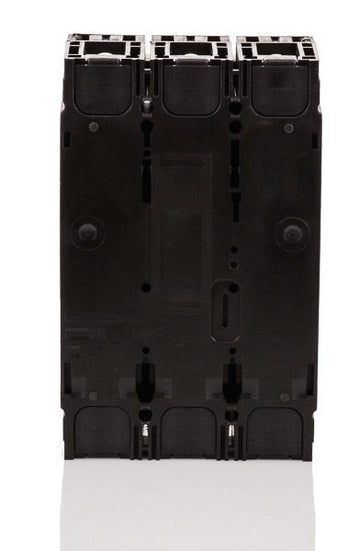

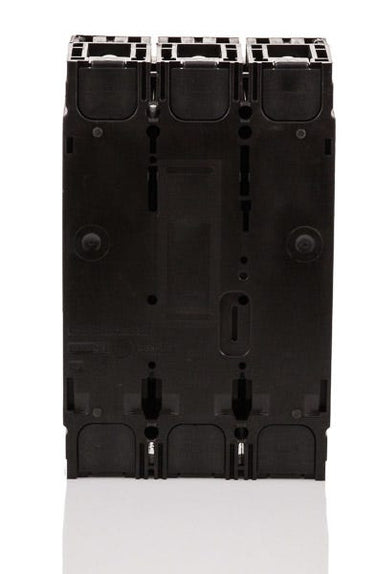

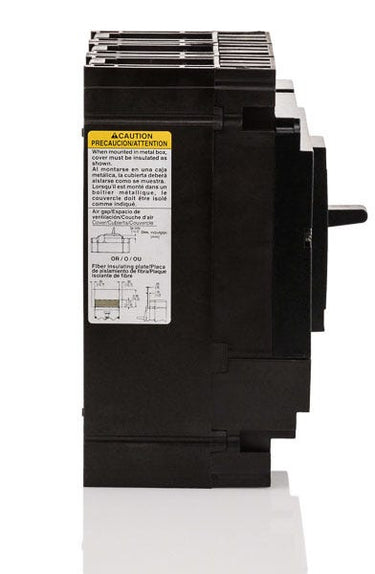

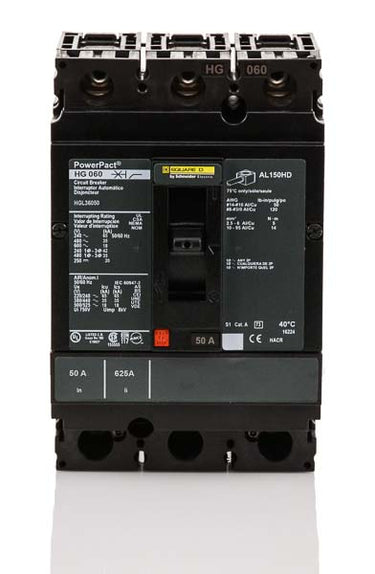

Square D HGL36050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Unit Mount
Square D
HGL36050
Molded Case Circuit Breaker
Brand
Square D
SKU
HGL36050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGL36050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGL36050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | HGL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | PowerPacT H-Frame Enclosures, Switchboards, Industrial Control Panels, NF Panelboards (Main), NQ Panelboards (Main) |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None (Factory Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Quantity
Square D HGL36050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HGL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | PowerPacT H-Frame Enclosures, Switchboards, Industrial Control Panels, NF Panelboards (Main), NQ Panelboards (Main) |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None (Factory Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial use, the Square D HGL36050 is a 3-pole, 50A molded case circuit breaker from the PowerPacT H-Frame family. It provides robust long-time and instantaneous (LI) thermal-magnetic protection. This unit-mount breaker installs into PowerPacT enclosures, switchboards, and serves as a main in NF and NQ panelboards. Rated for 65kAIC at 240VAC and 18kAIC at 600VAC, this current-limiting MCCB features Visi-Trip indication and is fully HACR rated.Specifications
| Brand | Square D |
|---|---|
| Series | HGL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | PowerPacT H-Frame Enclosures, Switchboards, Industrial Control Panels, NF Panelboards (Main), NQ Panelboards (Main) |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None (Factory Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat do the letters in the HGL36050 catalog number signify?
"H" indicates the PowerPacT H-Frame. "G" specifies the interrupting rating tier, which is 35kA at 480VAC. "L" means it is a unit-mount breaker with lugs on both the line and load sides. The "3" stands for 3-pole, "6" for 600VAC maximum voltage, and "050" for the 50-amp rating.
What is the difference between the Square D HGL36050 and HGA36050?
The HGL36050 is a unit-mount circuit breaker with feed-thru lugs on both the line and load sides. The HGA36050 is an I-Line circuit breaker designed to plug directly into an I-Line panelboard bus on the line side, with lugs on the load side.
Which lug kit is standard on the HGL36050?
This breaker comes standard with AL150HD lugs on both the line and load sides. These lugs accept 14 AWG to 3/0 AWG aluminum or copper wire.
Is the HGL36050 suitable for reverse feeding?
Yes. Because it is a standard unit-mount thermal-magnetic breaker, the HGL36050 has a sealed trip unit and is suitable for reverse-feed applications.
Can the HGL36050 be installed as a main breaker in a Square D panelboard?
Yes, this breaker is compatible for use as a main breaker in NF and NQ panelboards. You will need the appropriate main breaker installation kit specific to your panelboard type and ampacity.
What does the LI trip function indicate on this H-Frame breaker?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. On the HGL36050, both the thermal and magnetic trip points are fixed and non-adjustable.
How can I manually test the tripping mechanism on the HGL36050?
The breaker features an integral push-to-trip button on the front cover. Pressing this button manually trips the breaker, allowing you to verify the mechanical operation of the trip mechanism and ensure the handle moves to the center tripped position.
