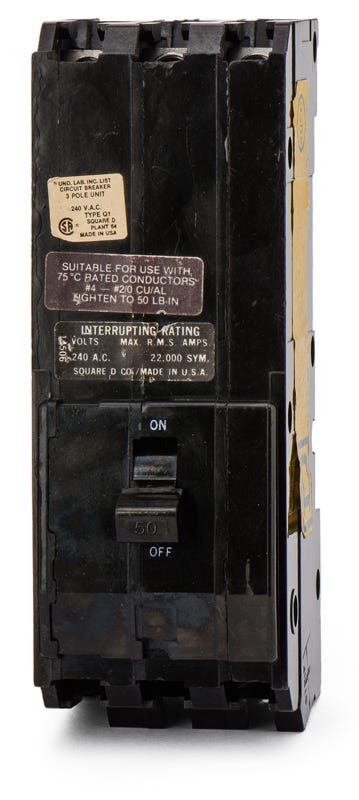

Square D Q1350VH Molded Case Circuit Breaker
- 50A
- 3 Pole
- Plug-On
Quantity
Square D Q1350VH - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered for commercial and industrial applications, the Square D Q1350VH is a 3-pole, 50A molded case circuit breaker. It provides reliable thermal-magnetic protection for power distribution systems requiring a 240VAC rating. This plug-on MCCB installs into legacy Square D Q1 and NQO panelboards. As part of the older Q-Frame lineup, it serves as an exact fit for existing enclosures, though it has been officially replaced by the modern QO350VH for new installations.Specifications
| Brand | Square D |
|---|---|
| Part Number | Q1350VH-R |
| Series | Q1 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Q1 Panelboards, NQO Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, High Interrupting Capacity |
Product FAQs
3 answersWhat is the modern replacement for the Q1350VH?
For new installations, this legacy Q-Frame breaker has been officially replaced by the modern QO350VH. The Q1350VH is typically sourced as an exact-fit replacement for existing Square D Q1 and NQO panelboards.
What does the "VH" suffix indicate on the Q1350VH?
The "VH" stands for Very High interrupting rating. It signifies that the breaker is rated for 22kAIC at 240VAC, providing higher fault current protection compared to standard 10kAIC versions.
Are load lugs included with this breaker?
Yes, load-side lugs are included with the Q1350VH. These factory lugs are dual-rated for both aluminum and copper conductors ranging from 8 AWG to 2 AWG.
