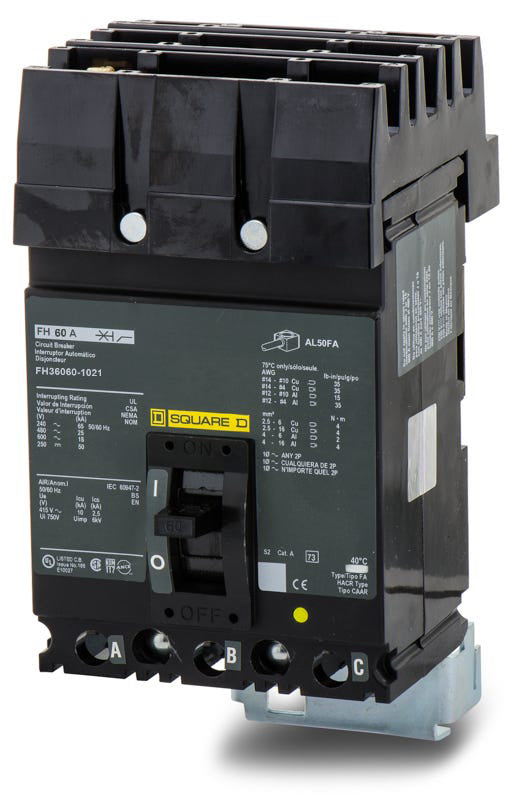

Schneider Electric FH36060-1021 Molded Case Circuit Breaker
- 60A
- 3 Pole
- I-Line
Quantity
Schneider Electric FH36060-1021 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric FH36060-1021 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | FH36060-1021 |
| Series | FH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Quantity
Schneider Electric FH36060-1021 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | FH36060-1021-R |
| Series | FH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Description
Utilizing a proven thermal-magnetic trip mechanism, this 60A industrial breaker provides reliable overcurrent protection alongside a factory-installed shunt trip. The HACR-rated construction handles rigorous commercial loads. Designed exclusively for Square D I-Line panelboards, the specialized mounting jaw allows quick insertion. Facilities seeking current-generation replacements can utilize the PowerPact BGA36060. With a 65kAIC rating at 240VAC, this unit features a Visi-Trip indicator.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | FH36060-1021 |
| Series | FH |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Product FAQs
5 answersWhat does the "-1021" suffix indicate on the FH36060-1021?
The -1021 suffix designates a factory-installed 120/240V AC shunt trip. This allows the breaker to be tripped remotely by an external voltage signal, which is commonly required for emergency shutdown systems or remote control applications.
What is the current-generation replacement for the legacy FH36060-1021?
The Square D F-frame series has been superseded by the PowerPact B-frame. The modern equivalent is the BGA36060. Note that you will need to add a compatible shunt trip accessory to the PowerPact breaker to replicate the -1021 factory modification.
Which panels are compatible with the FH36060-1021 circuit breaker?
This breaker features an I-Line style plug-in connection and is designed exclusively for use in Square D I-Line panelboards and switchboards. It cannot be used in standard load centers or unit-mount applications.
How does the I-Line mounting system work on the FH36060-1021?
The I-Line plug-in design uses a specialized mounting jaw that snaps directly onto the panelboard bus assembly. This allows for rapid installation and phase balancing without the need for bolted bus connections.
Does the FH36060-1021 include a trip indicator?
Yes, this breaker features a Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, a highly visible red indicator appears in the window to help quickly identify the faulted circuit.
