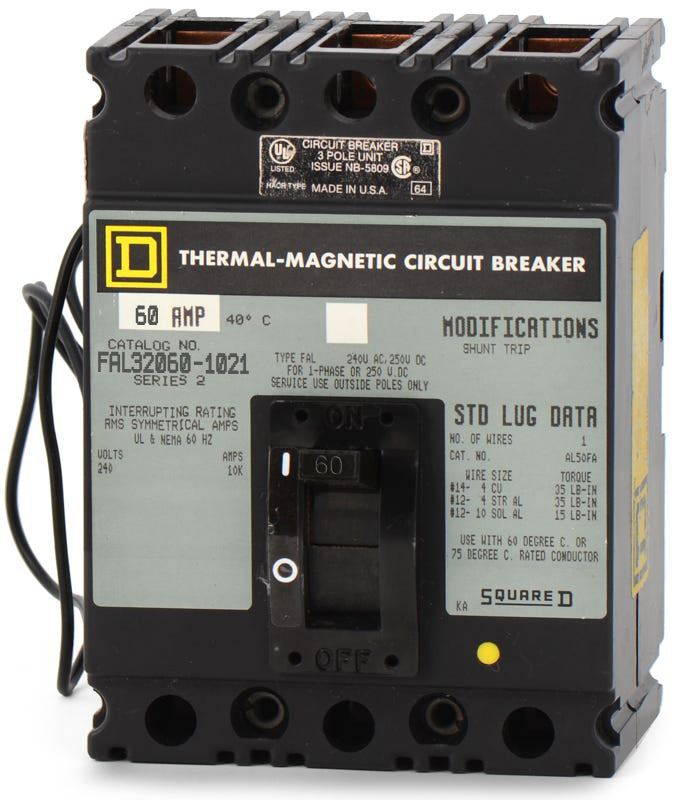

Square D FAL32060-1021 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Quantity
Square D FAL32060-1021 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Featuring a factory-installed shunt trip, the FAL32060-1021 is a 60A, 3-pole MCCB built for remote tripping applications. It provides dependable thermal-magnetic protection for industrial control panels. This unit-mount F-frame breaker fits into standard Square D enclosures and switchboards. It serves as a legacy component, replaceable by the BDL36060 when paired with a shunt trip accessory. With a 10kAIC rating at 240VAC, it includes a Visi-Trip indicator and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL32060-1021 |
| Series | FAL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Control Panels |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip, Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
7 answersWhat does the -1021 suffix mean on the FAL32060-1021 circuit breaker?
The -1021 suffix indicates that this breaker includes a factory-installed 120-240VAC shunt trip. This allows the breaker to be opened remotely for enhanced safety and control in automated or emergency shutdown systems.
How is the FAL32060-1021 installed in a panel or enclosure?
This is a unit-mount circuit breaker, meaning it is installed using mounting hardware rather than plugging into an I-Line busbar. It features feed-thru lug connections on both the line and load sides.
Does the shunt trip require a separate power source?
Yes, the factory-installed 120-240VAC shunt trip requires an external control voltage source to operate the trip coil. When voltage is applied to the control terminals, the breaker will mechanically trip and open the primary contacts.
What wire sizes are compatible with the lugs on this 60A FAL breaker?
The standard lugs accept copper or aluminum wire ranging from 14 AWG to 1/0 AWG.
Can the trip settings on the FAL32060-1021 be adjusted?
No, this breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. Neither the thermal nor the magnetic settings are adjustable.
What types of equipment is the FAL32060-1021 designed to be used with?
This F-frame breaker is designed for use in compatible Square D enclosures, switchboards, and industrial control panels that accept unit-mount breakers.
What is the modern replacement for the legacy FAL series?
The FAL series is part of the legacy Square D F-Frame lineup. For modern replacements, Schneider Electric typically recommends crossing to the PowerPact B-frame series. Note that a new PowerPact breaker will require a separately ordered shunt trip accessory to match the remote tripping capability of the -1021 suffix.
