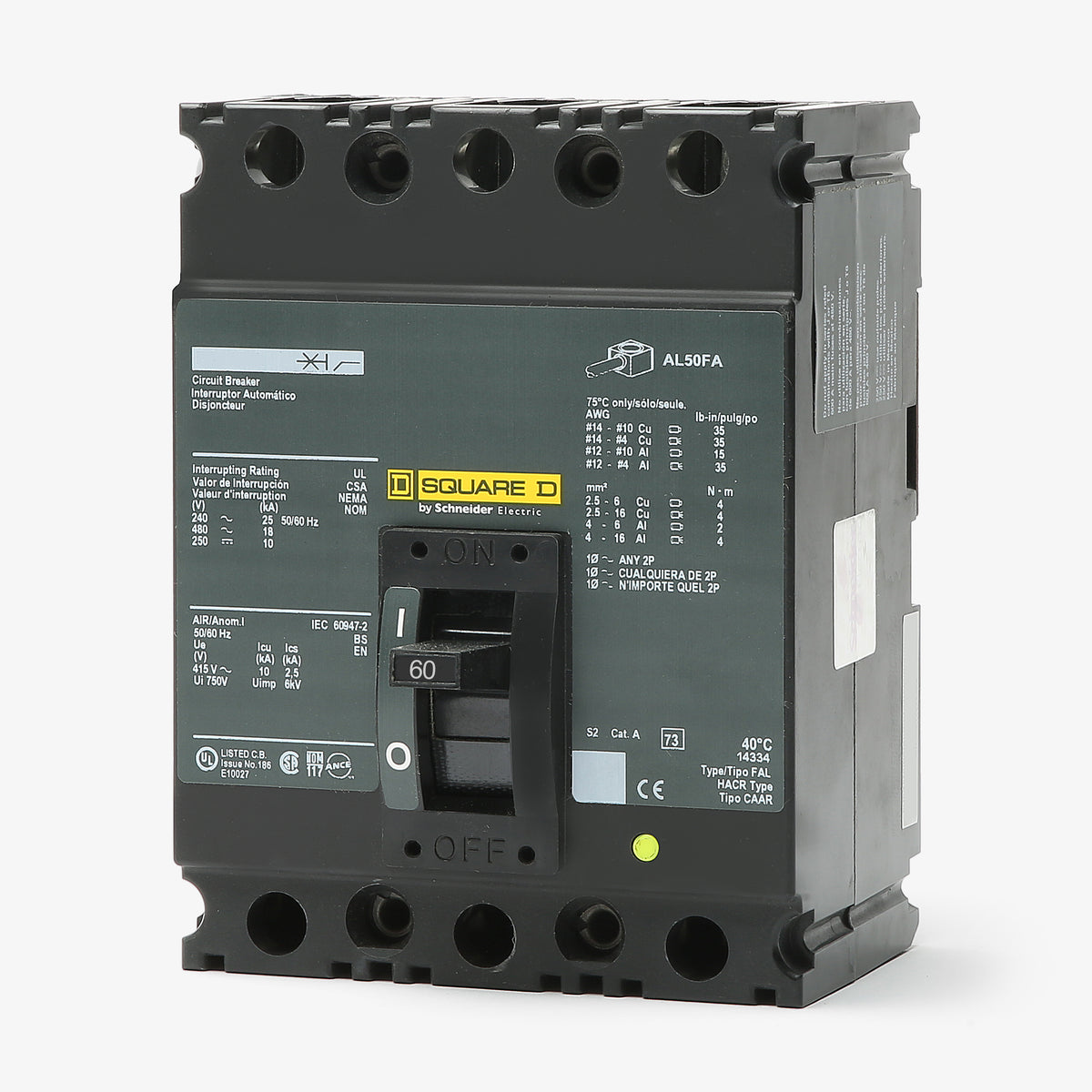

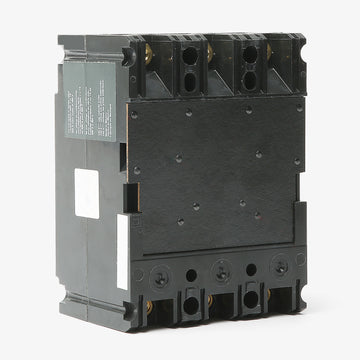

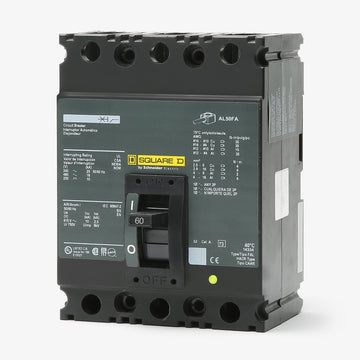

Square D FAL32060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Square D
FAL32060
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL32060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL32060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D FAL32060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32060 |
| Series | FAL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D FAL32060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL32060-R |
| Series | FAL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for robust facility power distribution, the FAL32060 is a 60A, 3-pole thermal-magnetic MCCB. It delivers reliable overcurrent protection for demanding commercial and industrial environments. The F-frame unit-mount design integrates into standard Square D switchboards and control panels. When maintaining older systems, note that this legacy breaker is officially replaced by the BDL36060.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL32060 |
| Series | FAL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Enclosures, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489, W-C-375B/GEN |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat enclosures or panelboards is the FAL32060 compatible with?
The FAL32060 is a unit-mount F-frame breaker equipped with lugs on both the line and load sides. It is designed for installation in compatible Square D enclosures and switchboards rather than plug-on I-Line panelboards.
Can the FAL32060 be used in DC electrical systems?
Yes, this breaker is rated for DC applications up to 250VDC, where it provides an interrupting capacity of 5kAIC.
Is the FAL32060 suitable for reverse feeding?
Yes. Because this thermal-magnetic circuit breaker does not have factory Line and Load markings, it can be reverse fed for backfeed applications in accordance with local electrical codes.

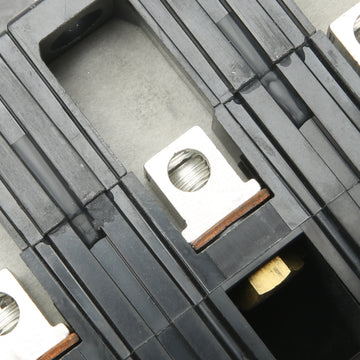

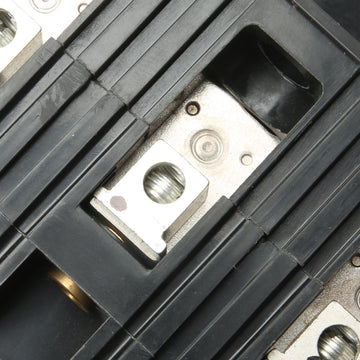

What wire sizes do the factory lugs on the FAL32060 accept?
The standard lugs accommodate 14 AWG to 1/0 AWG copper wire, or 12 AWG to 1/0 AWG aluminum wire. Always torque terminals to the manufacturer specifications printed directly on the breaker label.
What is the modern replacement for the legacy FAL32060 breaker?
The FAL32060 is part of the legacy F-frame series. The modern Square D equivalent is typically found in the PowerPact B-frame or H-frame series. You must verify enclosure clearances and mounting hardware before upgrading, as physical dimensions differ.
Does this breaker provide ground fault or arc fault protection?
No. The FAL32060 features standard thermal-magnetic protection with fixed long-time and instantaneous trip functions. It does not include equipment ground fault protection or arc fault capabilities.
