Square D FAP36060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Square D
FAP36060
Molded Case Circuit Breaker
Brand
Square D
SKU
FAP36060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

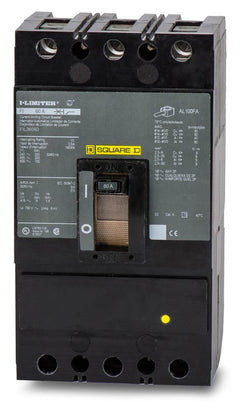

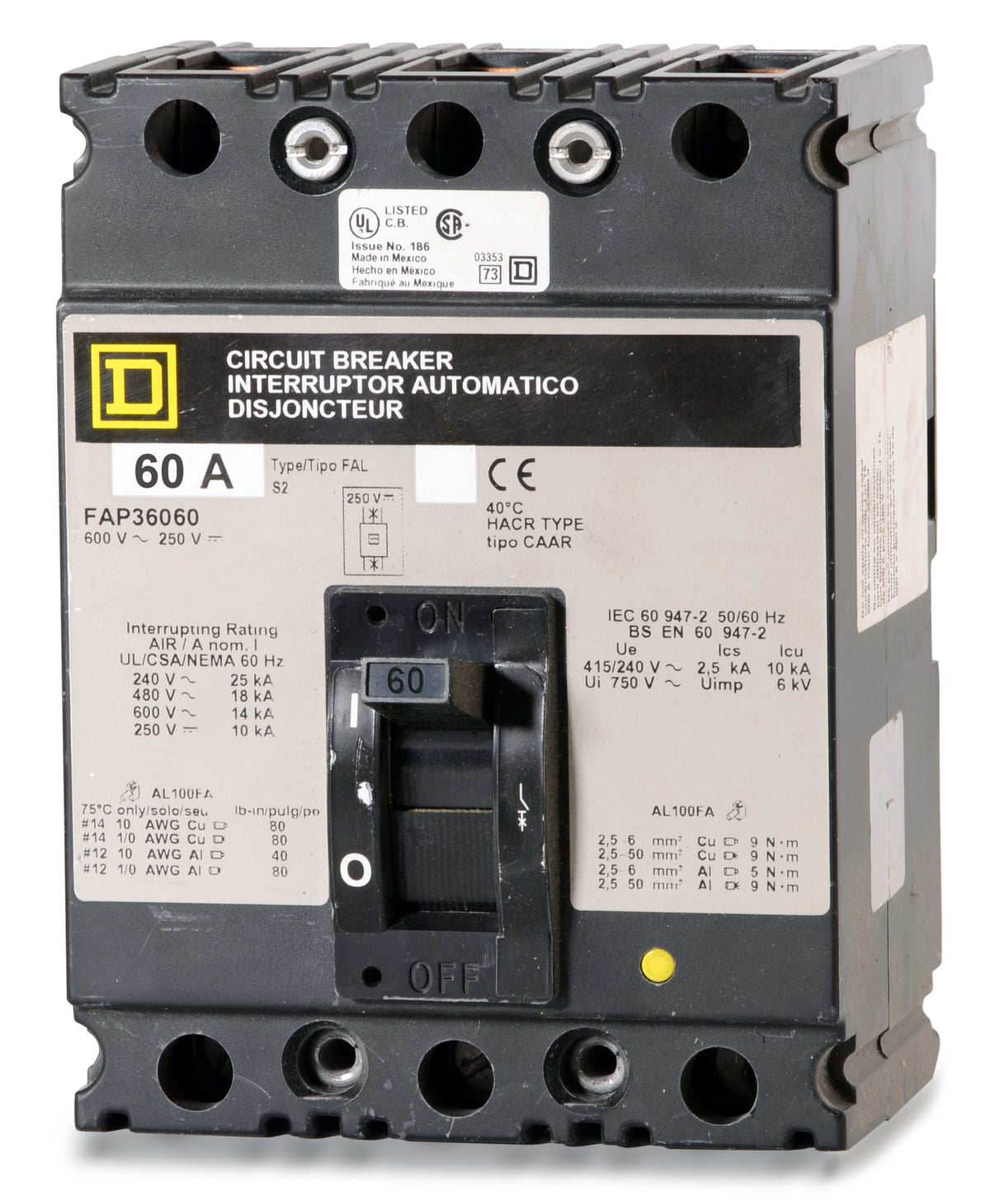

Square D FAP36060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the FAP36060 is a 3-pole, 60A molded case circuit breaker. It provides standard long-time and instantaneous (LI) thermal-magnetic protection. This bolt-on breaker installs into Square D motor control centers, enclosures, and switchboards. It serves as a replacement for older FAL36060 units and is superseded by the PowerPacT H-Frame (HJL36060). Rated for 18 kAIC at 480VAC, it features a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAP36060_ |
| Series | FAP |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAP_ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Enclosures, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat types of equipment is the FAP36060 designed to be installed in?
This F-Frame breaker is designed for unit-mount, bolt-on installation in Square D motor control centers, switchboards, and individual enclosures.
What wire sizes and materials are compatible with the lugs on the FAP36060?
The factory lugs accept 14 to 1/0 AWG copper (Cu) wire or 12 to 1/0 AWG aluminum (Al) wire.
Can this F-Frame breaker be used in DC applications?
Yes, it is rated for use in DC systems up to 250VDC, providing a 10kA interrupting capacity at that voltage.
Does this breaker support adjustable trip settings?
No, this thermal magnetic breaker features fixed thermal and fixed magnetic trip elements. It provides standard long-time and instantaneous protection without adjustable dials.
Is the FAP36060 part of a current or legacy product line?
The FAP series is classified as a legacy molded case circuit breaker. It is primarily sourced for direct replacements in existing Square D switchboards, enclosures, and motor control centers rather than for new construction.
What precautions should be taken before installing this bolt-on breaker in a motor control center?
Ensure all upstream power is completely de-energized and locked out. Verify that the busbar spacing and mounting hardware match the F-Frame bolt-on configuration before torquing the connections to the manufacturer specifications.
