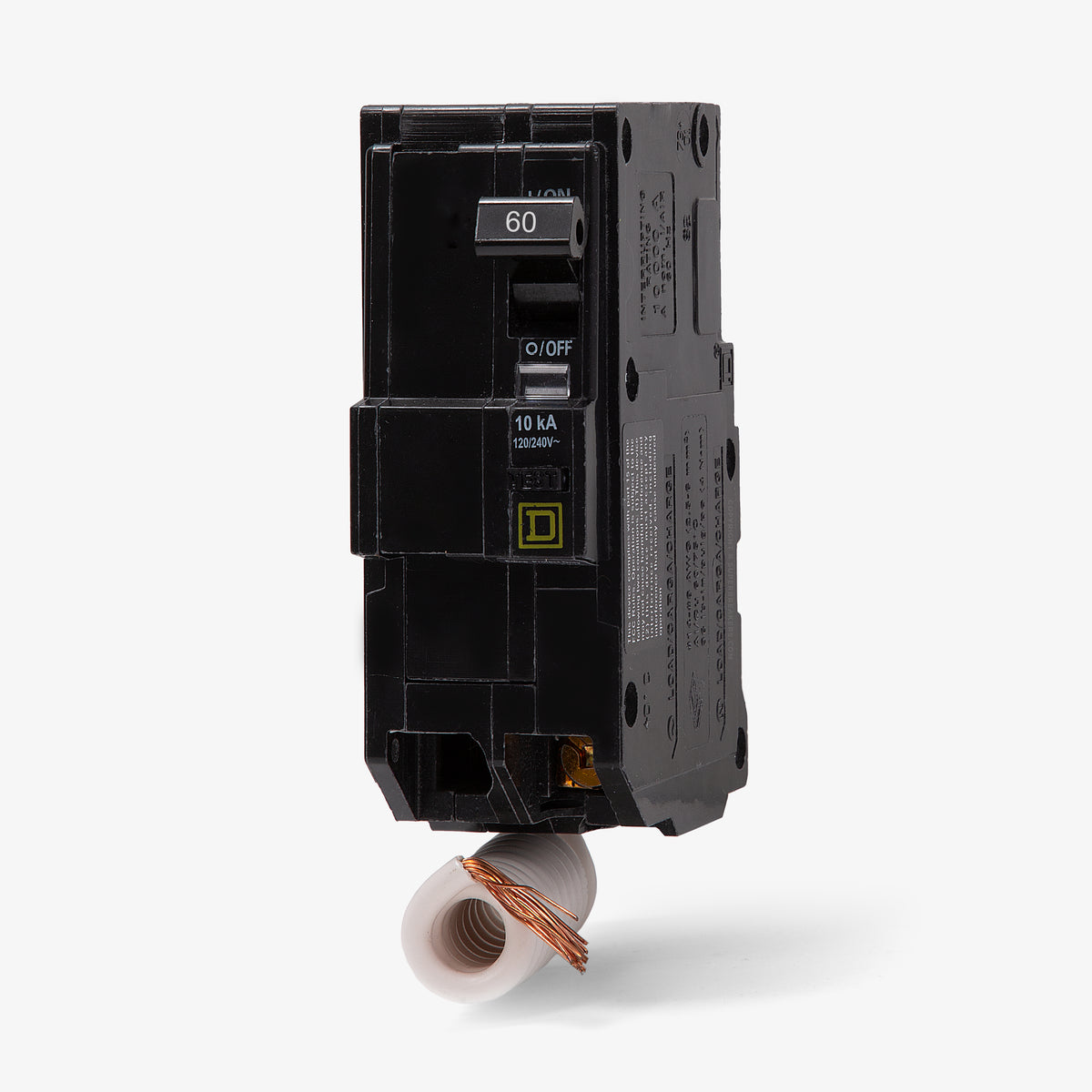

Square D QO260EPD GFEP Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
Quantity
Square D QO260EPD - 60A GFEP Miniature Circuit Breaker
New
Quantity
Description
Engineered to safeguard critical hardware, this 60A GFEP breaker monitors circuits for 30mA ground faults. It serves commercial facilities by interrupting power when equipment-level leakage is detected. The two-pole device utilizes a standard plug-on connection for rapid deployment. It is fully compatible with Square D QO load centers and NQ panelboards. An integrated Visi-Trip window provides immediate visual confirmation of a tripped state. The unit is also HACR rated for HVAC loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO260EPD |
| Series | QO |
| Amperage | 60A |
| Poles | 2 |

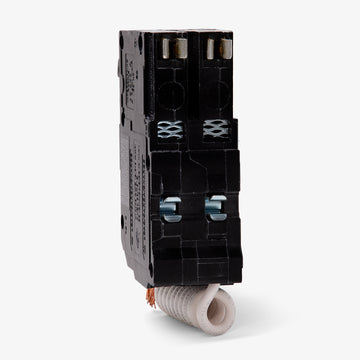

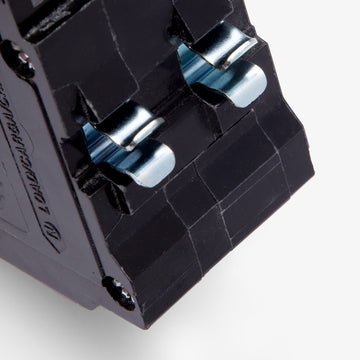

| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersCan I install the QO260EPD in a Square D Homeline panel?
No. QO breakers are not interchangeable with Homeline panels. The QO260EPD is designed exclusively for use with QO load centers, NQ panelboards, and NQOD panelboards.
What is the difference between an EPD breaker and a standard GFCI breaker?
EPD stands for Equipment Protection Device. The QO260EPD provides Class B ground fault protection with a 30mA trip threshold to protect equipment from damage. Standard Class A GFCI breakers have a 4mA to 6mA trip threshold designed specifically for personnel protection.
How much panel space does the QO260EPD require?
As a 2-pole QO breaker, it requires two standard 3/4-inch spaces in a compatible QO load center or NQ/NQOD panelboard.
How is the neutral connected on the QO260EPD?

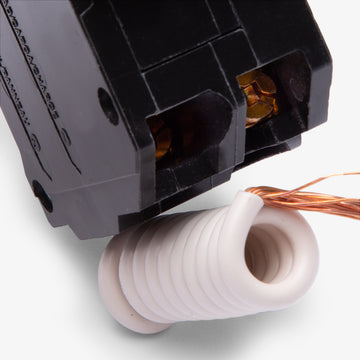

This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bus bar in the panel for the ground fault equipment protection to function correctly.
Is there a bolt-on equivalent for the QO260EPD?
Yes. If your panelboard requires a bolt-on connection rather than a plug-on connection, the direct equivalent is catalog number QOB260EPD.
