Square D QOB280H Miniature Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Square D
QOB280H
Miniature Circuit Breaker
Brand
Square D
SKU
QOB280H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

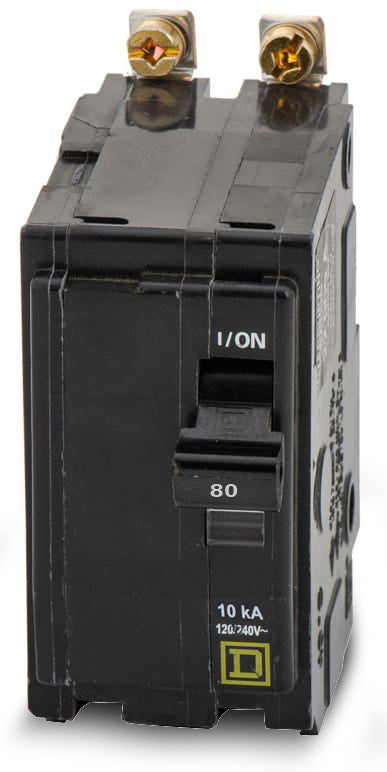

Square D QOB280H - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
Description
Engineered for robust commercial power distribution, the Square D QOB280H is a 2-pole, 80-amp miniature circuit breaker providing dependable thermal-magnetic protection. Designed for a firm mechanical connection, this breaker bolts into Square D NQ and NQOD panelboards. The box lug terminals accommodate 4 AWG to 2/0 AWG wire sizes. With a 10kAIC rating at 240VAC, it handles standard fault currents while offering the convenience of a Visi-Trip indicator for rapid troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB280H |
| Series | QOB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
6 answersWhat panelboards are compatible with the QOB280H?
The QOB280H is a bolt-on circuit breaker designed specifically for Square D NQ and NQOD panelboards. It cannot be installed in standard QO load centers, which require plug-on breakers.
How does the QOB280H mount to the panelboard?
This breaker features a bolt-on connection. It secures directly to the bus bar of NQ or NQOD panelboards using screws, providing a firm mechanical connection suitable for commercial and industrial applications.
Does the QOB280H include a visual trip indicator?
Yes, this breaker features the Square D Visi-Trip indicator. When the breaker trips, a highly visible red indicator appears in the window, allowing for quick identification of the faulted circuit in a busy panel.
What is the plug-on equivalent of the QOB280H?
For standard QO load centers that require a plug-on connection, the equivalent 80-amp, 2-pole breaker is the QO280H.
What type of protection does the thermal-magnetic trip unit provide?
The thermal-magnetic mechanism in the QOB280H provides two types of protection. The thermal component offers a long-time delay to prevent nuisance tripping from temporary overloads, while the magnetic component provides an instantaneous trip to quickly clear severe short circuits.
Is the QOB280H suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
