Square D 9007C62B2 Limit Switch
Quantity
Core Specs
See full specs
Square D 9007C62B2 Limit Switch
New
Quantity
Description

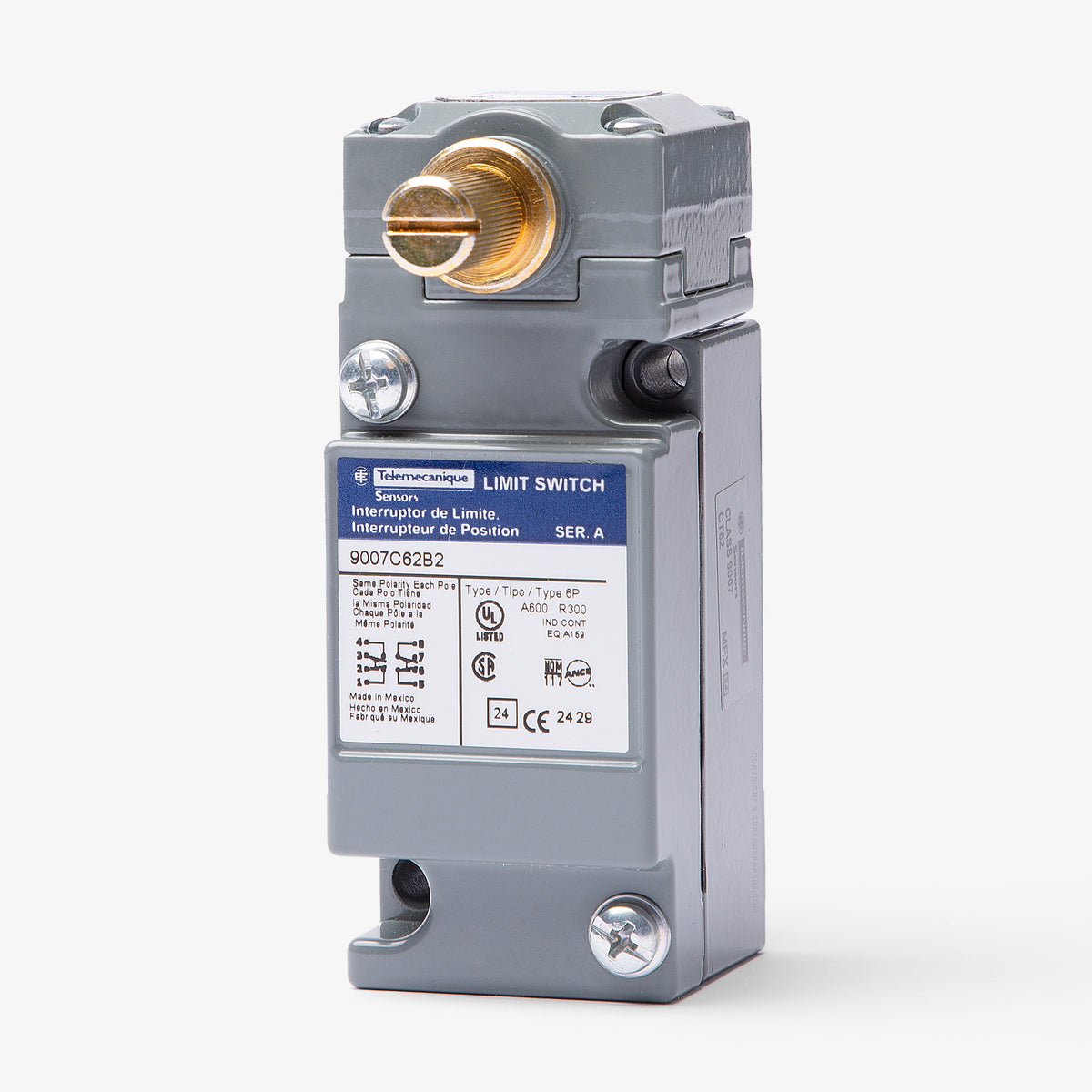

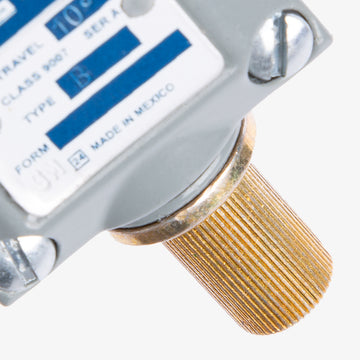

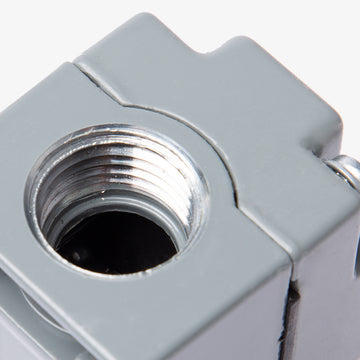

Square D 9007C62B2 Limit Switch
The Square D 9007C62B2 is a limit switch with a current rating of 10 Amps and a voltage rating of 600VAC/VDC. It has a snap action and a rotary head actuator type. The 9007C62B2 has a screw clamp terminal connection and a surface mounting type.
Specifications
| Amperage | 10 A |
|---|---|
| Voltage | 600VAC/VDC |
| Series | 9007C |
| Poles | 2 |
| Mounting Type | Surface |
|---|---|
| Terminal Connection | Screw Clamp |
| Length (in) | 1.14 |
| Width (in) | 0.83 |
| Height (in) | 2.5 |
| Wire Gauge | AWG 22 to AWG 12 |
| Duty Rating | Heavy Duty |
|---|---|
| Actuator Type | Rotary Head |
| Action | Snap |
| Contact Configuration | 2NO, 2NC |
| Approval | CE, UL, CSA, EN, IEC |
|---|---|
| NEMA Rating | 1, 2, 4, 6, 6P, 12, 13 |
| Standards | NEMA |
| Temperature Rating | -20 to 185 °F |
| Body Material | Zinc |
| Brand | Square D |
|---|---|
| MPN | 9007C62B2 |
| UPC | 00785901500650 |
| GTIN | 785901500650 |
