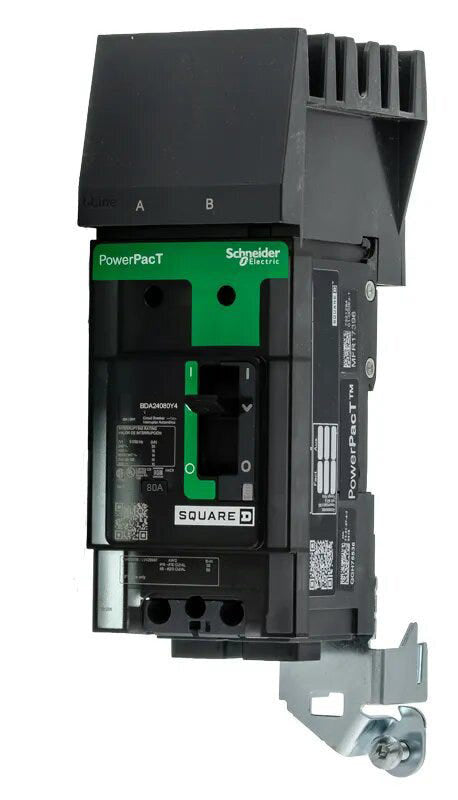

Square D BDA24080Y4 Molded Case Circuit Breaker
- 80A
- 2 Pole
- I-Line
Square D
BDA24080Y4
Molded Case Circuit Breaker
Brand
Square D
SKU
BDA24080Y4
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D BDA24080Y4 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
A reliable solution for heavy-duty electrical systems, the Square D BDA24080Y4 is a 2-pole, 80-amp molded case circuit breaker. Belonging to the PowerPacT B-Frame series, it provides essential long-time and instantaneous (LI) trip functions. This specific model is factory-configured for a BC phase connection and installs into Square D I-Line panelboards. With an 18 kAIC rating at 480V and a Visi-Trip indicator, it serves as an exact replacement for the older FA24080BC breaker.Specifications
| Brand | Square D |
|---|---|
| Part Number | BDA24080Y4 |
| Series | BDA |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | BDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, EN/IEC 60947-2, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the "Y4" suffix mean in the BDA24080Y4 catalog number?
The "Y4" suffix indicates that this 2-pole I-Line breaker is factory-configured for a BC phase connection on the panelboard bus.
What is the modern replacement for the legacy FA24080BC breaker?
The PowerPacT B-frame BDA24080Y4 is the direct, drop-in replacement for the obsolete Square D F-frame FA24080BC circuit breaker.
Are the trip settings on the BDA24080Y4 adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) trip functions cannot be adjusted in the field.
Are the lugs on the BDA24080Y4 rated for aluminum wire?
Yes, the factory-installed lugs are dual-rated for both aluminum and copper conductors, accepting wire sizes from 14 AWG to 2/0 AWG.
How can I visually identify if the BDA24080Y4 has tripped?
This PowerPacT B-frame breaker features a Visi-Trip indicator. When the breaker trips, the handle moves to a center position and the Visi-Trip indicator provides clear visual confirmation of a faulted circuit.
Can the BDA24080Y4 be DIN rail mounted?
No, this specific model features an I-Line style plug-in connection designed exclusively for Square D I-Line panelboards and switchboards. It is not designed for DIN rail or unit mount applications.
