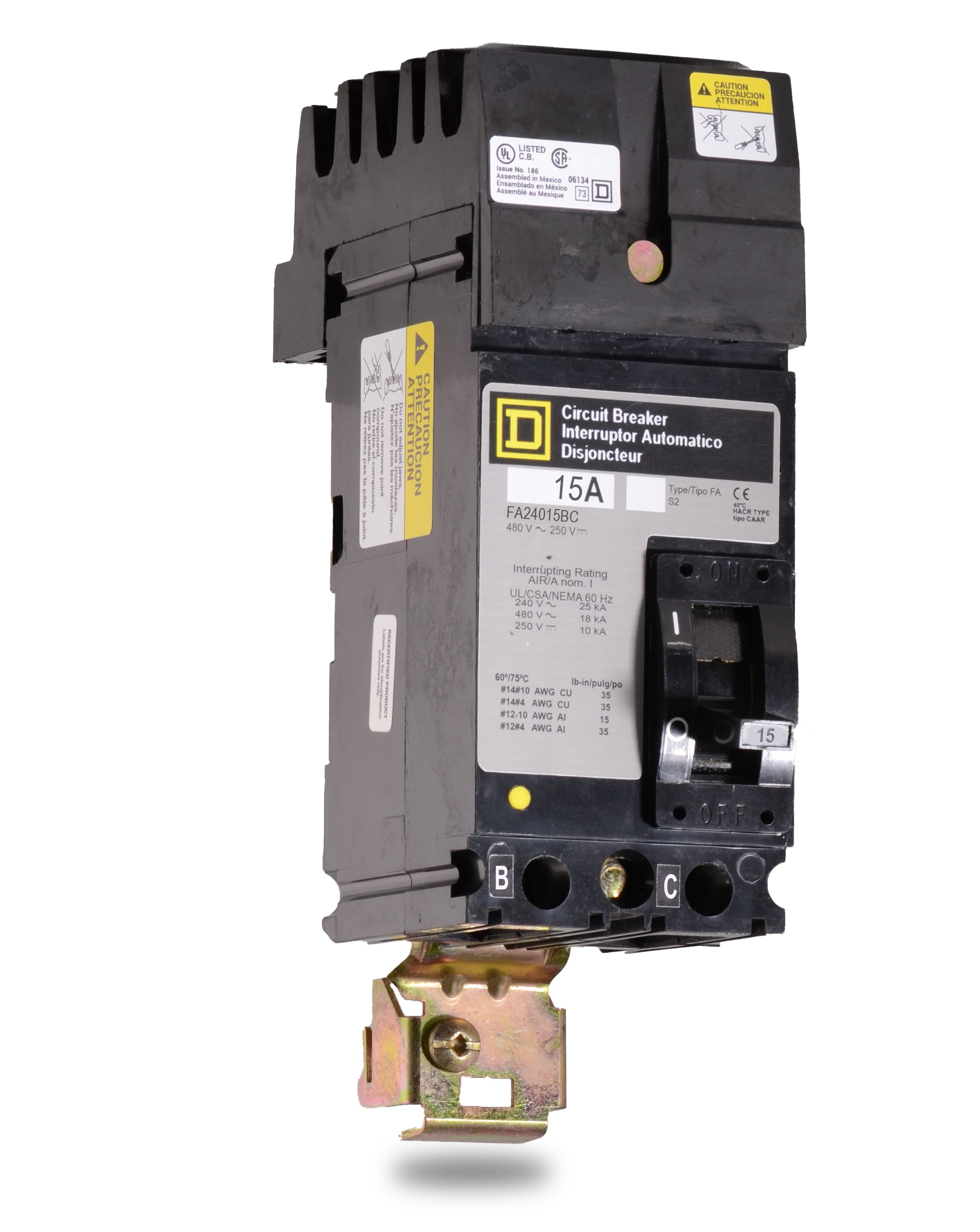

Square D FA24015BC Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
FA24015BC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA24015BC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA24015BC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA24015BC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24015BC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
Square D FA24015BC - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24015BC-R |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Square D FA24015BC is a 2-pole, 15A molded case circuit breaker. It features a fixed thermal-magnetic trip mechanism for dependable long-time and instantaneous fault protection. Designed with a BC phase connection, this F-frame breaker mounts into Square D I-Line panelboards and switchboards. This legacy component is replaced by the HDA260153 model. It provides 25 kAIC at 240VAC and includes a Visi-Trip indicator for easy status checks.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA24015BC |
| Series | FA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the FA24015BC circuit breaker?
This F-Frame breaker is specifically designed for Square D I-Line panelboards and switchboards. It utilizes an I-Line style plug-in connection rather than a standard bolt-on or clip-on mount.
What does the BC suffix indicate on the FA24015BC catalog number?
The BC suffix specifies the phase connection. It means this 2-pole breaker is factory-configured to connect to the B and C phases of the I-Line panelboard bus.
What wire sizes and materials are compatible with the terminals on this breaker?
The factory-installed lugs accept wire gauges from 14 AWG up to 4 AWG. They are rated for use with both copper and aluminum conductors.
How does the thermal-magnetic trip unit function on the FA24015BC?
The trip unit provides two types of protection: a long-time thermal response that prevents overheating from sustained mild overloads, and an instantaneous magnetic response that trips the breaker immediately during severe short circuits. Both settings are fixed.
Can the FA24015BC be used in DC power systems?
Yes, in addition to its standard AC ratings of up to 480VAC, this breaker is rated for 250VDC applications, where it provides a maximum interrupting capacity of 10kAIC.
Is the FA24015BC a current production model?
The FA series is classified as a legacy F-Frame molded case circuit breaker. It serves as a direct replacement for existing I-Line systems, though Square D has transitioned to the PowerPact series for newer panelboard designs.
