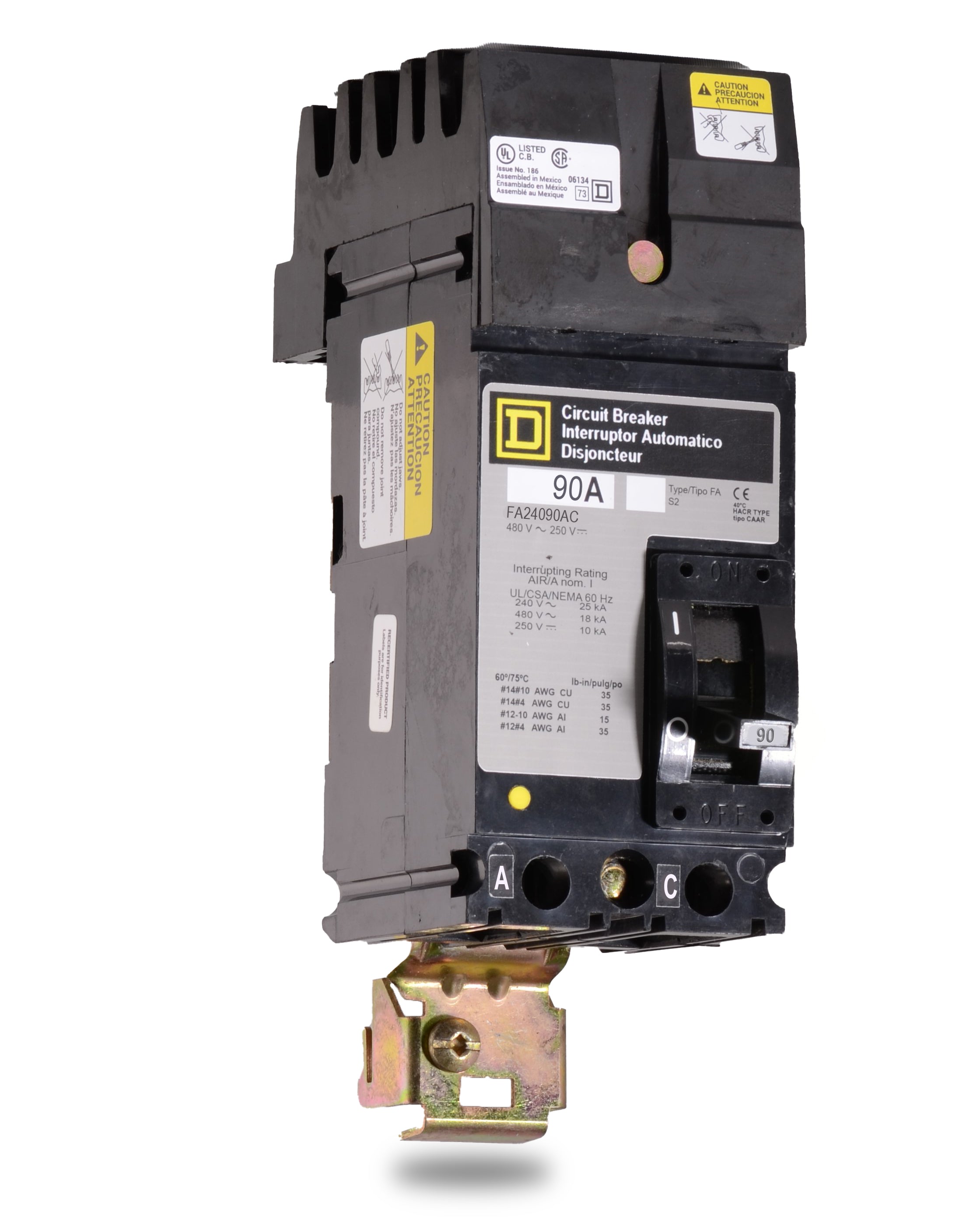

Square D FA24090AC Molded Case Circuit Breaker
- 90A
- 2 Pole
- I-Line
Square D
FA24090AC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA24090AC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA24090AC - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA24090AC - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24090AC |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
Square D FA24090AC - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA24090AC-R |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the FA24090AC is a 90A thermal-magnetic breaker from Square D's legacy F-frame series. It delivers reliable protection for 480V systems. Utilizing an I-Line mounting configuration with an AC phase connection, it fits into Square D I-Line panelboards. For modern replacements, use the PowerPacT HDA260902. The breaker provides an 18 kAIC capacity at 480VAC. It features non-interchangeable trip functions and a highly visible Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA24090AC |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (AL100FA) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
8 answersWhat does the "AC" suffix indicate on the FA24090AC catalog number?
The "AC" suffix specifies the phase connection for the I-Line bus. This 2-pole breaker is factory-configured to connect to the A and C phases within a Square D I-Line panelboard or switchboard.
What is the modern replacement for the legacy FA24090AC?
The FA24090AC is an obsolete F-Frame breaker. Schneider Electric recommends the PowerPacT B-Frame BDA260902 as the direct replacement for new installations or upgrades in I-Line panelboards.
Can the trip settings be adjusted on the FA24090AC?
No, this breaker features a fixed thermal magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory-set and cannot be modified in the field.
How does the FA24090AC mount into the electrical panel?
It features an I-Line style plug-in connection on the line side, allowing it to mount directly onto the bus assembly of compatible Square D I-Line panelboards. The load side utilizes standard mechanical lugs for wire termination.
Is the FA24090AC suitable for DC voltage applications?
Yes, alongside its AC ratings, this breaker is rated for 250VDC with a 10 kAIC interrupting capacity. This makes it viable for specific industrial DC control circuits and battery systems.
Can I install the FA24090AC in a standard QO or Homeline load center?
No, this F-Frame molded case circuit breaker is exclusively designed for industrial Square D I-Line panelboards and switchboards. It is not physically compatible with residential QO or Homeline enclosures.
What wire sizes are compatible with the load lugs on the FA24090AC?
The factory-installed load lugs accept 14 to 1/0 AWG copper wire or 12 to 1/0 AWG aluminum wire. Always torque the lug screws to the exact specifications printed on the breaker faceplate to ensure a secure connection.
What should I do if my system requires a higher interrupting rating than the FA24090AC provides?
The FA24090AC provides a standard 18 kAIC rating at 480VAC. If your fault current calculations require a higher interrupting capacity, you must upgrade to a high-interrupting FH-Frame or a modern PowerPacT equivalent rated for your specific system requirements.
