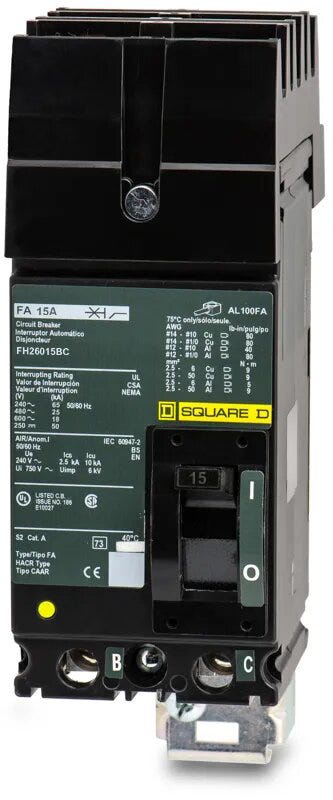

Square D FH26015BC Molded Case Circuit Breaker
- 15A
- 2 Pole
- I-Line
Square D
FH26015BC
Molded Case Circuit Breaker
Brand
Square D
SKU
FH26015BC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FH26015BC - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Designed to streamline maintenance, the Square D FH26015BC is a 2-pole, 15A molded case circuit breaker equipped with a Visi-Trip indicator. It provides dependable long-time and instantaneous (LI) thermal-magnetic protection. This F-Frame breaker features a BC phase connection and mounts into Square D I-Line panelboards. When transitioning to newer switchgear, it is replaced by the HGA260154 model. Delivering a 65kAIC rating at 240VAC, this HACR-rated breaker ensures superior fault interruption.Specifications
| Brand | Square D |
|---|---|
| Part Number | FH26015BC |
| Series | FH |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Phase Connection BC (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Visual Trip Indicator |
Product FAQs
4 answersIs the Square D FH26015BC still manufactured or is there a direct replacement?
The FH26015BC is a legacy F-frame breaker. For new installations or direct replacements in I-Line panelboards, Square D has transitioned to the PowerPact H-frame series, specifically catalog number HGA260154.
What does the BC suffix indicate on this circuit breaker?
The BC suffix specifies the factory-configured phase connection. It dictates that the line-side jaws of the breaker will plug into the B and C phases of a Square D I-Line panelboard bus.
How are the line and load connections configured on the FH26015BC?
This breaker utilizes an I-Line plug-in connection on the line side, which mounts directly to the panelboard bus. The load side features mechanical lug terminals for securing the outgoing conductors.
Is this circuit breaker HACR rated?
Yes, the FH26015BC is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
