Square D FHL3603015M Motor Circuit Protector
- 30A
- 3 Pole
- Unit Mount
Quantity

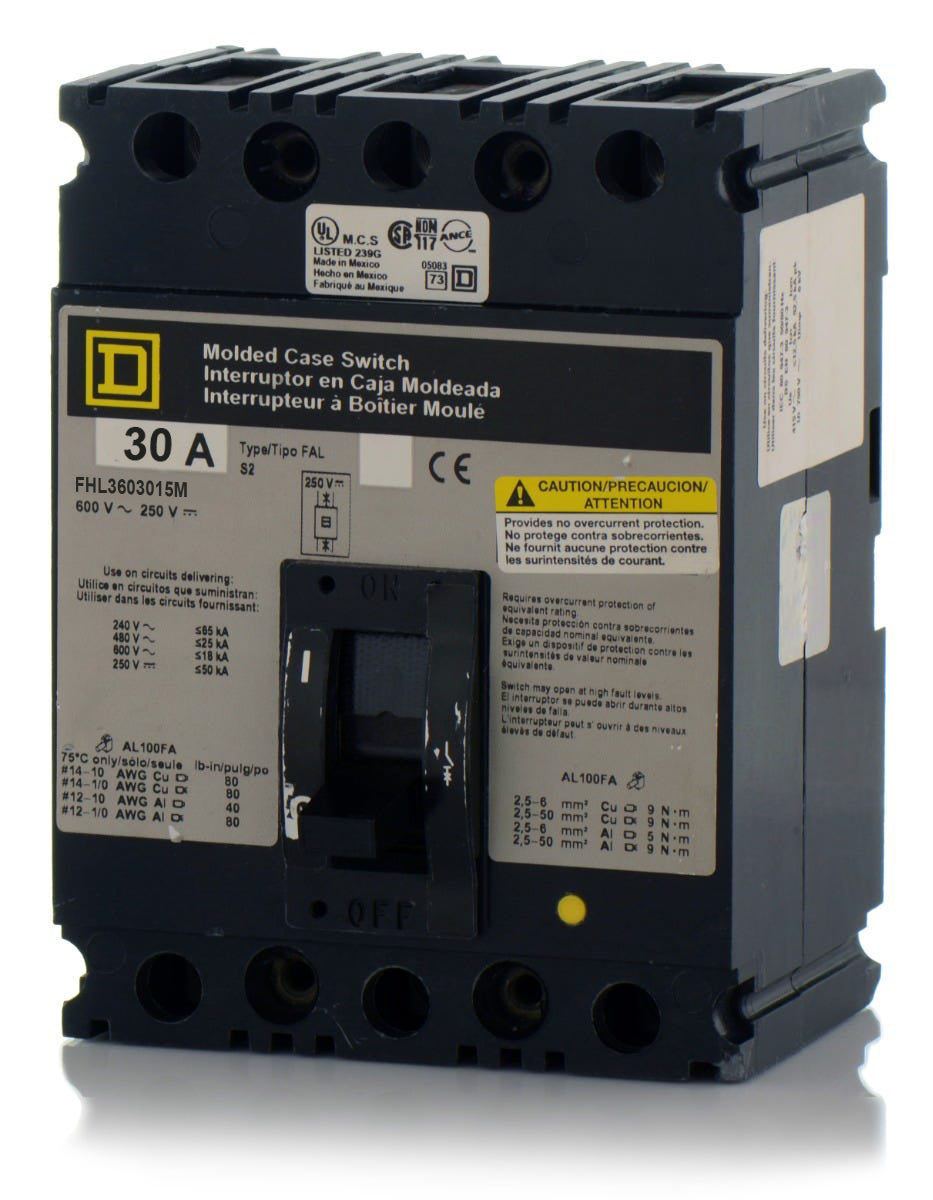

Square D FHL3603015M - 30A 3 Pole Motor Circuit Protector
New
Quantity
Description
Part of the legacy F-Frame lineup, this 30A motor circuit protector delivers instantaneous-only trip capabilities for industrial applications. It installs seamlessly into motor control centers and combination starters, requiring a separate overload relay for complete motor protection. Designed to be replaced by the newer PowerPact HGL36030M38, this unit provides a 65kAIC interrupting capacity at 240V and allows precise coordination via its 100-350A adjustable magnetic trip dial.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHL3603015M |
| Series | FHL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 100-350A |
|---|
| Frame Type | FHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Combination Starters |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1, IEC 60947-2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, High Interrupting Capacity |
