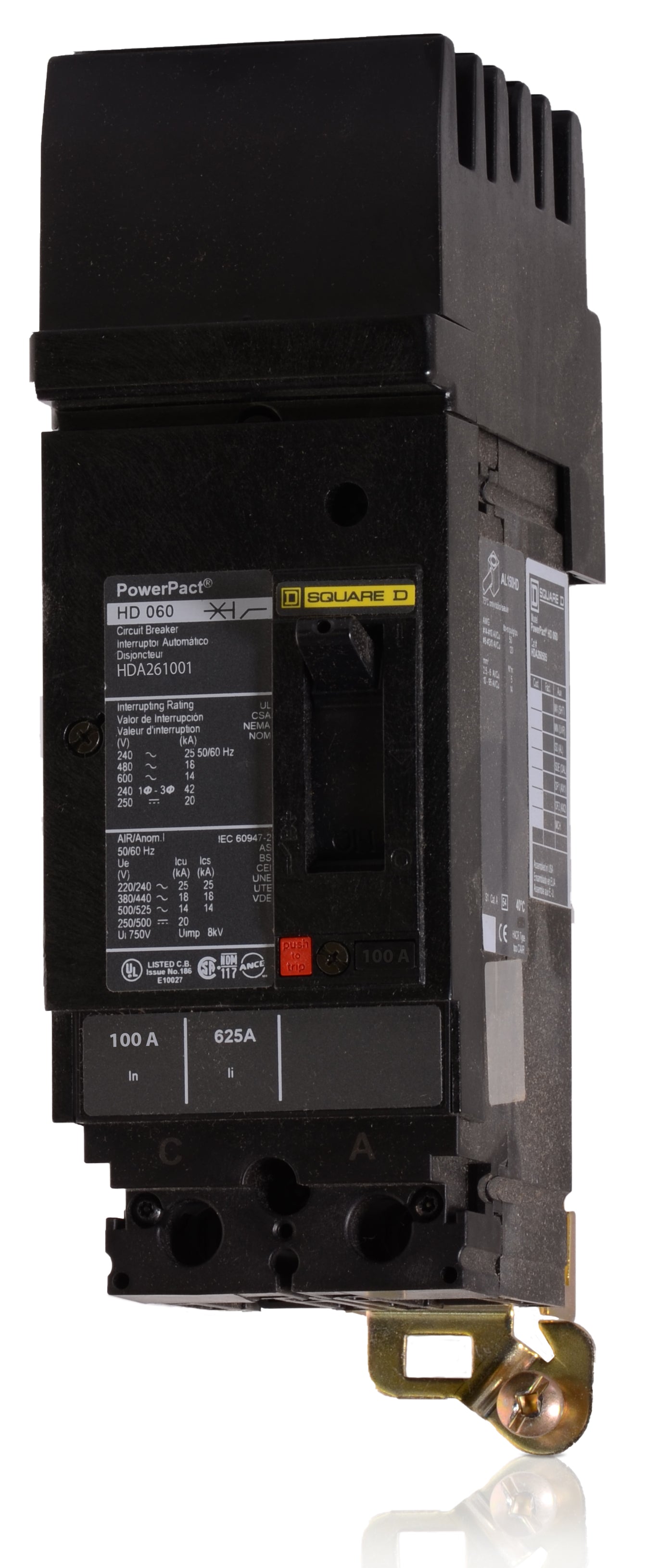

Square D HDA261001 Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Square D
HDA261001
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA261001
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDA261001 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, this 100A, 2-pole molded case circuit breaker belongs to the Square D PowerPacT H-Frame series. It features an I-Line mounting configuration, allowing it to easily install into Square D I-Line panelboards and switchboards. This model replaces the discontinued FA26100AB breaker. Delivering an 18kAIC rating at 480VAC, it includes an AB phase connection, fixed LI trip functions, and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDA261001 |
| Series | HDA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, 80% Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the "1" at the end of the HDA261001 catalog number indicate?
The "1" indicates that this 2-pole breaker is configured for an A-B phase connection on the I-Line bus.
Can the HDA261001 replace older Square D F-frame breakers?
Yes, this PowerPacT H-frame breaker is the direct replacement for the obsolete FA26100AB I-Line circuit breaker.
What is the lug torque specification for the load-side terminals on this 100A breaker?
For the mechanical load lugs, the tightening torque is 44 lb-in (5 N.m) for 14 to 10 AWG wire, and 124 lb-in (14 N.m) for 8 to 3/0 AWG wire.
Does this breaker require a separate mounting hardware kit for installation?
No. As an I-Line style plug-in breaker, it features built-in mounting jaws on the line side that attach directly to the panelboard bus, requiring no additional hardware kits.
How can I manually test the mechanical operation of this breaker?
All PowerPacT H-frame circuit breakers feature an integral push-to-trip button on the front cover. Pressing this button manually trips the breaker to verify the mechanical linkage is operating correctly.
Is this breaker 80% or 100% rated for continuous current?
The HDA261001 is a standard 80% rated circuit breaker.
