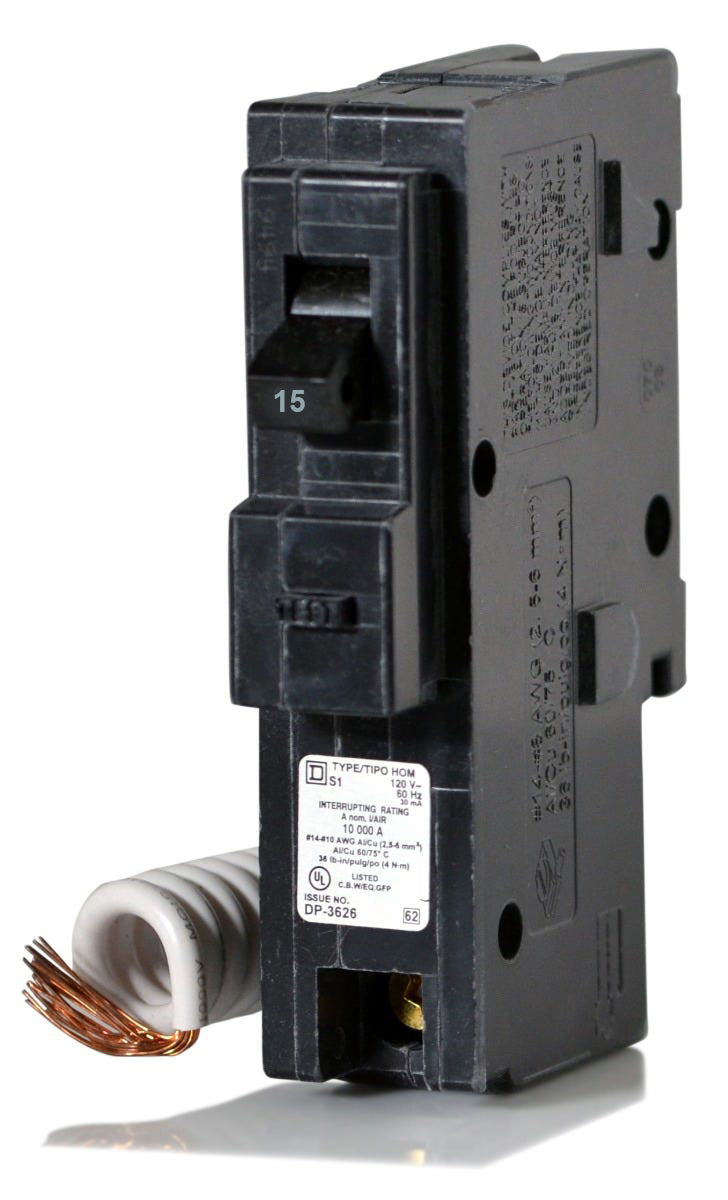

Square D HOM115EPD GFEP Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
Square D HOM115EPD - 15A GFEP Miniature Circuit Breaker
New
Quantity
Description
Manufactured by Square D, the HOM115EPD provides specialized equipment ground-fault protection for residential and commercial systems. This 15A, single-pole breaker detects leakage currents to safeguard sensitive machinery. Designed exclusively for Square D Homeline load centers, the unit utilizes a plug-on mounting style. It accepts 14-8 AWG wiring and features a 10kAIC rating at 120VAC. The breaker utilizes a 30mA trip threshold to prevent nuisance tripping on equipment circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM115EPD |
| Series | HOM |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
8 answersWhat is the difference between the HOM115EPD and the HOM115GFI?
The HOM115EPD is an Equipment Protection Device (EPD) with a 30mA ground fault trip threshold designed to prevent nuisance tripping on equipment circuits. The HOM115GFI is a Class A GFCI breaker that trips at 6mA to provide personnel protection.
What applications typically require a 30mA EPD breaker?
EPD breakers are used for dedicated equipment circuits that have higher natural leakage current, such as heat trace cables, snow melting mats, and specific motor loads, where a standard Class A GFCI would cause nuisance tripping.
Can the HOM115EPD be installed in a Square D QO panel?
No. This breaker is designed exclusively for Square D Homeline load centers. QO panels require QO series breakers, which utilize a different bus bar mounting configuration.
How is the pigtail neutral wired on this breaker?
The coiled white pigtail wire must be connected directly to the neutral bus bar in the load center. This connection is required to power the internal 30mA ground fault detection circuitry.
Is the HOM115EPD suitable for HVAC applications?
Yes, this breaker is UL listed and HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment that requires HACR type circuit breakers.
Can this breaker be used to meet NEC requirements for bathroom or kitchen receptacles?
No. The National Electrical Code requires Class A GFCI protection with a 4mA to 6mA trip threshold for personnel in wet areas. The 30mA threshold of this EPD breaker is strictly for equipment protection.
Does this breaker provide arc fault protection?
No, the HOM115EPD provides standard thermal magnetic overcurrent protection and 30mA ground fault equipment protection. It does not include AFCI capabilities.
How do I verify the equipment protection is working after installation?
Energize the panel and press the test button on the breaker. The breaker should trip immediately. If it does not trip, or if it will not reset after tripping, there may be a wiring issue or a persistent ground fault on the circuit.
