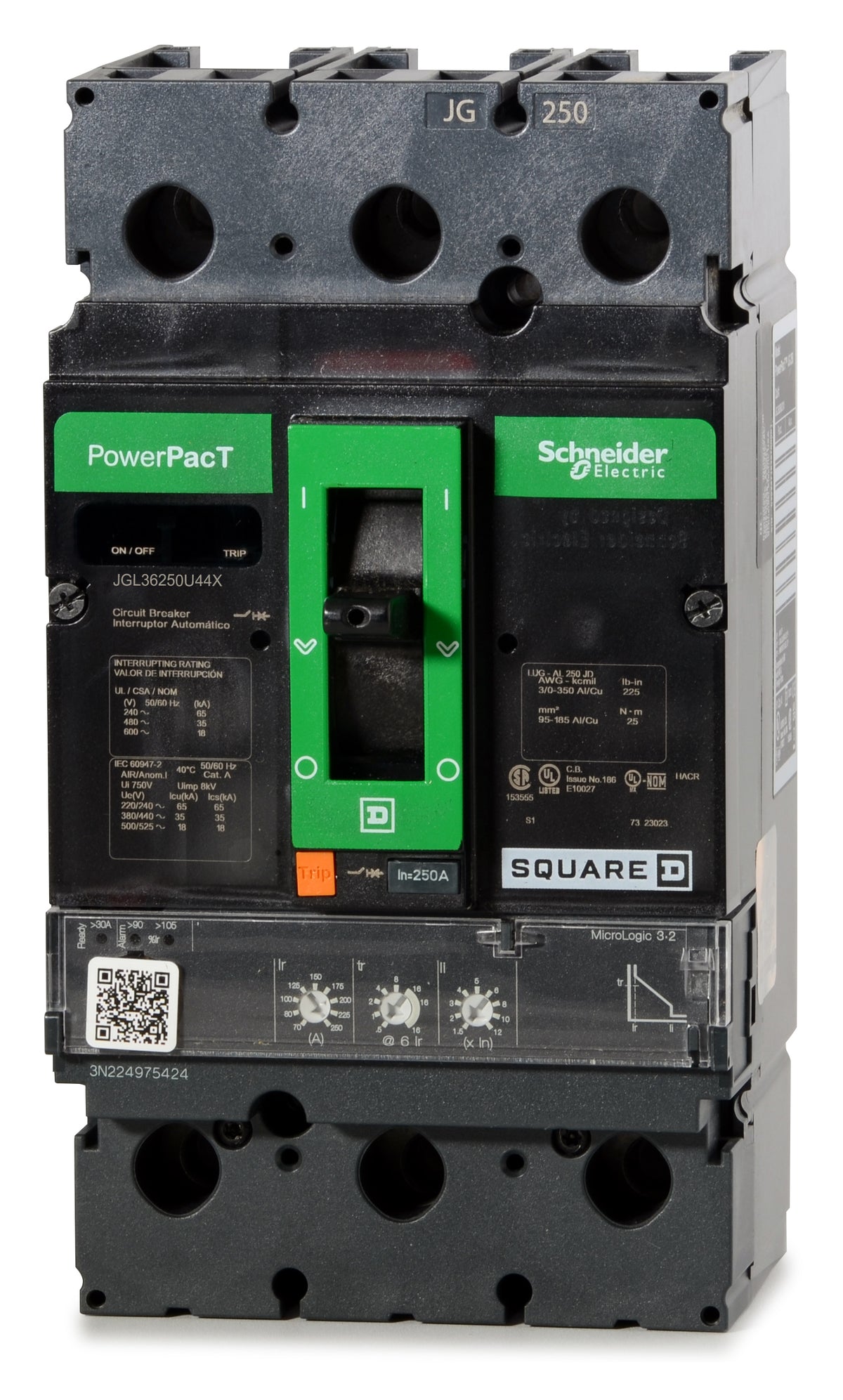

Square D JGL36250U44X Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Square D
JGL36250U44X
Molded Case Circuit Breaker
Brand
Square D
SKU
JGL36250U44X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JGL36250U44X - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JGL36250U44X - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JGL36250U44X |
| Series | JGL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D J-Frame Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Motor Operator, Rotary Handle, Communication Module |
|---|---|
| Accessories | Micrologic 6.2 A Trip Unit (Factory Installed) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Reverse Feed, Double-Break Rotary Contact Structure, True RMS Sensing |
