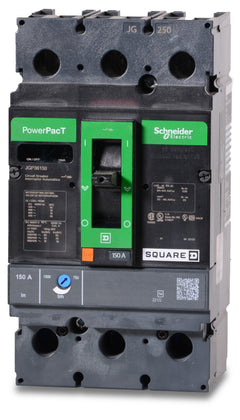

Square D JGP36175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Square D
JGP36175
Molded Case Circuit Breaker
Brand
Square D
SKU
JGP36175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JGP36175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial environments, the JGP36175 is a 3-pole, 175A MCCB from Square D's PowerPacT J-Frame family. It provides long-time and instantaneous (LI) protection for commercial systems. This unit-mount breaker installs into Square D NF and NQ panelboards, QED switchboards, and control panels. It accepts 4 AWG to 4/0 AWG wire via standard lugs. Featuring a 65kAIC rating at 240V, this current-limiting breaker includes a Visi-Trip indicator for quick status checks.Specifications
| Brand | Square D |
|---|---|
| Series | JGP |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | JGP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Square D NQ Panelboards, Square D QED Switchboards, Industrial Control Panels |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Lug Kit (Load Side), Terminal Nut Kit (Line Side) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UKCA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, 80% Rated, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
7 answersWhich enclosures and panelboards are compatible with the JGP36175?
This unit-mount breaker is designed for installation in Square D NF and NQ panelboards, QED switchboards, and custom industrial control panels.
What are the wire size limits and lug torque specs for the JGP36175?
The standard lugs accept 4 AWG to 4/0 AWG aluminum or copper wire. The required tightening torque for these standard lugs is 225 lb-in (25 Nm) using a 5/16-inch hex bit.
Does the JGP36175 come with lugs on both the line and load sides?
No. The P in the JGP part number indicates it is configured with terminal nuts on the line side (ON end) and standard lugs on the load side (OFF end). If your installation requires lugs on both ends, you will need to install a separate line-side lug kit or source the equivalent JGL variant.
How does the adjustable magnetic trip function work on this breaker?
The JGP36175 features a thermal-magnetic trip unit with a fixed thermal element for overload protection and an adjustable magnetic element for short circuits. The magnetic trip range can be dialed from 875A to 1750A to coordinate with your system fault current requirements.
What does the G in the JGP36175 part number indicate?
The G designates the breaker's interrupting capacity tier within the PowerPacT J-Frame family. It signifies a maximum fault current rating of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC.
How is the JGP36175 physically mounted in a panel?
This is a unit-mount, bolt-on circuit breaker. It fastens directly to the panel or backpan using mounting screws and hard-wired connections, unlike I-Line variants that plug directly into a busbar.
Does this breaker include a push-to-trip feature for testing?
Yes, all PowerPacT J-Frame circuit breakers include an integral push-to-trip button on the front cover. This allows you to manually trip the breaker to verify the mechanical operation of the trip mechanism during routine maintenance.
