Square D KH26100AB Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Quantity

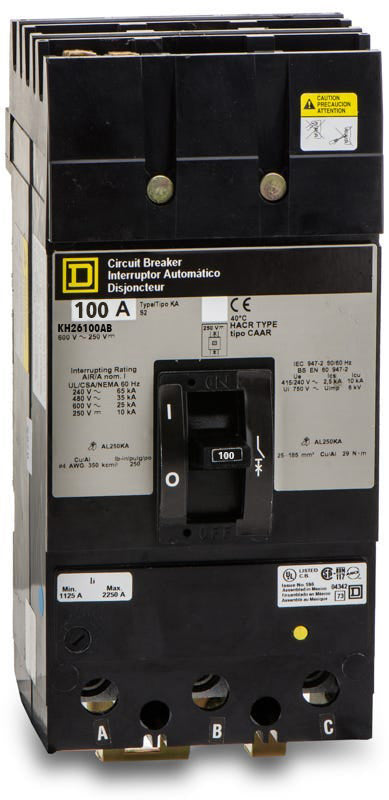

Square D KH26100AB - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for robust power distribution, the Square D KH26100AB is a 2-pole, 100A molded case circuit breaker from the legacy K-Frame series. It delivers reliable thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This unit mounts into Square D I-Line panelboards and switchboards. As a legacy component, it maintains existing systems and is officially replaced by the HGA261001 model. Featuring an AB phase connection, it is rated 35kAIC at 480VAC and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | KH26100AB |
| Series | KH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (AL250KA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat type of panelboards accept the Square D KH26100AB?
This breaker is designed specifically for installation in Square D I-Line panelboards and switchboards.
What does the AB suffix in the KH26100AB catalog number indicate?
The AB designates the phase connection. This specific breaker is configured to connect to the A and B phases on the I-Line bus.
What wire sizes and materials are accepted by the lugs on the KH26100AB?
The included lugs accept either aluminum or copper conductors ranging from 4 AWG to 350 kcmil.
How is the trip unit configured on this K-Frame breaker?
It features a thermal magnetic trip unit with long-time and instantaneous functions. The thermal protection is fixed, while the magnetic instantaneous trip setting is adjustable.
Is the KH26100AB a current production model?
The KH26100AB is a legacy K-Frame molded case circuit breaker. For modern panel upgrades, Square D officially replaces this unit with the PowerPact H-Frame series, specifically catalog number HGA261001.
How does this breaker mount to the busbar?
It utilizes an I-Line style plug-in connection. The breaker jaws clamp directly onto the I-Line bus assembly, eliminating the need for bolt-on bus connections.
