Square D LJM36400U31X 3 Pole Circuit Breaker
Re-Certified
Quantity
Quantity
Square D LJM36400U31X 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LJM36400U31X |
| Series | PowerPact L |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Amperage Range | 125-400A |
|---|
| Frame Type | L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 2x AWG 2/0 to 500KCmil, Al/Cu |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lug Kits, Terminal Shields, Padlock Attachment |
|---|---|
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, True RMS Sensing, 80% Rated, Mercury Free, RoHS Compliant, Visual Trip Indicator |
Quantity
Square D LJM36400U31X 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | PowerPact L |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Amperage Range | 125-400A |
|---|
| Frame Type | L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 2x AWG 2/0 to 500KCmil, Al/Cu |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lug Kits, Terminal Shields, Padlock Attachment |
|---|---|
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, True RMS Sensing, 80% Rated, Mercury Free, RoHS Compliant, Visual Trip Indicator |
Similar Items
400A 3 Pole Molded Case Circuit Breaker
Schneider ElectricLJA36400U43X
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description

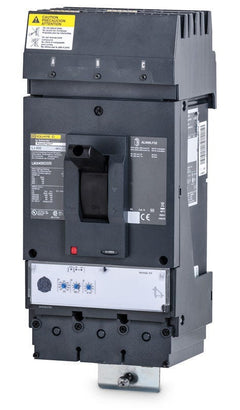

Square D LJM36400U31X 3 Pole Circuit Breaker
The Square D LJM36400U31X is a 3 Pole solid state molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The LJM36400U31X has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Series | PowerPact L |
| Amperage | 400 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Amperage Range | 125-400A |
|---|
| Frame Type | L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Control Panels |
| Wire Gauge | 2x AWG 2/0 to 500KCmil, Al/Cu |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Lug Kits, Terminal Shields, Padlock Attachment |
|---|---|
| Standards | RoHS, REACh, HACR |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, True RMS Sensing, 80% Rated, Mercury Free, RoHS Compliant, Visual Trip Indicator |
Product FAQs
7 answersWhat type of enclosures or panels is the LJM36400U31X compatible with?
This unit-mount PowerPact L-frame breaker is designed for use in Square D switchboards, motor control centers, and industrial control panels. It features a bolt-on connection.
What does the U31X signify in the LJM36400U31X catalog number?
The U31X suffix indicates the breaker is equipped with a MicroLogic 3.3 electronic trip unit. This provides adjustable Long-Time and Instantaneous (LI) trip functions for precise overcurrent and short-circuit protection.
What is the recommended tightening torque for the standard mechanical lugs?
The standard mechanical lugs for this 400A L-frame breaker require a tightening torque of 442 lb-in (50 N.m).
Can the LJM36400U31X be reverse fed?
Yes. Standard unit-mount PowerPact L-frame breakers with electronic trip units have factory-sealed trip units and are suitable for reverse feeding.
What is the I-Line plug-on equivalent for this unit-mount breaker?
The I-Line equivalent is the LJA36400U31X, which shares the same 400A rating, 65kA at 480V interrupting capacity, and MicroLogic 3.3 trip unit, but features a plug-on line connection for Square D I-Line panelboards.
Does the LJM36400U31X provide ground fault protection?
No. The MicroLogic 3.3 trip unit only provides Long-Time and Instantaneous (LI) protection. For equipment ground fault protection, a breaker with a MicroLogic 6.3 (LSIG) trip unit is required.
Is the LJM36400U31X rated for 100% continuous current?
No, this standard L-frame breaker is rated for 80% continuous current.
