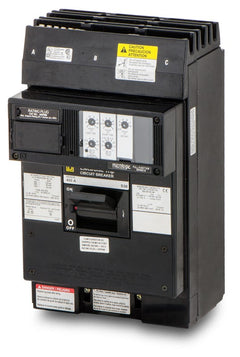

Square D LX36100G Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
LX36100G
Molded Case Circuit Breaker
Brand
Square D
SKU
LX36100G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LX36100G - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
350A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Built to handle complex coordination requirements, this 100A legacy L-Frame circuit breaker incorporates comprehensive solid-state protection. It utilizes an I-Line plug-on connection for quick integration into Square D commercial panelboards and switchboards. The advanced Micrologic trip unit features adjustable long-time, short-time, instantaneous, and ground fault (LSIG) settings. For modern upgrades, this unit is typically replaced by PowerPacT L-Frame models with an HNM1BL filler plate.Specifications
| Brand | Square D |
|---|---|
| Series | LX |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC |
| Amperage Range | 50-100A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (1) 1 AWG-600 kcmil or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing |
Product FAQs
5 answersHow does the LX36100G connect to the power source?
It utilizes an I-Line style plug-in connection on the line side, which mounts directly onto the busbars of Square D I-Line panelboards and switchboards. The load side uses standard mechanical lugs for wire termination.
What does the "G" in the LX36100G catalog number signify?
The "G" indicates that the breaker's Micrologic electronic trip unit includes integrated ground-fault protection. This completes the LSIG trip profile, which also covers long-time, short-time, and instantaneous fault conditions.
Are the load lugs on the LX36100G rated for dual-wire installations?
Yes, the factory lugs can accept two conductors per phase if the wire size is between 1 AWG and 250 kcmil. For single-wire installations, the lugs accept conductors up to 600 kcmil. Both copper and aluminum wires are permitted.
Can the trip settings on the LX36100G be adjusted in the field?
Yes, the solid-state Micrologic trip unit is fully adjustable. Electricians can dial in specific pickup and delay settings for the long-time, short-time, instantaneous, and ground-fault functions to ensure proper system coordination.
Is the LX36100G part of a current Square D product line?
The LX36100G is part of the legacy Micrologic L-frame series. While it is considered a legacy frame by Schneider Electric, it remains a direct replacement option for existing I-Line panelboards that require a 100A LSIG breaker.
