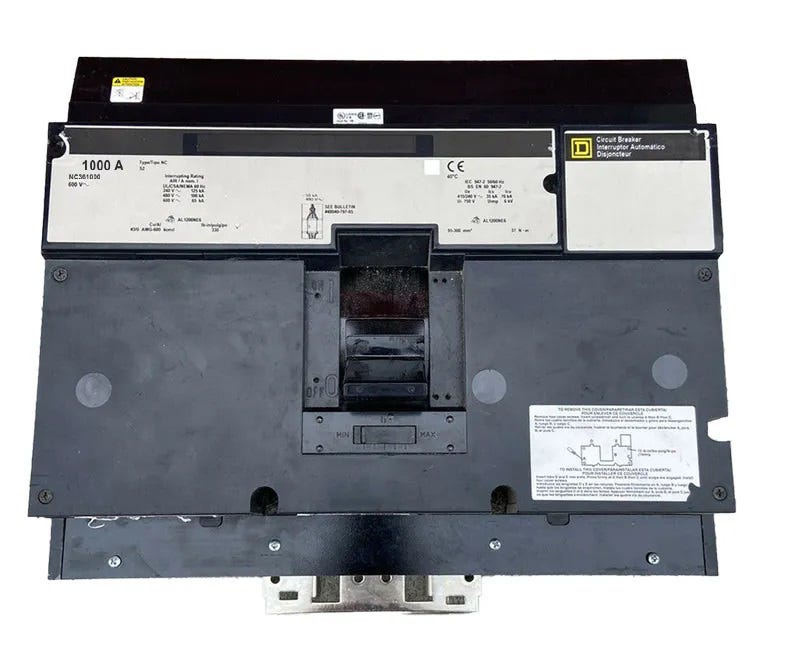

Square D NC361000 Molded Case Circuit Breaker
- 1000A
- 3 Pole
- I-Line
Quantity
Square D NC361000 - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D NC361000 - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | NC361000 |
| Series | NC |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG-600 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity |
Quantity
Square D NC361000 - 1000A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | NC361000 |
| Series | NC |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG-600 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity |
Description
Engineered for high-capacity power distribution, the NC361000 is a 1000A molded case circuit breaker. It utilizes thermal-magnetic technology for dependable LI protection. This component plugs into Square D I-Line panelboards and switchboards. It serves as a legacy solution, with modern replacements available in the PowerPacT P-Frame series. Boasting a 100kA rating at 480VAC, it safely clears severe faults. The adjustable magnetic trip allows customization of the instantaneous response.Specifications
| Brand | Square D |
|---|---|
| Part Number | NC361000 |
| Series | NC |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Frame Type | NC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | (4) 3/0 AWG-600 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity |
Product FAQs
4 answersWhat equipment is the NC361000 designed to be installed in?
This breaker features an I-Line style plug-in connection and is specifically designed for use in Square D I-Line panelboards and switchboards. It is not compatible with standard unit-mount enclosures or QO-style load centers.
Is the Square D NC361000 still manufactured, or is there a direct replacement?
The NC361000 is a legacy N-frame molded case circuit breaker. Square D has transitioned to the PowerPact P-Frame series, such as the PJA36100, for modern replacements in 1000A I-Line applications.
How does the adjustable magnetic trip function benefit the NC361000?
While the thermal element provides fixed long-time overload protection, the adjustable magnetic element allows you to fine-tune the instantaneous short-circuit response. This adjustability helps electricians properly coordinate the breaker with downstream protective devices.
What are the lug wire size requirements for the NC361000?
The breaker is equipped with multi-barrel lugs that accept four 3/0 AWG to 600 kcmil aluminum or copper conductors per phase, accommodating the large parallel wire runs typical of 1000A services.
