Square D QJA222001 Molded Case Circuit Breaker
- 200A
- 2 Pole
- I-Line
Square D
QJA222001
Molded Case Circuit Breaker
Brand
Square D
SKU
QJA222001
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QJA222001 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description

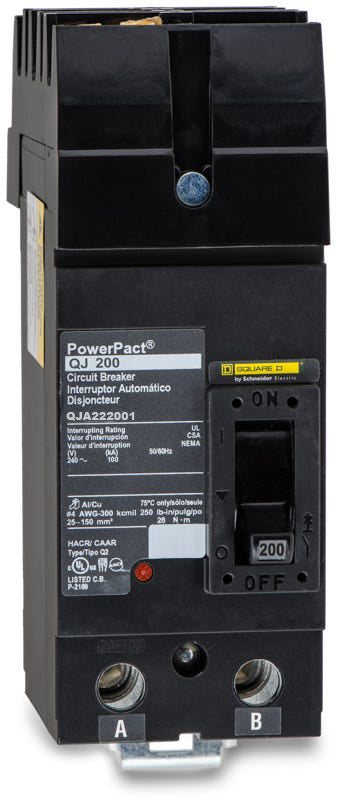

Built for heavy-duty industrial applications, the Square D QJA222001 is a 2-pole, 200A PowerPacT Q-Frame molded case circuit breaker. It delivers dependable thermal magnetic protection for 240VAC systems. This unit installs into Square D I-Line panelboards using an AB phase connection and serves as a drop-in replacement for discontinued Q22200 models. With a high interrupting capacity of 100kAIC, it features fixed LI trip functions, load side lugs, and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QJA222001 |
| Series | QJA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | QJA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AB, High Interrupting Capacity |
Product FAQs
7 answersWhat does the "1" at the end of the QJA222001 catalog number signify?
The "1" indicates that this 2-pole I-Line circuit breaker is factory-configured for an AB phase connection on the panelboard bus.
Can the QJA222001 replace older Square D Q2 series breakers?
Yes, the PowerPacT Q-frame is a direct drop-in replacement for discontinued Q2 series circuit breakers, such as the Q22200, in I-Line panelboards.
What does the "J" in the QJA frame designation represent?
The "J" indicates the interrupting rating tier for the PowerPacT Q-frame series. A J-tier breaker provides a 100kAIC rating at 240VAC.
What is the recommended lug torque for the load side terminals on this 200A breaker?
The load side lugs for the 4 AWG to 300 kcmil conductors should be torqued to 250 lb-in (28 N-m).
How does the I-Line connection work on the QJA222001?
The breaker features a plug-on jaw configuration on the line side that snaps directly onto the I-Line bus, while the load side utilizes standard mechanical box lugs for cable connections.
How can I visually verify if the QJA222001 has tripped?
When a fault occurs, the toggle handle snaps to a center tripped position between ON and OFF, providing clear visual indication that the breaker has operated.
Does this breaker include a push-to-trip feature for safety testing?
Yes, PowerPacT Q-frame circuit breakers feature an integral push-to-trip button on the cover, allowing you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
