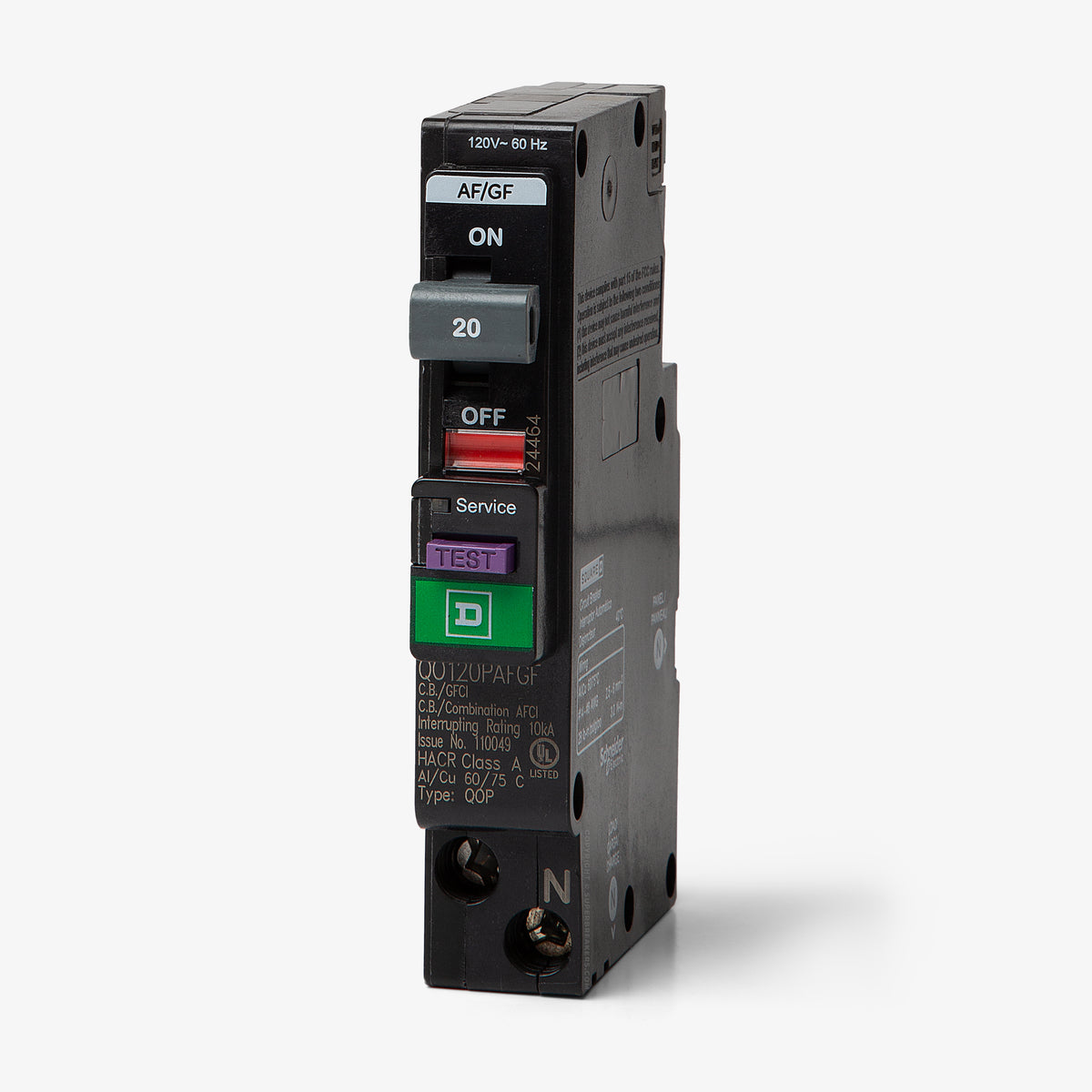

Square D QO120PAFGF Dual Function Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Square D
QO120PAFGF
Dual Function Miniature Circuit Breaker
Brand
Square D
SKU
QO120PAFGF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO120PAFGF - 20A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items
20A Dual Function Miniature Circuit Breaker
15A Dual Function Miniature Circuit Breaker
15A Dual Function Miniature Circuit Breaker
Description
Built for modern electrical codes, this 20-amp dual-function breaker delivers combination arc-fault and ground-fault protection. It operates at 120VAC and is suitable for both residential and commercial applications. This specific model features a plug-on neutral design, eliminating the need for pigtail wiring. It installs exclusively into QO Plug-On Neutral load centers and replaces the older QO120PDF model. With a 10 kAIC rating, it includes Time Saver Diagnostics to help identify faults.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO120PAFGF |
| Series | QO |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Plug-On Neutral Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Time Saver Diagnostics (TSD) LED Indicator |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 1699, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersDo I need a specific panel to use the QO120PAFGF breaker?
Yes. This plug-on neutral breaker requires a Square D QO Plug-On Neutral load center. It cannot be used in Homeline panels or older standard QO panels that rely on pigtail neutral connections.
What is the difference between the QO120PAFGF and the QO120DF?
The QO120PAFGF utilizes a plug-on neutral connection for compatible panels, while the QO120DF features a traditional coiled pigtail neutral wire designed for legacy QO load centers.
Did the QO120PAFGF replace an older Square D part number?
Yes. Square D updated their catalog nomenclature, and the QO120PAFGF directly replaces the older QO120PDF. Both numbers represent the same 20A, 1-pole plug-on neutral dual-function breaker.
What specific protection levels does this dual-function breaker provide?
It provides both Combination Arc-Fault (CAFI) protection to mitigate electrical fire risks and Class A 5mA Ground-Fault (GFCI) protection for personnel safety, meeting NEC requirements for areas requiring dual protection.
How does the plug-on neutral connection affect panel wiring?

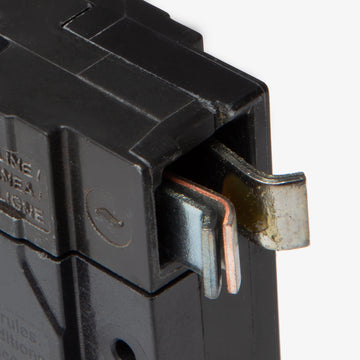

The breaker clips directly onto the load center neutral bar, eliminating the need to land a pigtail wire. This significantly reduces gutter clutter and speeds up branch circuit wiring during panel trim-out.
Does this breaker include diagnostic features for troubleshooting faults?

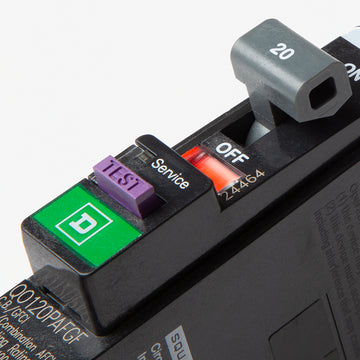

Yes. It features Square D Time Saver Diagnostics. By using the push-to-test sequence, an electrician can quickly identify whether a trip was caused by an arc fault, a ground fault, or a standard overload.
