Square D QOB1201044 3 Pole Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
Square D QOB1201044 3 Pole Circuit Breaker
New
Quantity
Quantity
Square D QOB1201044 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (12-24V AC/DC) |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, SWD Rated |
Quantity
Square D QOB1201044 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (12-24V AC/DC) |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, SWD Rated |
Description

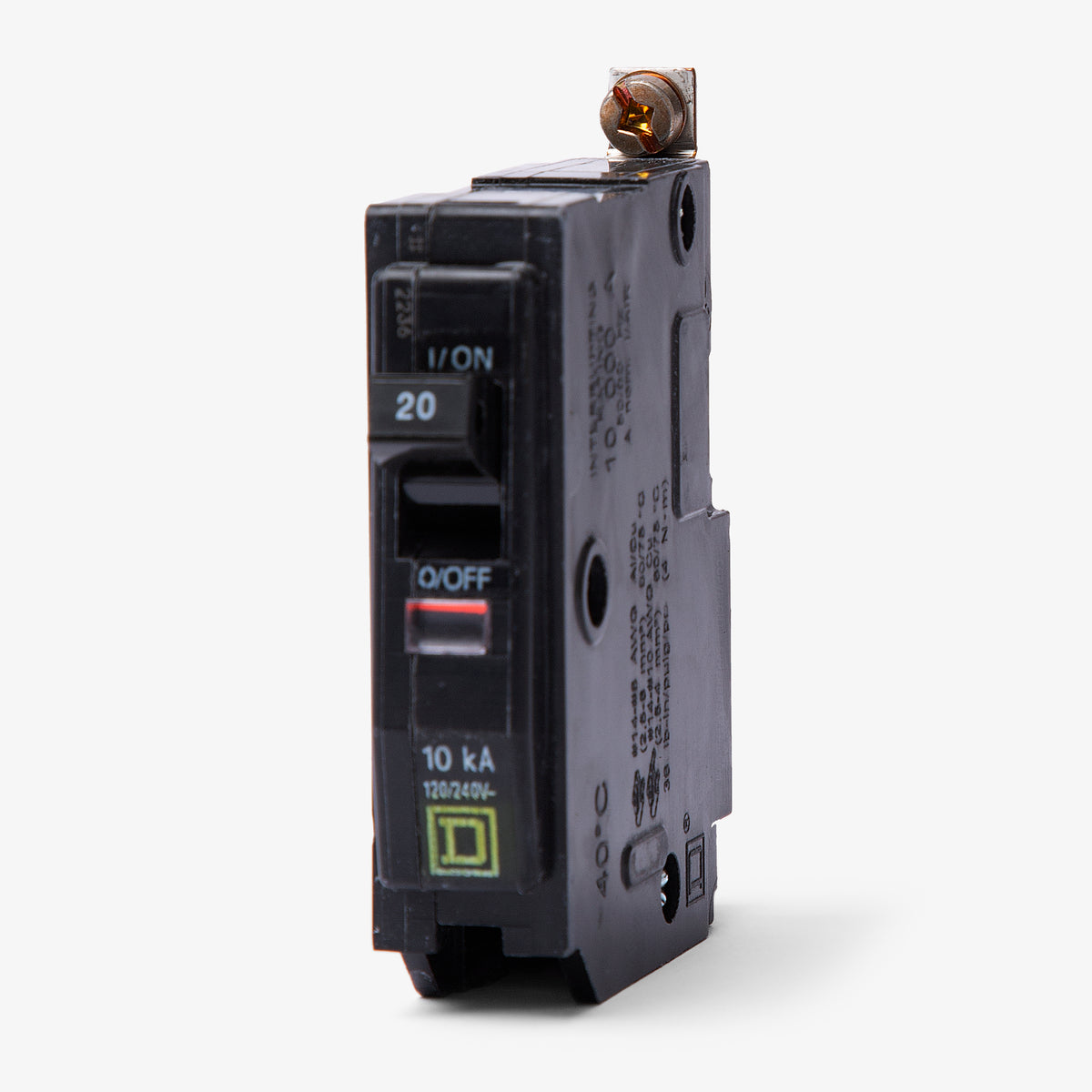

Square D QOB1201044 1 Pole Circuit Breaker
The Square D QOB1201044 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120/240VAC. The QOB1201044 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (12-24V AC/DC) |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, SWD Rated |
Product FAQs
5 answersWhich panelboards are compatible with the QOB1201044 circuit breaker?
This breaker is designed for use in Square D NQ and NQOD panelboards. Because it features a bolt-on connection, it secures directly to the panelboard busbar and cannot be used in standard QO load centers that require plug-on breakers.
What does the 1044 suffix indicate on this Square D breaker?
The 1044 suffix designates that the breaker is factory-equipped with a 12V to 24V AC/DC shunt trip accessory, which allows the breaker to be opened from a remote location.

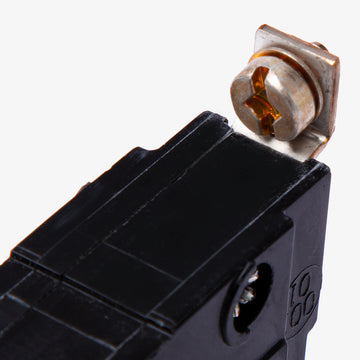

What are the wire size and torque specifications for the terminals?
The pressure plate terminals accept 14 AWG to 8 AWG aluminum or copper conductors and should be torqued to 35.4 lb-in (4 N.m) for a secure and compliant connection.
How does the thermal-magnetic trip mechanism function on this breaker?
The thermal-magnetic technology provides dual protection. The thermal component offers a long-time delay to prevent overheating from continuous overloads, while the magnetic component provides instantaneous tripping to quickly clear short circuits.
Is the QOB1201044 rated for use with HVAC equipment or switching applications?
Yes, this breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also Switching Duty rated, meaning it can be used to safely switch 120V fluorescent lighting loads on and off.
