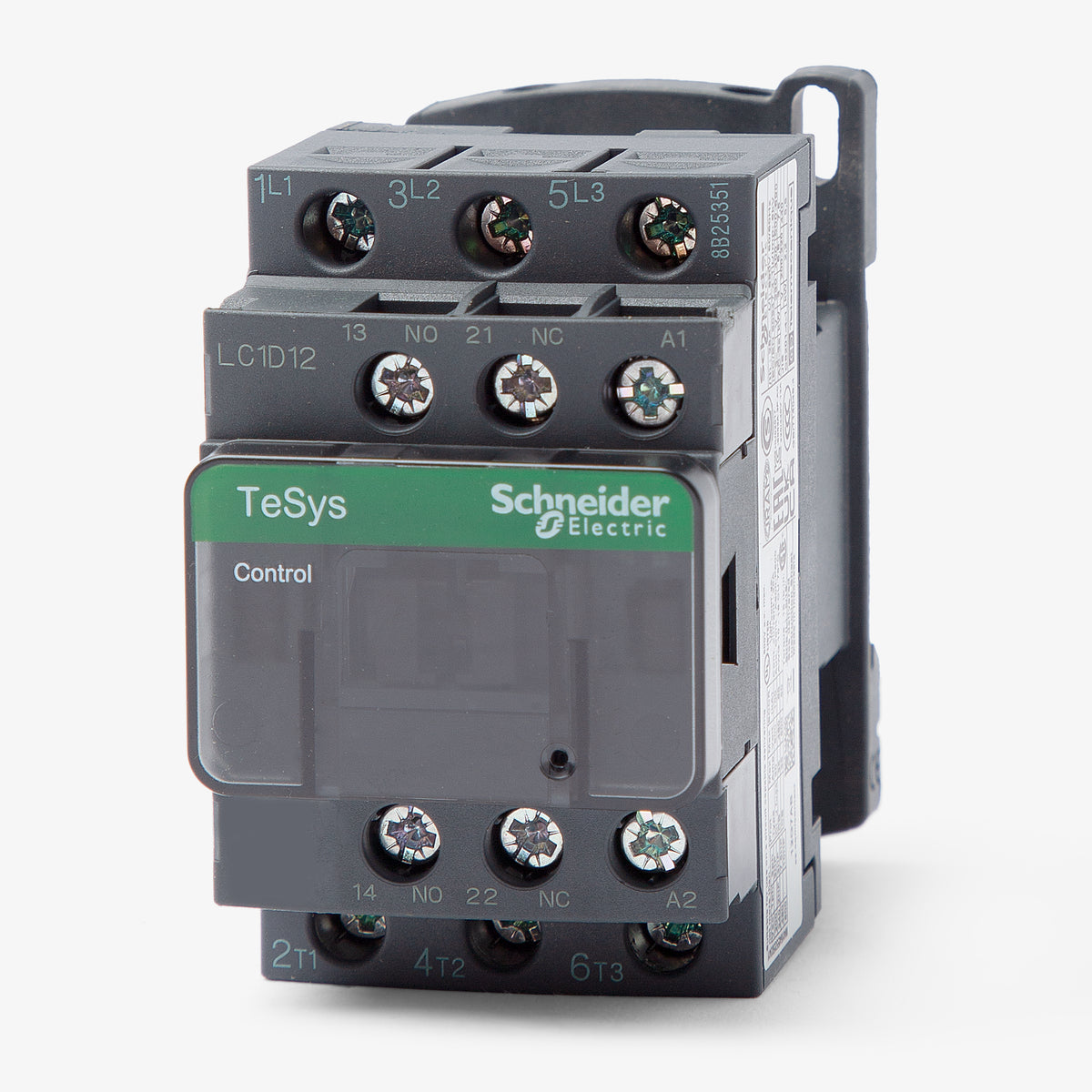

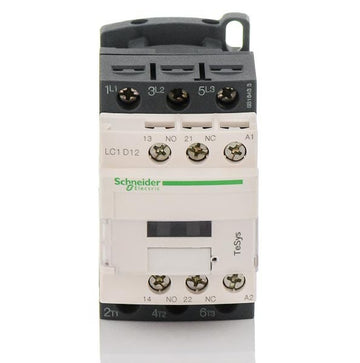

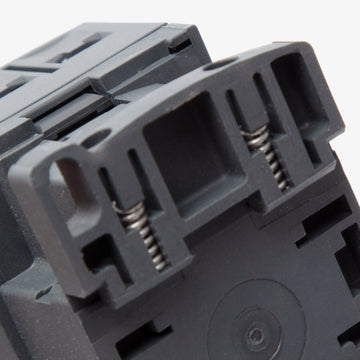

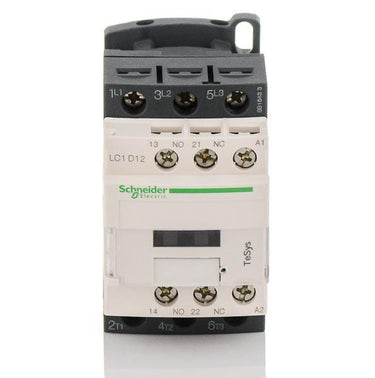

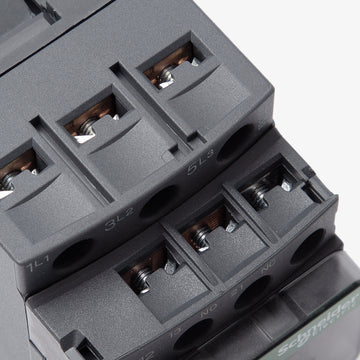

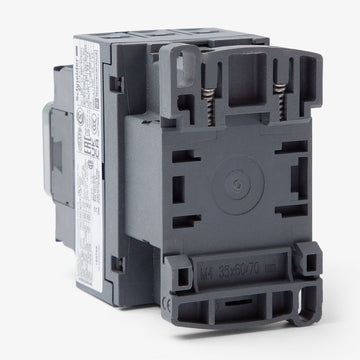

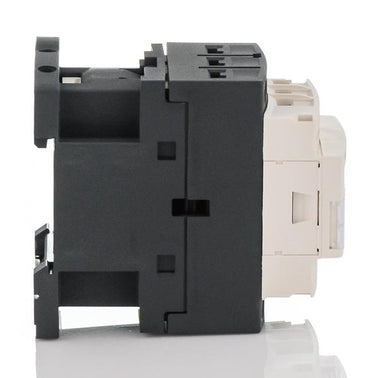

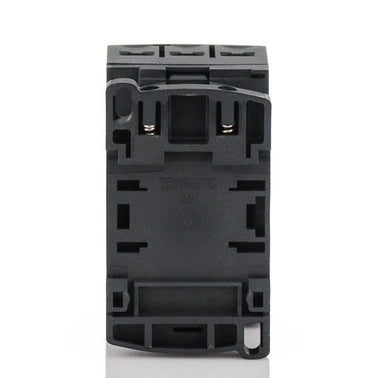

Schneider Electric LC1D12G7 Contactor
The Schneider Electric LC1D12G7 is a 3 Pole contactor with a current rating of 12 Amps and a voltage rating of 600/690VAC, 300VDC. It has a coil volts of 120VAC at 50/60Hz. The LC1D12G7 has a screw clamp terminal connection and it is used for LC1-D series motor control systems.
Specifications
| Amperage | 12 A |
|---|---|
| Coil Volts | 120VAC at 50/60Hz |
| Poles | 3 |
| Contact Configuration | 1NO, 1NC |
| Voltage | 600/690VAC, 300VDC |
|---|---|
| Phase | 3 |
| Mounting Type | Din Rail |
|---|---|
| Terminal Connection | Screw Clamp |
| Length (in) | 3.39 |
| Width (in) | 1.77 |
| Height (in) | 3.03 |
| For Use With | LC1-D Series Motor Control Systems |
| Action | Non-Reversing |
|---|
| Approval | UL, CSA, EN, IEC, CCC, Marine, EAC, UKCA, EAC, CB, BV, DNV, GL, GOST, LROS, RINA |
|---|---|
| Standards | RoHS, REACh |
| Temperature Rating | -40 to 140 °F |
| Series | LC1 |
|---|---|
| Brand | Schneider Electric |
| MPN | LC1D12G7 |
| UPC | 785901207047 |
