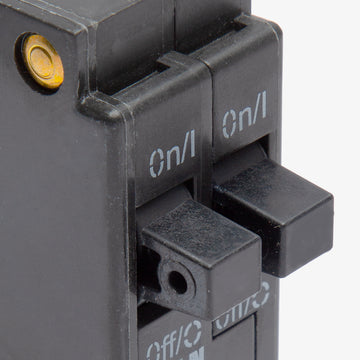

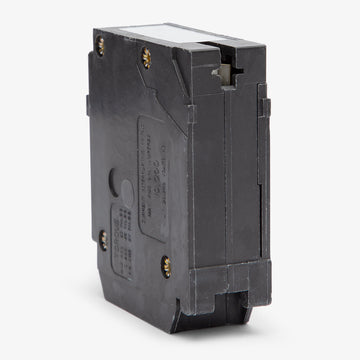

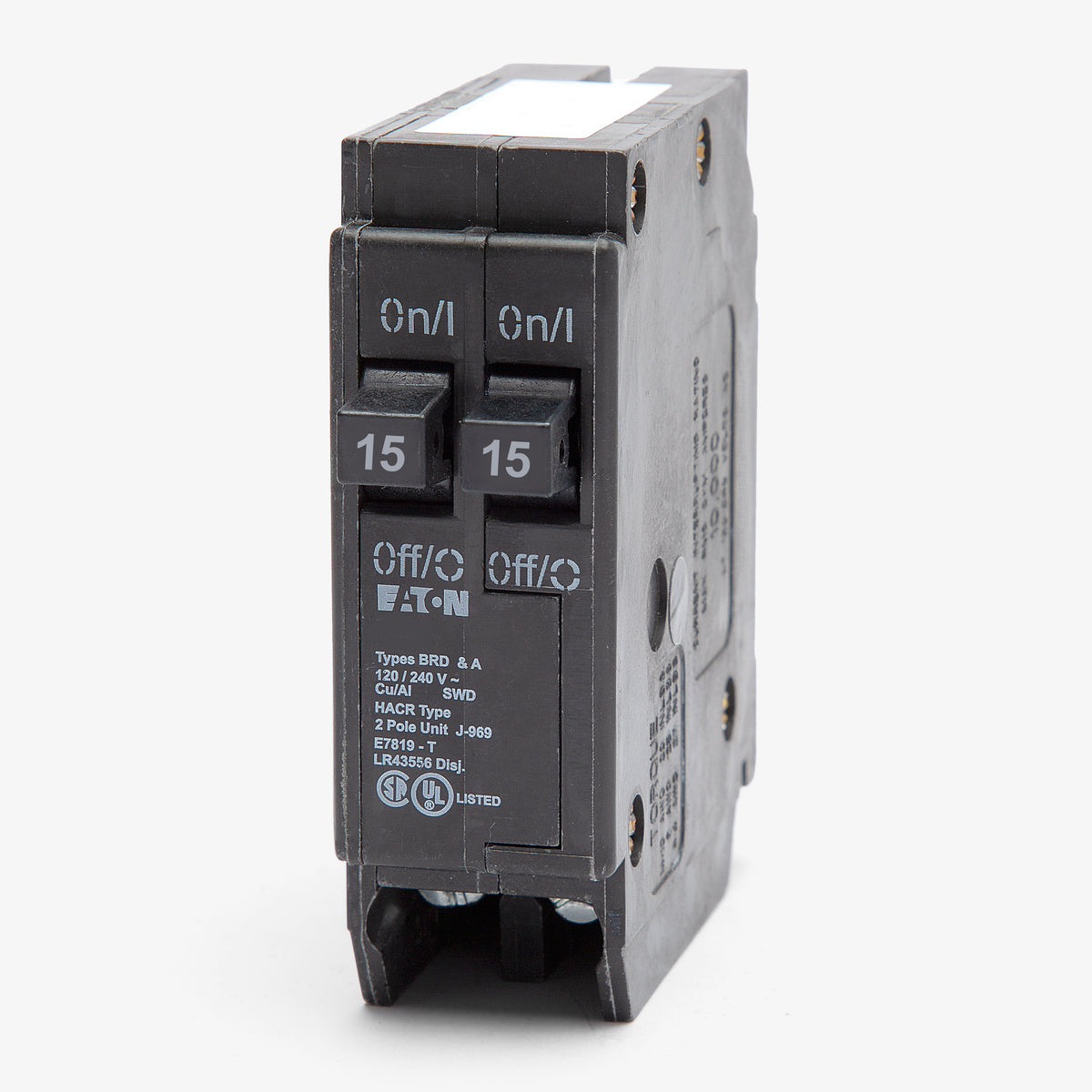

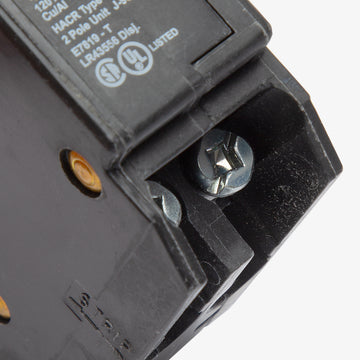

Eaton / Challenger A1515 15/15A Tandem Miniature Circuit Breaker
- 15/15A
- 1 Pole
- Plug-On
Quantity
Eaton / Challenger A1515 - 15/15A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Challenger A1515 - 15/15A Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Challenger |
|---|---|
| Part Number | A1515 |
| Series | Type A |
| Amperage | 15/15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Load Centers, Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | A1515 |
| Standards | HACR, SWD, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tandem, HACR Rated, SWD Rated |
Quantity
Eaton / Challenger A1515 - 15/15A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Challenger |
|---|---|
| Series | Type A |
| Amperage | 15/15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Load Centers, Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | A1515 |
| Standards | HACR, SWD, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tandem, HACR Rated, SWD Rated |
Description
Built to maximize capacity in older residential systems, the Eaton A1515 tandem breaker provides two 15A circuits within a single one-inch space. This non-CTL plug-on breaker is engineered for legacy Challenger and Type BR load centers. Lacking a rejection clip, it fits into older panels and serves as an exact cross-reference for the modern BR1515. Delivering 10 kAIC at 120VAC, this thermal-magnetic unit is HACR and SWD rated for versatile home applications.Specifications
| Brand | Eaton / Challenger |
|---|---|
| Series | Type A |
| Amperage | 15/15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Load Centers, Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | A1515 |
| Standards | HACR, SWD, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Tandem, HACR Rated, SWD Rated |
Product FAQs
5 answersWhat is the modern cross-reference for the Challenger A1515?
Eaton manufactures the direct, UL-approved replacements for legacy Challenger breakers. The Eaton BR1515 is the exact non-CTL replacement, while the BD1515 is the CTL version if your panel requires rejection clips.
Are Challenger A1515 breakers compatible with modern Eaton panels?
Yes. The A1515 is designed for use in both legacy Challenger load centers and modern Eaton Type BR load centers.
How much panel space does the A1515 tandem breaker require?
The A1515 is a twin breaker that provides two independent 15-amp circuits while occupying only a single one-inch pole space on the bus bar.
Is the A1515 a CTL or non-CTL circuit breaker?
The A1515 is a non-CTL breaker. It lacks a rejection clip, allowing it to be installed in older legacy panels that do not have Circuit Total Limiting slot restrictions.
Does the A1515 provide AFCI or GFCI protection?
No. The A1515 is a standard thermal-magnetic breaker that provides overload and short-circuit protection. It does not include Arc Fault or Ground Fault circuitry.
